Part Number: 67-7010-xx (xx denotes resolution and range variant)
FALCO 2 11.7
World’s safest PID technology is now even safer! FALCO has been specifically engineered to work within condensing atmospheres and extreme weather.
List of Benefits
- Detects High-Ionisation VOCs – Ideal for complex compounds like dichloromethane and formaldehyde
- MiniPID 2 11.7 eV Sensor – Trusted for stable, accurate readings over time
- Typhoon Technology – Prevents condensation inside the sensor for reliable high-humidity performance
- Fence Electrode Technology – Reduces contamination and improves sensor response
- Duty Cycle Operation – Extends lamp life while lowering energy use
- Two-Point Calibration – Easy setup, reduced cost, and minimal maintenance
- Flexible Outputs – 4–20 mA, RS485 Modbus, and two programmable relays
- OLED Display & Magnetic Interface – Easy to read and operate, even in hazardous zones
- IP65 Rated – Rugged build to withstand outdoor or industrial settings
- Certified – ATEX, IECEx, and North American certifications (TBA)
Reliable VOC detection for challenging environments

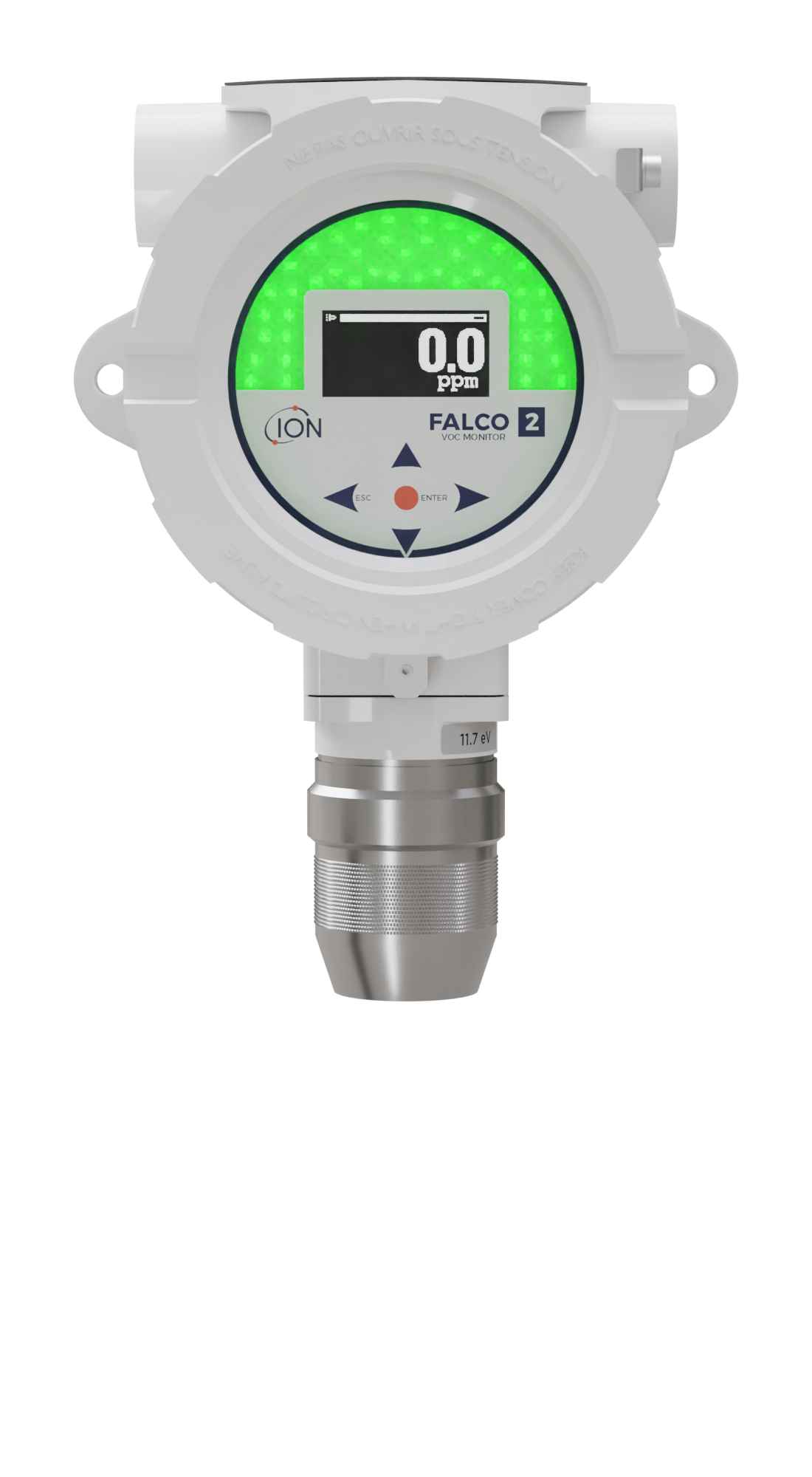

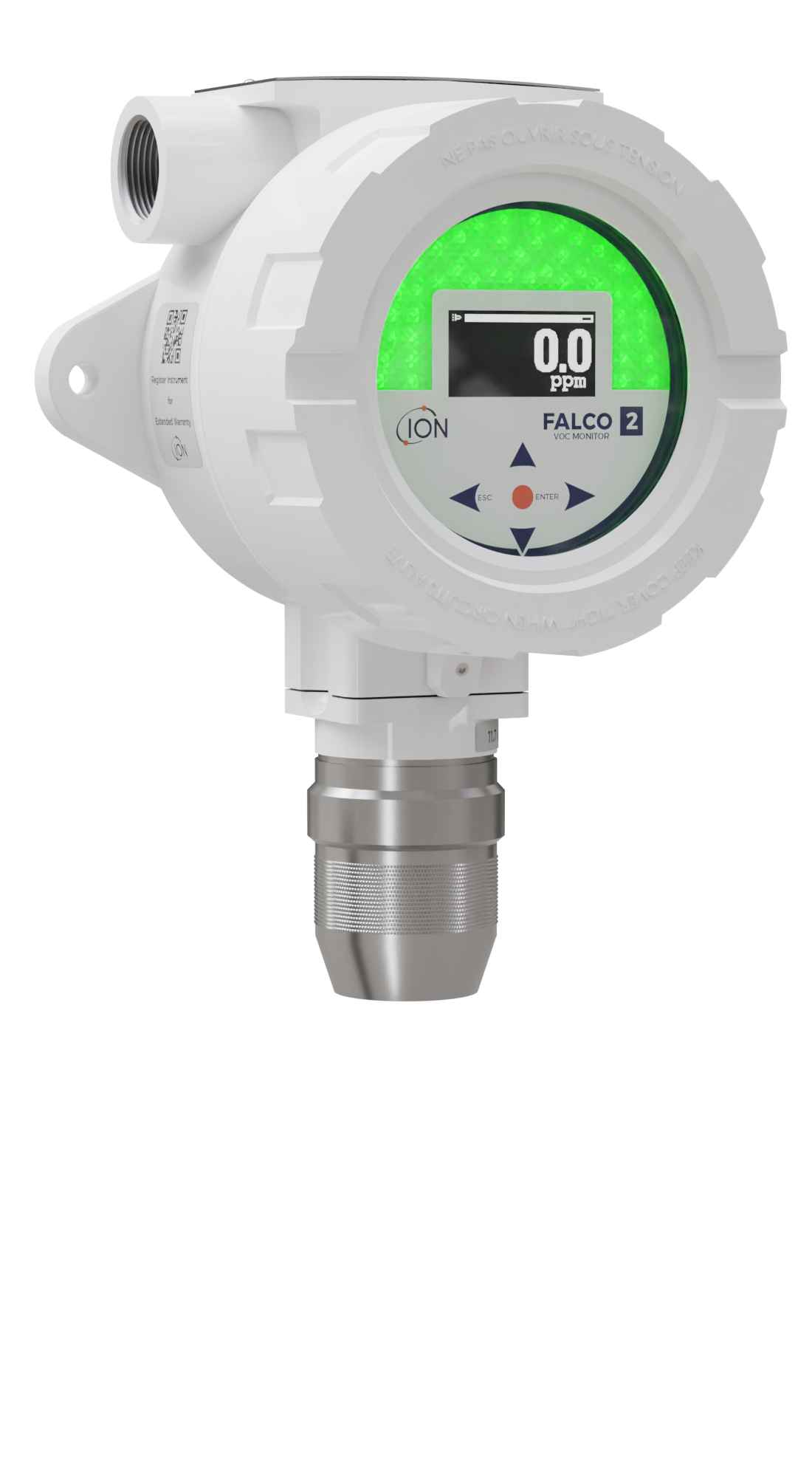

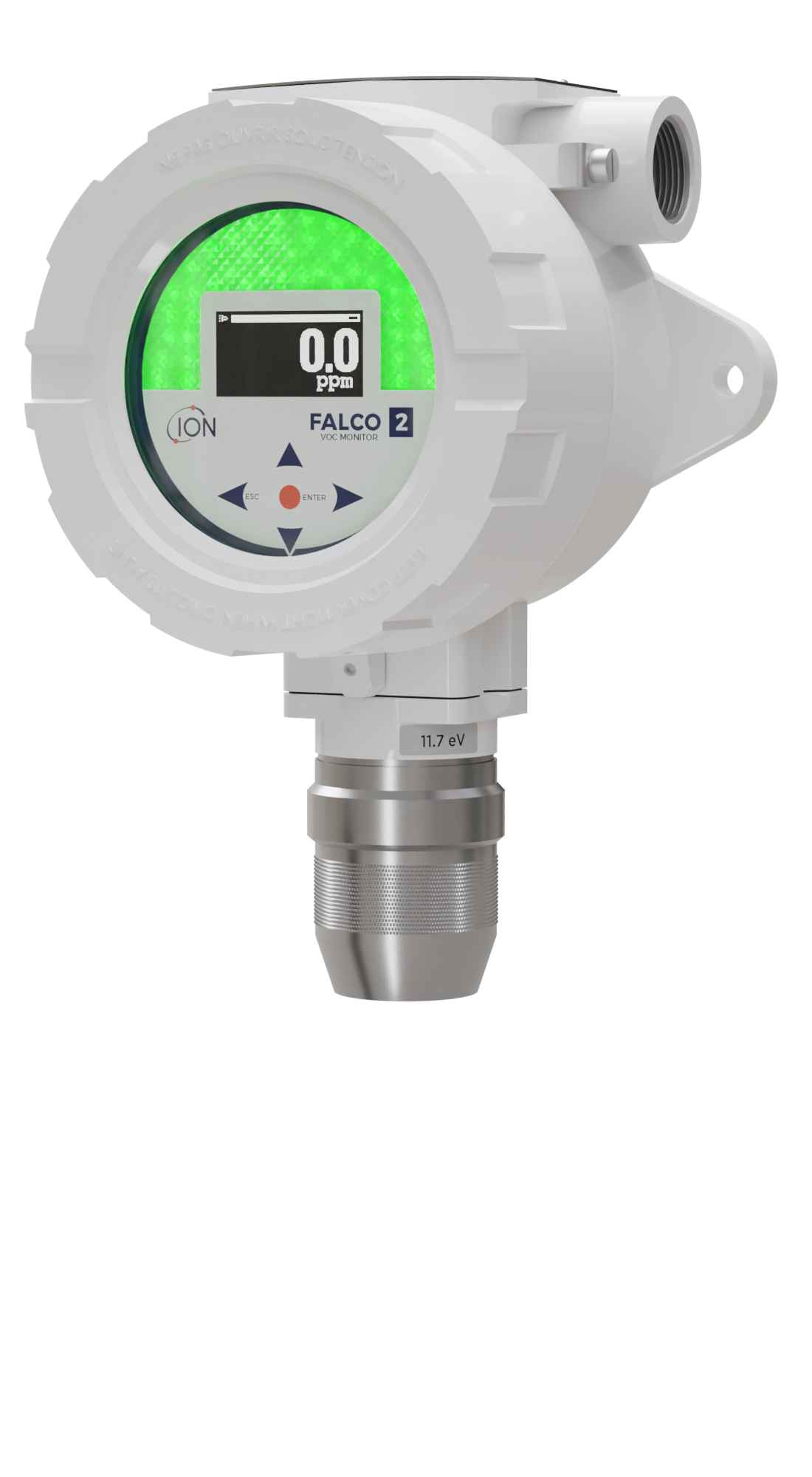

FALCO 2 11.7 is ION Science’s latest fixed VOC gas detector, built for precision monitoring in the most demanding conditions. With advanced sensor technology and a robust design, it delivers accurate, continuous detection of a wide range of volatile organic compounds (VOCs), including those with high ionisation potentials like methylene chloride and ethylene oxide.
Engineered for high humidity and harsh industrial environments, FALCO 2 11.7 combines ION Science’s patented MiniPID 2 sensor, Fence Electrode Technology, and Typhoon anti-condensation system to provide unmatched performance, reliability, and sensor longevity.
FALCO 2 11.7 is built to withstand challenging site conditions including:- Extreme temperatures
- High humidity (0–99% RH, non-condensing)
- Dust and weather exposure
- Industrial-grade installation points with ExD housing and IP65 ingress protection
- Its modular, serviceable design makes replacing lamps and filters simple, minimising downtime and extending overall service life.
| Specification | Detail Description |
|---|---|
| Sensor | Photoionisation detector with 11.7 eV lamp |
| Detection range and sensitivity | 200 ppm, 0.1 ppm |
| Response time (T90) | 60 seconds (one full cycle) |
| PID lamp lifetime | Up to 4 months from date of delivery [1][2] |
| Accuracy | ±12% or ±1 digit |
| User interface | OLED high contrast white on black |
| Screen size | 35 mm (w) x 17.5 mm (h) |
| Controls | 5 magnetic switches with LED confirmation (up, down, left, right & enter) |
| Status indicator | Tri-colour |
| Output | 4–20 mA, 2 programmable relays, RS485 Modbus |
| Operational temperature | -20°C to +50°C, 0 to 99% RH (non-condensing) |
| Storage temperature | -40°C to +60°C |
| Ingress protection | Main unit |
| Electrical | Working voltage |
| Mechanical interface | 2 x cable entry points with M25 threads (left and right) |
| Mounting points | 2 x M8 |
| Weight | 2.5 kg |
| Dimensions | 223 (h) x 192 (w) x 115 (d) mm |
| EMC | EMC Directive 2014/30/EU |
| Certification | ATEX |
| Unit warranty | 1 year (standard), 2 years (extended) |
| Lamp warranty | 3 months from date of sale by ION Science |
Falco 2 11.7 Brochure_Gastech.pdf 185.61 KB
Manual - Current versions
20170303-ionscience-falco-manual.pdf 3.04 MB
Application Notes
20180410-Ion-Science-Application-Note-TA-02-Ion-Science-PID-Response-Factors-UK-V1.10-1.pdf 1.78 MB
Approvals
20180410-Ion-Science-Falco-Certification-ATEX-15ATEX-0113X.pdf 1.06 MB
20180410-Ion-Science-Falco-Certification-IECEx_FTZU_16.0011X_0.pdf 104.58 KB
