BioHarness
Real-Time Physiological Monitor
i
This product has been discontinued and is no longer available. In many cases we can still service and calibrate it. Talk to our team about spares or alternatives.
A lightweight chest-worn strap that measures ECG and breathing rate for real-time portable physiological monitoring. Paired with a RAELink3 modem, it transmits sensor readings and GPS coordinates to ProRAE Guardian safety software.
KEY BENEFITS
- Quick assessment of health status
- Reduces risk of heat stress by adjusting work levels
- Improves team efficiency
- Enables post-event analysis
- Low life-cycle cost with no consumable components
+ more in the Description tab below
Real-Time Portable Physiological Monitoring

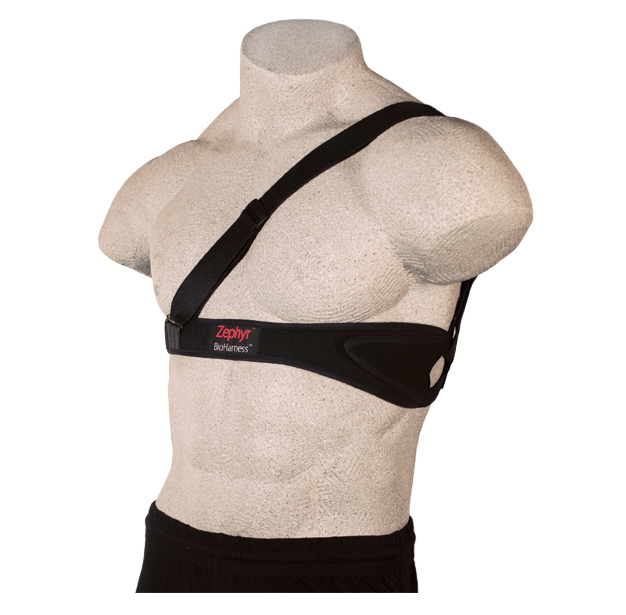

The RAE Systems BioHarness is a lightweight, chest-worn strap that incorporates ECG and breathing rate sensors for real-time physiological monitoring. It facilitates quick assessment of an individual’s health status so work levels can be modified to reduce risks such as heat stress.
The BioHarness links to a RAELink3 portable modem, whose long-range wireless radio transmits sensor readings and GPS coordinates in real time to a PC running ProRAE Guardian safety monitoring software. Readings can be viewed remotely within a two-mile radius and tracked on a local map.

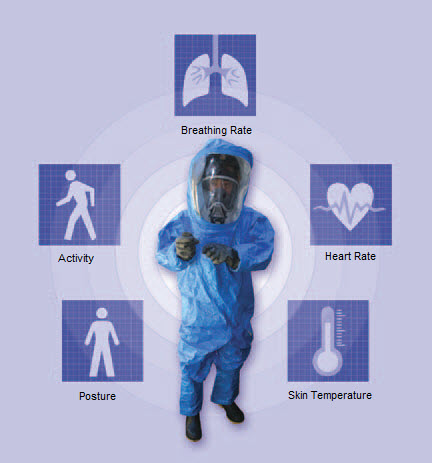

Measuring heart rate, breathing rate, temperature, posture and activity, the BioHarness pairs with other safety sensors to help detect and characterise hazardous atmospheres. Its washable conductive smart fabric has no consumable components, delivering low life-cycle cost for HazMat, confined space and clinical applications.
Benefits
- Quick assessment of health status
- Reduces risk of heat stress by adjusting work levels
- Improves team efficiency
- Enables post-event analysis
- Low life-cycle cost with no consumable components
- Measures heart rate, breathing, temperature, posture and activity
- Remote real-time viewing within a 2-mile radius
- GPS tracking on a local map
- Continuous datalogging
- Quick setup and easy to use
Sensor Module Size
76 mm x 56 mm x 16 mm
Sensor Module Weight
60 g
Strap Fabric
Washable conductive smart fabric
Operating Temperature
-30° to 60°C
Humidity
0% to 95% RH non-condensing
Battery
4.2V Li-Ion rechargeable
Run Time
Up to 8 hours
Charging Time
3 hours
IP Rating
IP-67
Wireless
Up to 2 miles (via RAELink3)
GPS Accuracy
Within 5 meters (via RAELink3)
Heart Rate
25 to 240 BPM (±1 BPM)
Respiration
3 to 70 BPM (±1 BPM)
Skin Temperature
5° to 60°C ± 0.1°
It measures heart rate, breathing rate, skin temperature, posture and activity in real time.
The BioHarness links to a RAELink3 portable modem, which wirelessly transmits sensor readings and GPS coordinates to a PC running ProRAE Guardian software.
Real-time sensor readings can be viewed remotely on a PC within a 2-mile radius.
The 4.2V Li-Ion rechargeable battery provides up to 8 hours of run time and recharges in 3 hours.
Yes, the strap uses washable conductive smart fabric and has no consumable components.
