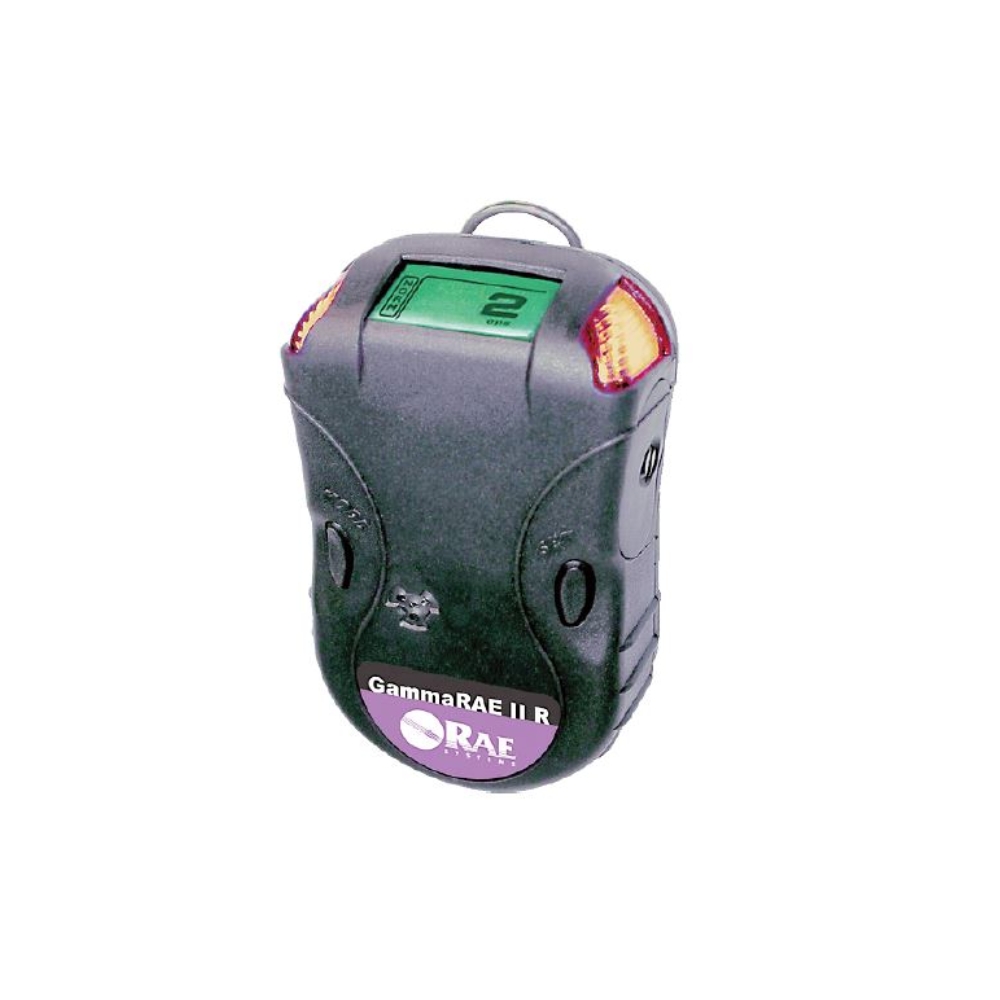

GammaRAE II R

Personal Radiation Detector and Dosimeter

i

This product has been discontinued and is no longer available. In many cases we can still service and calibrate it. Talk to our team about spares or alternatives.

A rapid gamma radiation detector and dosimeter combined in a single intrinsically safe, immersible instrument. Designed for national security and emergency responders, it alerts users to radiation threats well before health-threatening levels are reached.

KEY BENEFITS

Combined detector and dosimeter in one instrument
Intrinsically safe
Immersible in water for easy decontamination
Loud audible, visible and vibration alarms
Dose accumulation tracking

+ more in the Description tab below

Contact us

Rapid Gamma Detection and Dose Tracking in One Instrument

The RAE Systems GammaRAE II R combines a gamma radiation detector and a dosimeter in a single rugged unit built for national security and emergency response. Its high sensitivity at low radiation levels can alert users to a threat well before exposure reaches dangerous levels.

A sensitive CsI scintillator delivers fast search capability, while an energy-compensated PIN diode provides high dose rate range and accurate dosimeter performance. Prominent visible, audible and vibration alarms respond in under two seconds, and the instrument is immersible in water for easy decontamination.

Two AA alkaline batteries deliver up to 600 hours of operation, and a large 30,000-point datalog can be downloaded wirelessly via Bluetooth. Intrinsically safe and IP-67 rated, the GammaRAE II R suits customs, law enforcement, military, HazMat and fire response applications.

Benefits

Combined detector and dosimeter in one instrument
Intrinsically safe
Immersible in water for easy decontamination
Loud audible, visible and vibration alarms
Dose accumulation tracking

High sensitivity at low radiation levels
Alarm response in under 2 seconds
Up to 600 hours of battery life
30,000-point datalog with Bluetooth download
Top-mounted invertable display

Radiation Sensors

3cc CsI (TI) with Photodiode; Energy-Compensated PIN Diode

Energy Range

0.06 to 3.0 MeV

Dose Equivalent Rate Range (137Cs)

1 μR/h to 600 R/h (0.01 μSv/h to 6 Sv/h)

Accuracy of DER

±20%

Dosage Range

1 μR to 999.9 R (0.01 μSv to 9.9 Sv)

Time to Alarm

< 2 seconds

Alarms

85+ dB buzzer @ 30 cm, vibration, LED lights

Datalog Size

30,000 data points

Communication

Built-in Bluetooth

Battery

2 AA alkaline; up to 600 hours

Temperature

-20°C to 50°C

IP Rating

IP-67 (immersible)

Size

125 mm x 68 mm x 35 mm

Weight

270 g

It detects gamma radiation across an energy range of 0.06 to 3.0 MeV using a CsI scintillator and an energy-compensated PIN diode.

Yes, it functions as both a rapid gamma detector for searching and a dosimeter for tracking accumulated dose.

Two AA alkaline batteries provide up to 600 hours of operation.

Yes, it is IP-67 rated and immersible in water for easy decontamination.

No routine calibration is required; periodic functional tests are recommended using 137Cs check sources, with factory calibration available if needed.
