MeshGuard Gamma
Wireless Gamma Radiation Detector
i
This product has been discontinued and is no longer available. In many cases we can still service and calibrate it. Talk to our team about spares or alternatives.
A battery-powered wireless gamma radiation detector that forms a key building block of the MeshGuard mesh network. It is designed for quick-deploy, low-cost gamma monitoring in industrial and environmental applications.
KEY BENEFITS
- Fastest deployment and decommissioning time
- Simple to install and operate
- Rugged and reliable
- Self-forming, self-healing wireless network
- High sensitivity scintillator detector
+ more in the Description tab below
Rapid-Deploy Wireless Gamma Radiation Monitoring

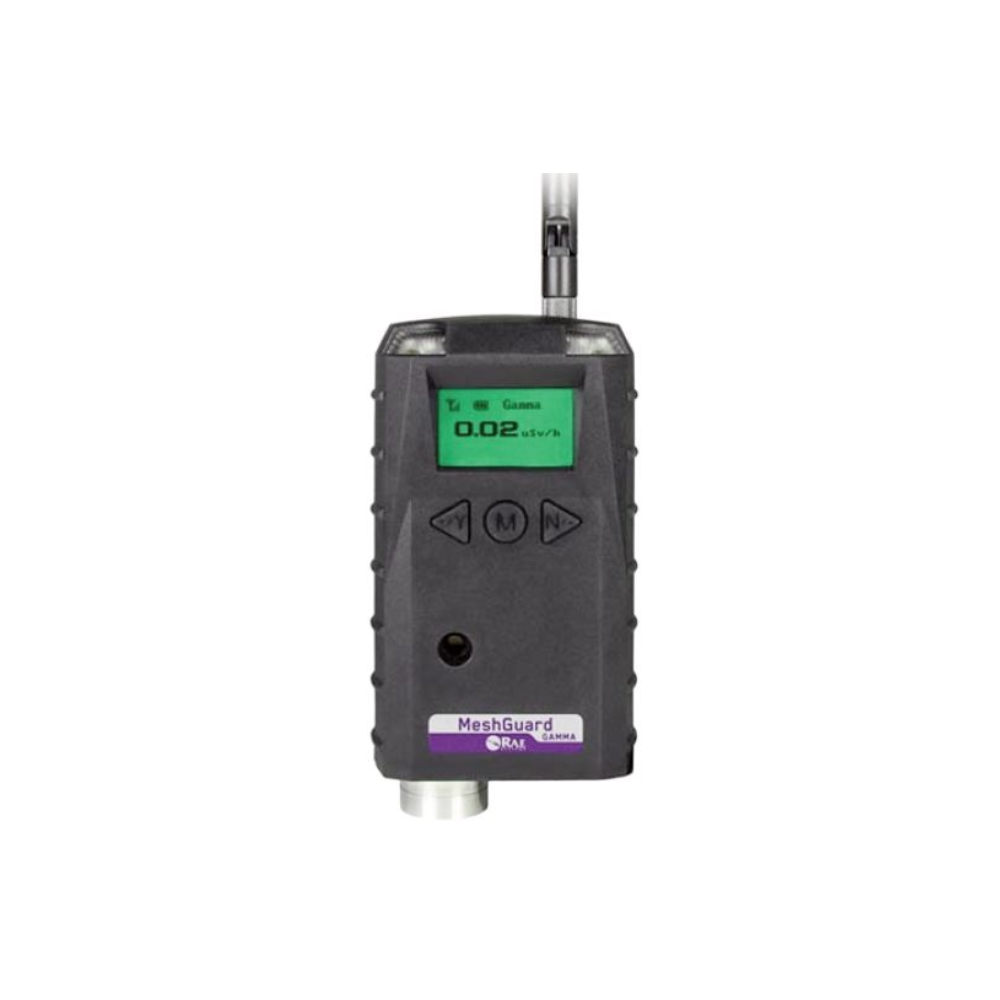

The RAE Systems MeshGuard Gamma is a battery-powered wireless radiation detector that anchors the MeshGuard intelligent network of connected sensors. It is designed for quick deployment in areas where a low-cost, high-ROI gamma monitoring solution is required.
Field-replaceable pre-calibrated scintillator sensors give high sensitivity to gamma radiation, with a local display showing dose rate in μR/h, μSv/h or μGy/h. The self-forming, self-healing wireless network brings units online automatically and routes data back to the controller through the best available path.
Rugged and IP-54 rated, the MeshGuard Gamma runs for up to two months on its internal lithium battery, with an optional SolarPak for 24/7 uptime. It works directly with ProRAE Guardian mobile command center software and offers magnetic mounting for fast installation.
Benefits
- Fastest deployment and decommissioning time
- Simple to install and operate
- Rugged and reliable
- Self-forming, self-healing wireless network
- High sensitivity scintillator detector
- IP-54 rated weather resistant
- Battery operation up to 2 months
- SolarPak option for 24/7 uptime
- Magnetic mounting for quick installation
- Compatible with ProRAE Guardian software
Dose Rate Range
1 μR/h to 20 mR/h (0.01 μSv/h to 200 μSv/h)
Energy Range
0.06 to 3.0 MeV (X-ray and Gamma)
Accuracy
±20% from 100 μR/h to 20 mR/h
Response Time
T90 1 mR/h)
Size
26.5 cm x 9.5 cm x 5.5 cm
Weight
0.6 kg
Visual Alarm
2 super-bright red LEDs
Audible Alarm
90 dB @ 30 cm
RF Frequency
2.4 GHz ISM Band, IEEE 802.15.4
Operating Range
300 meters (line of sight)
Power Supply
Disposable Lithium Battery, +3.6V
Operating Time
Up to 60 days on internal battery
Operating Temperature
-20° to 50°C
IP Rating
IP-54
It uses a self-forming, self-healing 2.4 GHz wireless mesh network compliant with IEEE 802.15.4, automatically routing data back to the controller through the best available path.
It measures gamma dose rate from 1 μR/h to 20 mR/h across an energy range of 0.06 to 3.0 MeV.
It operates for up to 60 days on its internal disposable lithium battery, with an optional SolarPak for continuous uptime.
The unit has an operating range of 300 meters (985 feet) line of sight.
Yes, it is IP-54 rated and operates from -20° to 50°C in up to 95% non-condensing humidity.
