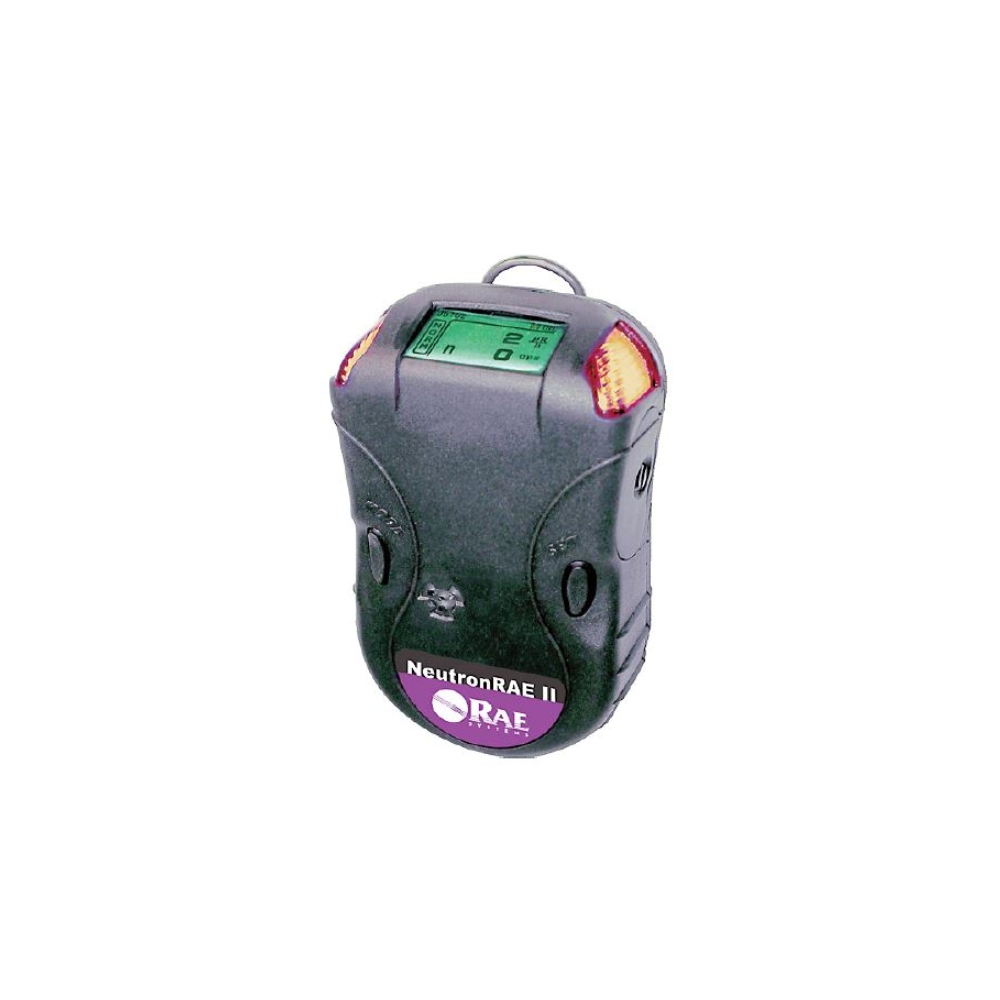

NeutronRAE II
Personal Gamma and Neutron Radiation Detector
i
This product has been discontinued and is no longer available. In many cases we can still service and calibrate it. Talk to our team about spares or alternatives.
A personal radiation detector that provides rapid detection of both gamma and neutron sources. Its high sensitivity alerts users to radiation threats well before exposure reaches health-threatening levels.
KEY BENEFITS
- Quick detection of gamma and neutron radiological threats
- Detects neutrons from weapons-grade Plutonium
- Loud audible buzzer, bright LEDs and vibration alarm
- Water resistant and immersible (IP-67)
- Dose accumulator tracks total gamma exposure
+ more in the Description tab below
Rapid Gamma and Neutron Threat Detection
The RAE Systems NeutronRAE II is a personal radiation detector that rapidly detects both gamma and neutron sources, including neutrons from weapons-grade Plutonium. Its high sensitivity can alert the wearer to a radiation threat well before they might be exposed to health-threatening levels.
Sensitive CsI and LiI scintillators provide excellent search capability and fast response. The detector displays a continuous dose rate readout in μR/h or μSv/h for gamma radiation and counts per second for neutron radiation, while a dose accumulator tracks total gamma exposure.
A loud audible buzzer, bright flashing LEDs and a vibration alarm can each be disabled separately. Designed in compliance with the IEEE ANSI N42.32 standard, the water-resistant, IP-67 immersible NeutronRAE II offers reliable operation in wet environments and easy decontamination.
Benefits
- Quick detection of gamma and neutron radiological threats
- Detects neutrons from weapons-grade Plutonium
- Loud audible buzzer, bright LEDs and vibration alarm
- Water resistant and immersible (IP-67)
- Dose accumulator tracks total gamma exposure
- Compliant with IEEE ANSI N42.32 standard
- Sensitive CsI and LiI scintillators for fast response
- Continuous datalogging with 10,000-point capacity
- Simple two-key intuitive programming
- Bluetooth datalog download
Gamma Detector
1cc CsI (TI) with Photodiode
Neutron Detector
1cc LiI (Eu) with Photodiode
Gamma Energy Range
0.06 to 3.0 MeV
Neutron Energy Range
thermal to 14 MeV
Dose Equivalent Rate Range (137Cs)
1 to 20 mR/h (0.01 to 200 μSv/h)
Accuracy of DER
±20%
Neutron Measuring Range
1 to 100 cps
Dose Range
1 μR to 999 R (0.01 μSv to 9.9 Sv), gamma only
Alarms
85+ dB buzzer @ 30 cm, vibration, LED lights
Datalog Size
10,000 data points
Communication
Built-in Bluetooth
Battery
2 AA alkaline; 500 hours
IP Rating
IP-67 (immersible)
Size
125 mm x 68 mm x 35 mm; 283 g
It provides rapid detection of both gamma and neutron radiation, including neutrons from weapons-grade Plutonium (239Pu).
Gamma radiation is displayed as dose rate in μR/h or μSv/h, and neutron radiation is displayed in counts per second (cps).
Yes, it is IP-67 rated and immersible in water for reliable operation and easy decontamination.
It offers continuous datalogging with a 10,000-point capacity, downloadable via built-in Bluetooth.
It is designed in compliance with the IEEE ANSI N42.32 standard.
