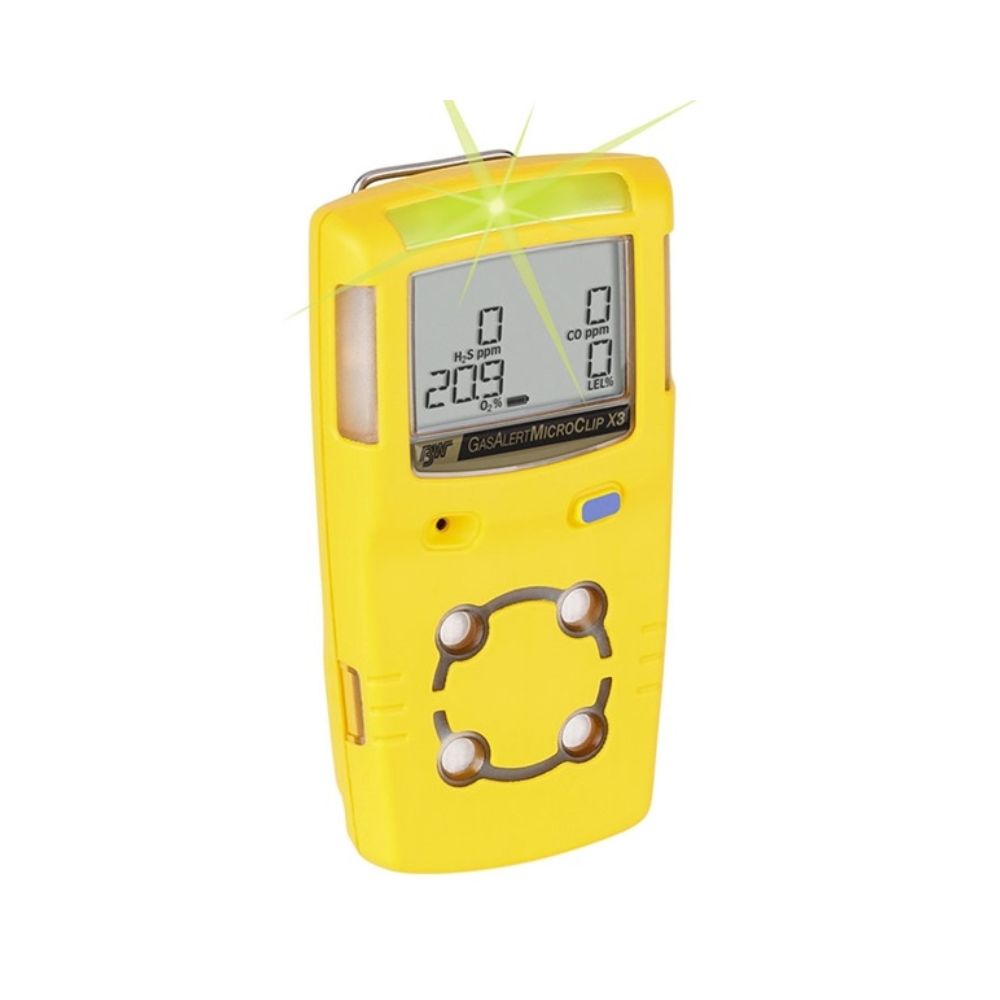

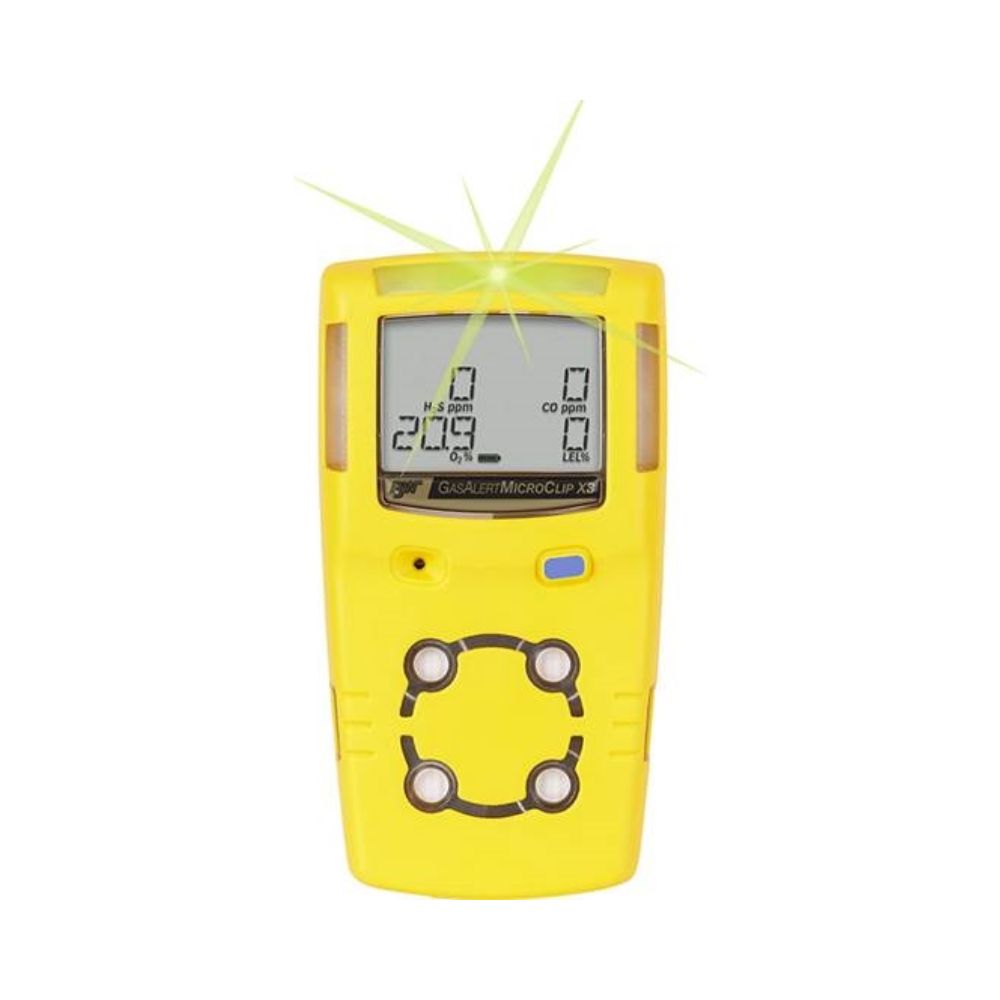

BW MicroClip X3
4-Gas Portable Detector
The Honeywell BW MicroClip X3 is the extended reliability version of the world’s most popular multi gas detector. It adds a three year warranty and an all new oxygen sensor that extends the detector’s expected service life to five years, including all sensors. With 18 hours of battery runtime, a cold weather guarantee, IP68 protection, IntelliFlash compliance indication and IntelliDoX compatibility, it delivers the same trusted MicroClip performance at a lower long term cost.
KEY BENEFITS
- 3-year full warranty including all sensors: longer than the MicroClip XL's 2-year warranty
- All new O2 sensor extends expected service life to five years, including all sensors
- Simultaneously monitors up to four gases: H2S, CO, O2 and combustibles (LEL)
- 18-hour battery runtime with cold weather guarantee: full shift runtime guaranteed at -20°C
- IP68 rated for water and dust protection
+ more in the Description tab below
The MicroClip You Already Trust. Extended to Three Years.
The BW MicroClip XL is one of the most widely deployed 4-gas detectors in the world. The BW MicroClip X3 takes the same platform and extends it. You get a three year warranty instead of two, and an all new oxygen sensor that extends the detector’s expected service life to five years, including all sensors. For operations that run instruments through their full warranty period before replacement, the X3 delivers a meaningfully better total cost of ownership without changing anything about the user experience.
Workers wearing the X3 get exactly what they expect from the MicroClip series. Single-button operation. An intuitive LCD icon display. A flashing green IntelliFlash indicator that confirms the instrument has been bump tested and is monitoring correctly. The same 18-hour battery runtime. The same cold weather guarantee of at least 12 hours of runtime at -20°C for the full warranty period. The same IP68 water and dust protection rated for immersion at 1.2 metres for 45 minutes.
Lower Long-Term Costs for Fleet Managers
The X3’s three year warranty and five year expected service life matter to fleet managers thinking about total cost of ownership. Honeywell’s new oxygen sensor is designed to operate consistently for five years, with no sensor replacement costs over the life of the detector. That means fewer replacement cycles and less disruption compared to a two year instrument. For larger fleets, the difference adds up quickly.
Fleet Management and Connectivity
The BW MicroClip X3 is compatible with the IntelliDoX docking station for automated bump testing, calibration and data download, and with Honeywell SafetySuite for fleet management and compliance records. Honeywell BW Connect compatibility enables real-time monitoring of worker status for safety managers who need live visibility across a site.
Benefits
- 3-year full warranty including all sensors: longer than the MicroClip XL's 2-year warranty
- All new O2 sensor extends expected service life to five years, including all sensors
- Simultaneously monitors up to four gases: H2S, CO, O2 and combustibles (LEL)
- 18-hour battery runtime with cold weather guarantee: full shift runtime guaranteed at -20°C
- IP68 rated for water and dust protection
- IntelliFlash provides continuous visual confirmation of detector operation and compliance
- Reflex Technology ensures sensor responsiveness for safety and uptime
- Single-button tamperproof operation: minimal training required
- Compatible with Honeywell BW Connect for real-time monitoring
- Compatible with IntelliDoX for automated bump testing, calibration and record keeping
Dimensions
11.3 x 6.0 x 3.2 cm
Weight
179 g
Display
Continuous LCD showing real-time gas concentrations with icon display
Keypad
Single button
Alarms
Audible 95 dB, visual (bright wide-angle alarm bars), vibration, Low, High, STEL, TWA, OL (over limit)
IntelliFlash
Continuous green flashing light confirming operation and compliance
Reflex Technology
Automated sensor responsiveness check
Battery runtime
18 hours, recharges in less than 6 hours. Guaranteed 12 hour runtime during the warranty period, from -20°C to 50°C
IP rating
IP68 (1.2 m for 45 minutes)
Operating temperature
-20°C to 50°C
Humidity
0 to 95% RH non-condensing
O2 sensor life
Rename the row Expected service life: 5 years, including all sensors
Certifications
CSA Class I, Div. 1, Groups A, B, C, D. IECEx Ex ia IIC T4 Ga. ATEX CE II 1G Ex ia IIC T4 Ga
Warranty
Full 3 years including all sensors
Compatible docking
IntelliDoX
Software
Honeywell SafetySuite, BW Connect
Self test
Sensors, battery, circuitry and alarms on start up
Datalogging
16 hours at 15 second intervals
Carbon Monoxide
CO
Hydrogen Sulphide
H2S
Combustible Gas
LEL
Oxygen
O2
- Aviation & Transportation
- Chemical Manufacturing
- Confined Space & Compliance
- Energy (Oil & Gas)
- Food & Beverage
- Landfill & Remediation
- Marine & Maritime
- Medical & Healthcare
- Mining & Minerals
- Power Generation & BESS
- Technology & Semiconductor
- Water & Wastewater
The X3 also has an all new oxygen sensor that extends the detector's expected service life to five years, including all sensors, for a lower total cost of ownership.
The five year expected service life, including all sensors, means no sensor replacement costs over the life of the detector.
The BW MicroClip X3 monitors up to four gases at once: hydrogen sulphide (H2S), carbon monoxide (CO), oxygen (O2) and combustible gas in %LEL.
Yes. Honeywell guarantees a minimum 12-hour runtime at -20°C for the full 3-year warranty period.
The BW MicroClip X3 is compatible with Honeywell's IntelliDoX docking station for automated bump testing, calibration and data download.
IntelliFlash is a continuously flashing green LED that confirms the BW MicroClip X3 has been bump tested and is monitoring correctly. It allows workers and supervisors to confirm compliance status at a glance without reading a display.
Yes. Honeywell guarantees at least a 12 hour runtime down to -20°C without compromising LEL detection of hydrogen, acetylene and other combustible gases.
