Ventis Slide-on Pump
Slide-on Pump for Confined Space Entry
The Ventis Slide-on Pump by Industrial Scientific is an in-field attachable and removable sampling pump designed for operators who wear their Ventis gas monitors primarily for personal protection but occasionally need a pump for confined space pre-entry sampling. Compatible with both the Ventis MX4 and Ventis Pro Series, the slide-on pump attaches without tools, is powered by its own battery so it does not draw from the instrument battery, and can draw a sample from up to 15 metres away. Three battery options provide between 10 and 36 hours of pump runtime to suit different deployment requirements.
KEY BENEFITS
- Convenient sampling from up to 15 m (50 feet) away
- Easy to attach and remove in the field with no tools required
- Powered by its own battery, does not draw from the instrument battery
- Compatible with Ventis MX4 and Ventis Pro Series monitors
- Two battery options: standard Li-ion (18 hours) or extended Li-ion (36 hours)
+ more in the Description tab below
Personal Monitoring and Confined Space Entry. One Monitor. One Pump.
Confined space pre-entry sampling and personal gas monitoring are two different tasks that traditionally required two different instruments. The Ventis Slide-on Pump removes that requirement. It attaches directly to a standard non-pumped Ventis MX4 or Ventis Pro Series monitor, converting it from a diffusion personal monitor into a pumped confined space instrument in seconds, without tools.
When the confined space entry is complete, the pump slides off just as easily, returning the monitor to its standard lightweight personal protection configuration. This means workers carry one instrument instead of two, operations managers purchase and maintain fewer instruments, and the overall cost of a confined space gas detection program is reduced.
Powered Independently
The slide-on pump is powered by its own dedicated battery pack and does not draw power from the instrument battery. This is an important design feature, it means the instrument’s gas monitoring runtime is not reduced when the pump is in use. The pump and instrument batteries can be charged separately, and when using Li-ion battery packs they should be charged independently. For simplified logistics, the same battery packs and chargers used for Ventis instruments are compatible with the slide-on pump.
Two Battery Options
The slide-on pump is available with two battery configurations. The standard rechargeable Li-ion battery pack provides 18 hours of pump runtime at 20°C. The extended range Li-ion battery pack provides 36 hours of pump runtime, suited to longer deployment scenarios.
Important Sampling Note

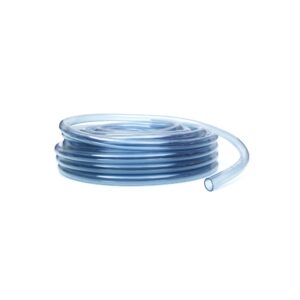

When using the slide-on pump with sample tubing, allow sufficient time for the gas sample to travel from the sampling point to the instrument’s sensors before reading the display. As a guide, allow a base time of 2 minutes plus 2 seconds for each 30 cm of sample tube length. Reading the display before the sample has reached the sensors will give inaccurate results.
Benefits
- Convenient sampling from up to 15 m (50 feet) away
- Easy to attach and remove in the field with no tools required
- Powered by its own battery, does not draw from the instrument battery
- Compatible with Ventis MX4 and Ventis Pro Series monitors
- Two battery options: standard Li-ion (18 hours) or extended Li-ion (36 hours)

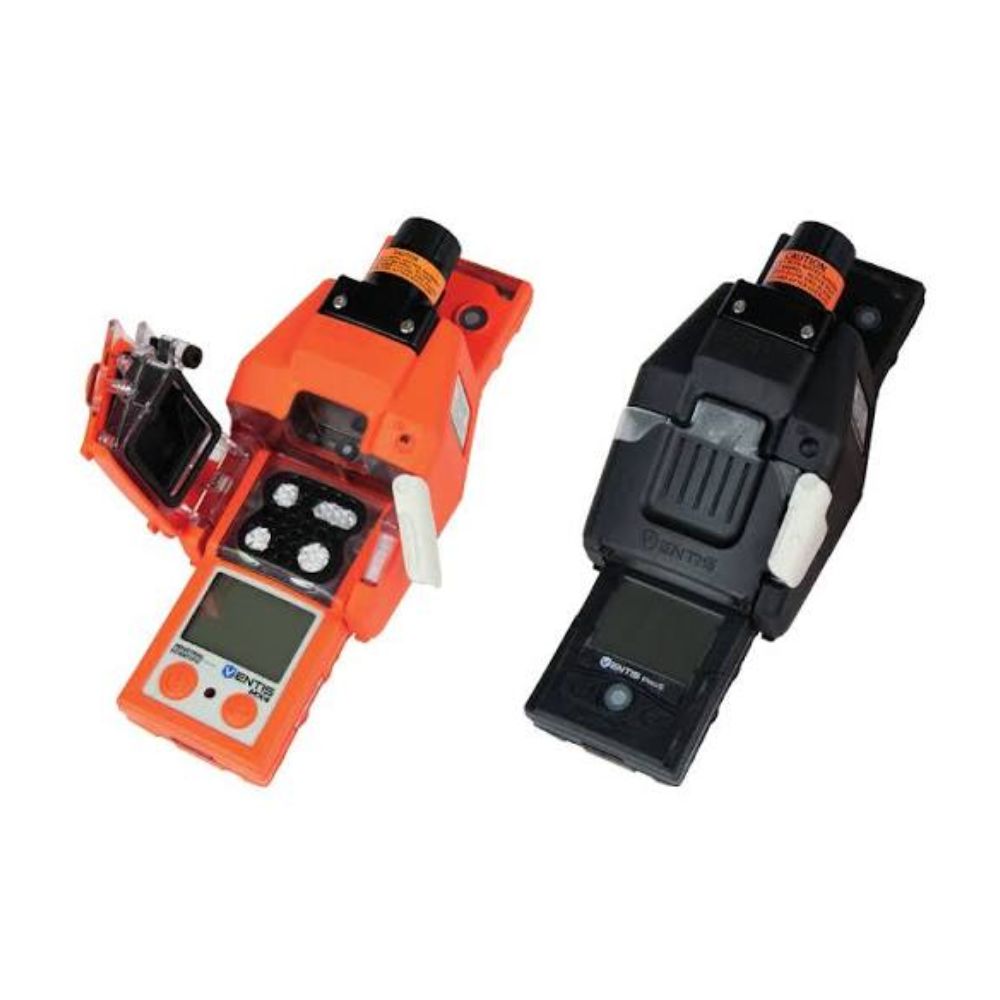

- Available in black or safety orange
- Pump fault alarm with ultra-bright LEDs and 90 dB audible alert
- IP67 rated for dust and water resistance
- Two-year warranty including pump and battery
Dimensions
143 x 81 x 68 mm (Li-ion battery). 143 x 81 x 85 mm (extended Li-ion)
Weight
270 g (Li-ion). 316 g (extended Li-ion)
Case material
Polycarbonate with protective rubber overmold
Sample draw capability
Up to 15.2 m (50 feet)
Battery options
Standard Li-ion: 18 hours. Extended Li-ion: 36 hours (both at 20°C)
Pump fault alarms
Ultra-bright LEDs, audible 90 dB at 30 cm
Operating temperature
-20°C to 50°C
Humidity
15 to 95% RH non-condensing
IP rating
IP67
Compatible instruments
Ventis MX4, Ventis Pro Series
Certifications
ATEX, UL, CSA, IECEx
Warranty
2 years including pump and battery. Filters warranted 18 months from shipment or 1 year from first use
- Confined Space & Compliance
- Aviation & Transportation
- Chemical Manufacturing
- Energy (Oil & Gas)
- Landfill & Remediation
- Marine & Maritime
- Mining & Minerals
- Power Generation & BESS
- Water & Wastewater
The Ventis Slide-on Pump is compatible with both the Ventis MX4 and the Ventis Pro Series multi-gas monitors. It is not compatible with other instrument brands.
No. The slide-on pump is powered entirely by its own dedicated battery pack and does not draw power from the instrument battery. Instrument runtime is not affected when the pump is in use.
Yes. The slide-on pump is designed to be attached and removed in the field without tools, allowing the operator to transition between personal monitoring and pumped confined space sampling as needed throughout the shift.
The slide-on pump can draw a gas sample from up to 15.2 m (50 feet) away.
Allow a base time of 2 minutes plus 2 seconds for each 30 cm of sample tube length before reading the display. This ensures the gas sample has fully travelled from the sampling point to the instrument sensors.
Two battery options are available: standard Li-ion with 18 hours runtime, and extended range Li-ion with 36 hours. The same battery packs and chargers used for Ventis instruments are compatible with the pump.
