Atmos Room Monitor
Fixed Room Gas Monitor
i
This product has been discontinued and is no longer available. In many cases we can still service and calibrate it. Talk to our team about spares or alternatives.

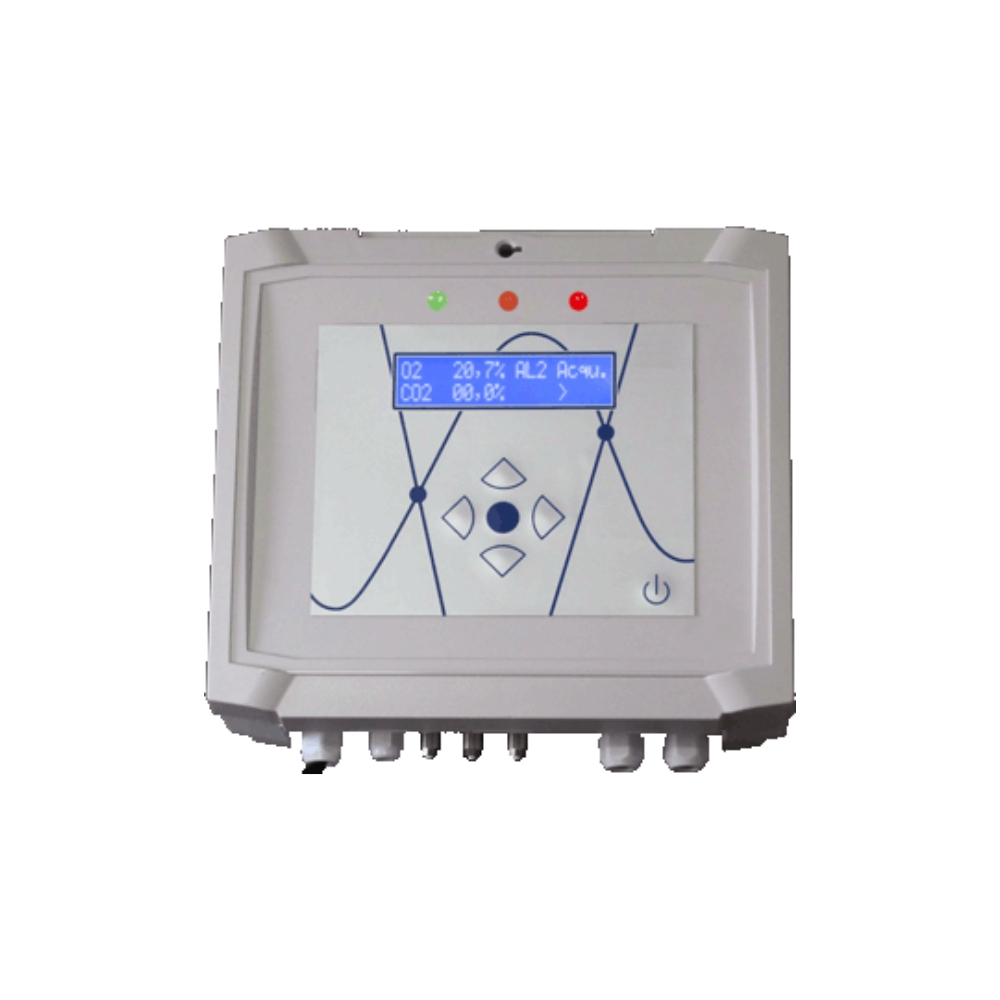

Atmos is a wall-mounted controlled-atmosphere monitor for rooms where oxygen may fall or CO, CO2 and ethylene may rise. It manages up to three remote gas sensors from a single central unit with adjustable alarm thresholds and 4-20 mA outputs.
KEY BENEFITS
- Dedicated to room monitoring where O2 may decrease or CO/CO2 may increase
- Built-in audible alarm with optional external flash alarm
- From 1 to 3 gas channels per central unit
- Complies with EN 50104 version 2010
- Remote sensors up to 1 km away without signal amplifier
+ more in the Description tab below
Continuous room monitoring for controlled atmospheres
Atmos is a wall-mounted device designed to protect workers and product wherever gas concentrations can vary and put safety at risk, or wherever ambient storage conditions must be watched continuously.
Remote sensors sample the atmosphere by natural diffusion or convection and can be installed up to 1 km from the central unit without a signal amplifier. The central unit manages alarms with adjustable thresholds and duplicates every measurement to a 4-20 mA output.
Built around three principles of safety, adaptability and control, Atmos supports from one to three gas channels per central unit and complies with EN 50104 (version 2010).
Benefits
- Dedicated to room monitoring where O2 may decrease or CO/CO2 may increase
- Built-in audible alarm with optional external flash alarm
- From 1 to 3 gas channels per central unit
- Complies with EN 50104 version 2010
- Remote sensors up to 1 km away without signal amplifier
- Atmospheric variation compensation, independent of weather and altitude
- One 4-20 mA analog output per sensor
- Two alarm thresholds per gas channel plus one system fault relay
- IP65 central unit housing and IP54 remote sensors
- Extensions possible up to 24 digital connections
Qualified gases
O2, CO2, CO, C2H4
Oxygen (O2) accuracy
+/- 1% relative
Oxygen (O2) scale
0 - 25% (other scales by request)
Carbon dioxide (CO2) accuracy
+/- 2% full scale
Carbon dioxide (CO2) scale
0 - 5% (other scales by request)
Carbon monoxide (CO) accuracy
+/- 2% full scale
Carbon monoxide (CO) scale
0 - 2000 ppm (other scales by request)
Central enclosure
ABS enclosure IP65
Dimensions
D90 or D150 W270 H250 (mm)
Ports
2 alarm relays per channel + 1 fault relay, up to 3 analog 4-20 mA outputs
Interface
2 lines of 20 characters, soft keypad
Power supply
12V - 10W or 100-230 VAC 50-60 Hz
Operating temperature
0 / 40 degrees C, 98% RH
Optional communication
RS 485
It is qualified for oxygen (O2), carbon dioxide (CO2), carbon monoxide (CO) and ethylene (C2H4), with up to three gas sensors managed by one central unit.
Remote sensors can be installed up to 1 km from the central unit without a signal amplifier, sampling the atmosphere by natural diffusion or convection.
Each gas channel has two adjustable alarm thresholds and a built-in audible alarm, plus one system fault relay and one 4-20 mA analog output per sensor. An external flash alarm is optional.
The Atmos Room Monitor complies with EN 50104 version 2010.
The central unit housing is rated IP65 and the remote sensors are rated IP54.
