BW Icon+
Four Gas Detector
i
This product has been discontinued and is no longer available. In many cases we can still service and calibrate it. Talk to our team about spares or alternatives.

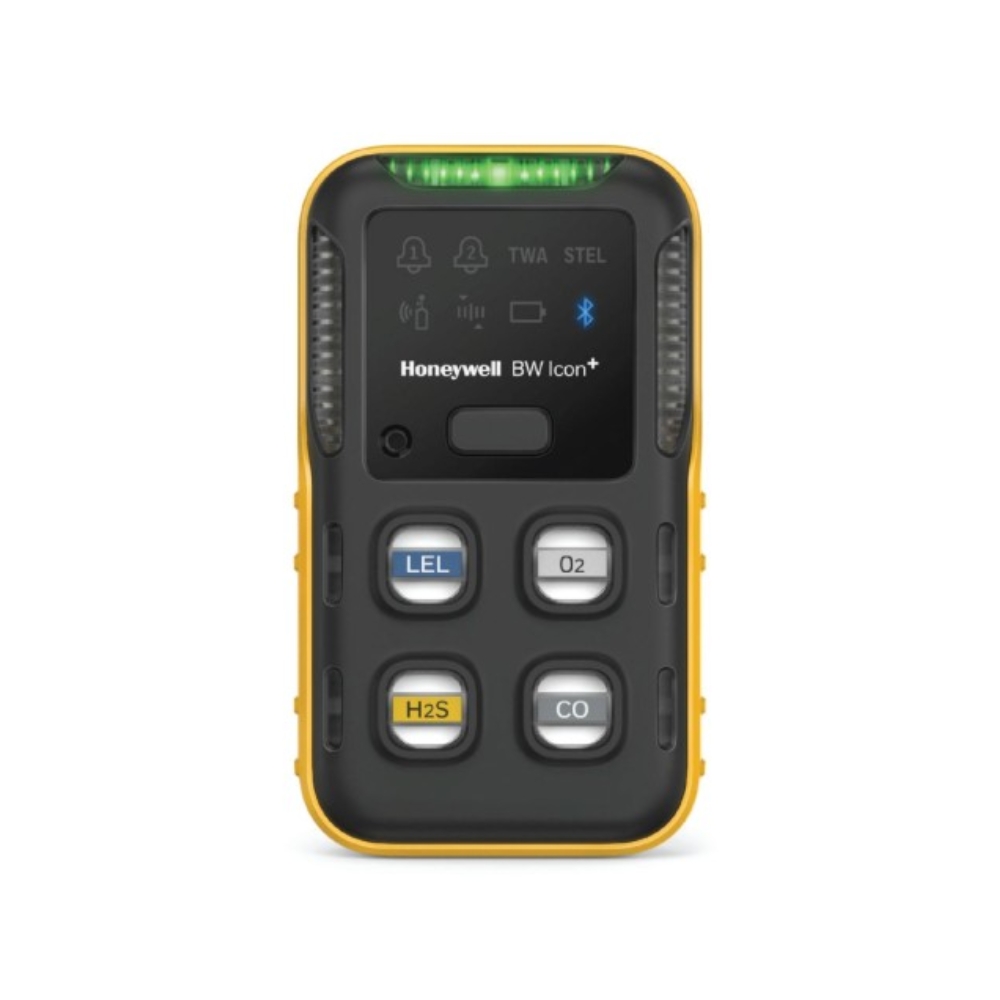

The Honeywell BW Icon+ is a serviceable four-gas detector with a choice of six sensors, delivering an icon-based user experience while letting you maximise detector lifespan and optimise long-term cost of ownership.
KEY BENEFITS
- Serviceable design maximises detector lifespan
- Choice of six sensors for flexible applications
- Two months of runtime on a 4.5-hour charge
- Green light confirms compliance, amber signals maintenance
- Low-power infrared LEL sensor immune to silicone poisoning
+ more in the Description tab below
The Serviceable, Icon-Based Four-Gas Detector
The Honeywell BW Icon+ brings the simplicity of icon-based gas detection to a fully serviceable package. With a choice of six sensors, it lets you tailor the detector to your application while extending its working life and optimising the long-term cost of ownership across your fleet.
An easy-to-read status display uses a green light to confirm compliance and an amber light to flag when maintenance is due, so workers always know their device is ready. A low-power infrared LEL sensor immune to silicone poisoning keeps combustible readings accurate, while 1-Series sensors respond to dangerous gas levels in seconds even in harsh temperatures.
Two months of runtime on a 4.5-hour charge keeps the detector working through demanding shifts, and it connects to the IntelliDoX instrument management system, Honeywell Safety Suite and TouchConnect over Bluetooth for fast wireless configuration.
Small, lightweight and wearable, the BW Icon+ pairs an intuitive user experience with the flexibility that maintenance teams need.
Benefits
- Serviceable design maximises detector lifespan
- Choice of six sensors for flexible applications
- Two months of runtime on a 4.5-hour charge
- Green light confirms compliance, amber signals maintenance
- Low-power infrared LEL sensor immune to silicone poisoning
- 1-Series sensors respond to dangerous gas levels in seconds
- Compatible with IntelliDoX and Honeywell Safety Suite
- Bluetooth TouchConnect for wireless configuration
- Small, lightweight and wearable
- Optimises long-term cost of ownership
Size
108.2 mm x 61.5 mm x 43.2 mm (with alligator clip)
Weight
185 g with alligator clip, 169 g with Klick Fast stud
Working Temperature
-40°C to 60°C
Working Humidity
5% to 95%
Ingress Protection
IP66, IP68
Alarms and Type
Visual, vibrating, audible (95 dB); Low, High, TWA, STEL, Negative Drift, Over Limit, Multi-alarm
Typical Battery Life
Two months (with NDIR CH4 sensor)
Connected Worker
Bluetooth Low Energy (BLE)
Certifications and Approvals
ATEX, IECEx, contains FCCID, contains IC
Device Warranty
Two-year warranty for sensors and detector
The Icon+ is the serviceable version. It lets you replace sensors and choose from six sensor options, so you can extend its lifespan and tailor it to different applications.
The BW Icon+ supports a choice of six sensors, giving you flexibility across a range of confined-space and general gas monitoring applications.
Around two months of runtime on a single 4.5-hour charge, and up to four months when the detector is powered down between shifts.
Yes. It is compatible with the IntelliDoX instrument management system, Honeywell Safety Suite and TouchConnect over Bluetooth for wireless configuration.
The BW Icon+ comes with a two-year warranty covering both the sensors and the detector.
