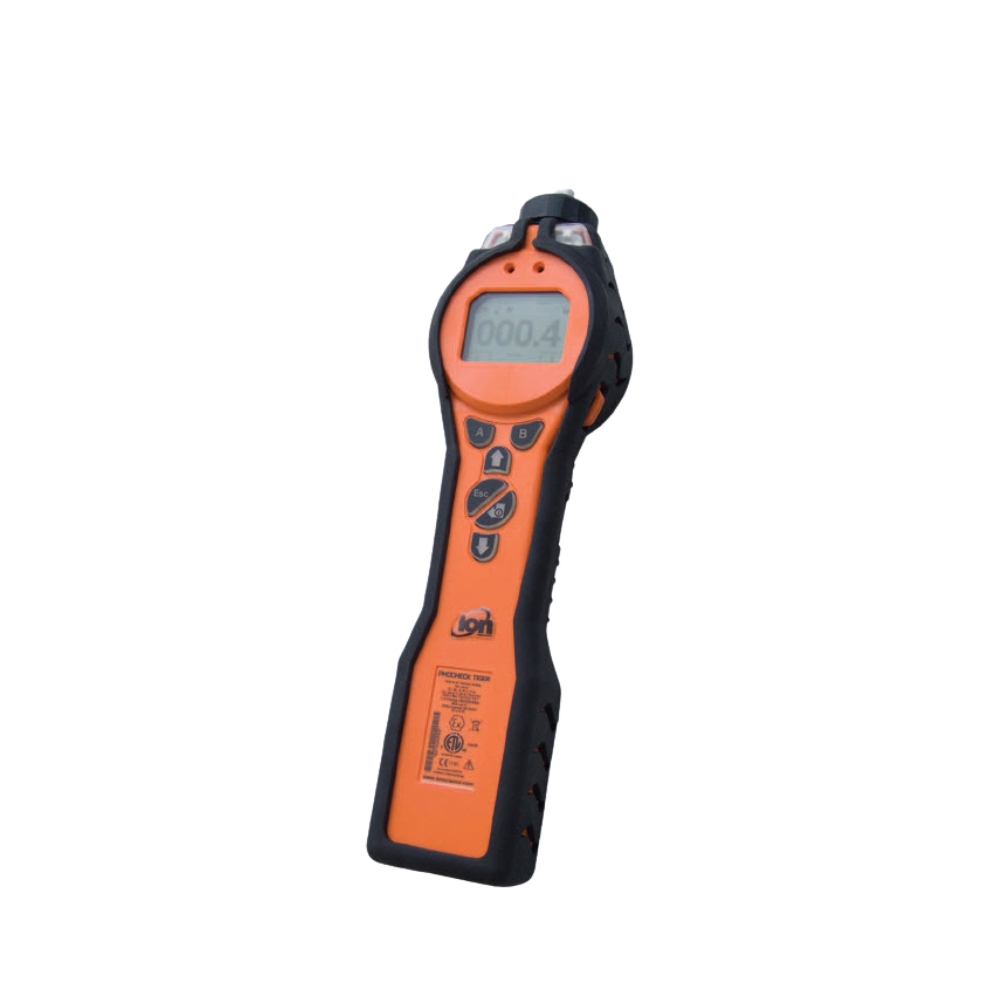

PhoCheck Tiger
VOC PID Detector
i
This product has been discontinued and is no longer available. In many cases we can still service and calibrate it. Talk to our team about spares or alternatives.
The PhoCheck Tiger is an advanced handheld photoionisation detector (PID) for volatile organic compounds (VOCs), using patented Fence Electrode Technology. It offers a dynamic range from 1 ppb to 20,000 ppm and is pre-programmed with over 450 gas response factors.
KEY BENEFITS
- Patented Fence Electrode Technology
- Dynamic range 1 ppb to 20,000 ppm (gas dependent)
- Pre-programmed with over 450 gas response factors
- Rapid response in less than two seconds
- Battery life up to 30 hours, field replaceable in hazardous areas
+ more in the Description tab below
The World’s Most Advanced Handheld PID for VOC Detection
The PhoCheck Tiger, with miniPID technology, is one of the most advanced handheld photoionisation detectors on the market for volatile organic compounds (VOCs). Ion Science’s patented Fence Electrode Technology is independently verified as the best-performing PID for fast response and accurate readings, while minimising humidity and contamination effects.
A dynamic detection range of 1 ppb to 20,000 ppm (gas dependent) offers the widest range available, with readings displayed as ppm or mg/m3. The instrument responds in less than two seconds, is ready to use straight out of the box and is pre-programmed with response factors for over 450 gases.
Long-life, field-replaceable Li-Ion batteries deliver up to 30 hours of use and can be changed safely even in hazardous areas. Intrinsically safe to European, Canadian and US approvals, with a rugged IP65 design and removable rubber boot, the Tiger is a fully upgradeable instrument with selectable data logging, health and safety and ppb options.
Benefits
- Patented Fence Electrode Technology
- Dynamic range 1 ppb to 20,000 ppm (gas dependent)
- Pre-programmed with over 450 gas response factors
- Rapid response in less than two seconds
- Battery life up to 30 hours, field replaceable in hazardous areas
- Easy change miniPID detector, electrode stack and lamps
- Intrinsically Safe ATEX, IECEx and CUL approvals
- Rugged IP65 design with removable rubber boot
- Audible 95 dBA sounders, bright LED and vibration alarms
- 5 year instrument warranty
Minimum Resolution
1 ppb or 0.001 mg/m3
Maximum Reading
20,000 ppm or 20,000 mg/m3
Accuracy
± 5% display reading ± one digit
Linearity
± 5% to 100 ppm
Intrinsically Safe Approvals
ATEX II 2G Ex ia IIC T4, IECEx and CUL
Battery Life (Li-ion)
Up to 30 hours, charge time 6.5 hours
Battery Life (Alkaline)
3 x AA, typically 15 hours
Lamps
10.6 eV Krypton PID (standard); 9.8eV and 11.7eV available
Data Logging
Over 120,000 data log points with date and time stamp
Communication
USB 1.1
Flow Rate
220 ml/min with flow fail alarm
Temperature
Operating -20 to 60 °C (non IS)
Protection
Designed to IP65
Instrument Weight
0.72 kg
It is a handheld photoionisation detector (PID) for volatile organic compounds (VOCs), pre-programmed with response factors for over 450 gases.
It has a dynamic detection range from 1 ppb to 20,000 ppm (gas dependent), the widest available, with readings shown as ppm or mg/m3.
The Tiger responds in less than two seconds, the fastest on the market, and clears down just as quickly.
The field-replaceable Li-Ion battery provides up to 30 hours of use, and can be safely replaced even in hazardous environments.
Yes. It is intrinsically safe to European, Canadian and US approvals, rated ATEX II 2G Ex ia IIC T4, IECEx and CUL, with an IP65 rugged design.
