SDM-2012
Docking Station
i
This product has been discontinued and is no longer available. In many cases we can still service and calibrate it. Talk to our team about spares or alternatives.

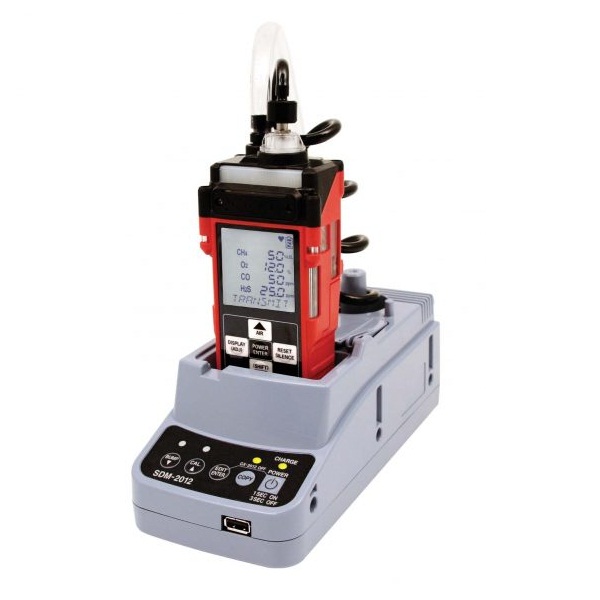

The SDM-2012 is a docking and calibration station that automates charging, calibration and bump testing of the GX-2012 portable gas monitor. It runs stand-alone or connects up to ten modules to a PC for automated maintenance and record archiving.
KEY BENEFITS
- Stand-alone operation with no PC required
- Charges the GX-2012 Li-Ion battery pack
- Automated calibration and bump testing
- Saves and stores all bump test and calibration records
- Copies records to a USB jump drive
+ more in the Description tab below
Automate GX-2012 Calibration, Bump Testing and Charging
The SDM-2012 is a versatile maintenance tool that takes the manual effort out of servicing the GX-2012 portable gas monitor. As a stand-alone station it handles charging, calibration and bump testing, storing every record automatically for later upload to a PC via the included USB flash drive and software.
Need to service a whole fleet? Connect up to ten SDM-2012 modules to a PC over USB for automated calibration, bump testing and datalog archiving from your GX-2012 instruments. Each station includes connections for one or two calibration gas cylinders.
With software-controlled data retrieval, network archiving and the ability to configure GX-2012 parameters, the SDM-2012 keeps your compliance records complete and your detectors ready for work. It is Windows 7 compatible and simple enough to run without a PC when you need it to.
Benefits
- Stand-alone operation with no PC required
- Charges the GX-2012 Li-Ion battery pack
- Automated calibration and bump testing
- Saves and stores all bump test and calibration records
- Copies records to a USB jump drive
- Includes PC software for viewing and archiving records
- Connect up to ten modules to a PC
- One or two calibration gas ports per station
- Configure GX-2012 parameters and archive to a network location
- Windows 7 compatible
Applicable Instrument
GX-2012 portable gas monitor
Operating Modes
Stand-alone or multi-module PC-connected
Maximum Modules
Up to 10 connected via USB
Calibration Gas Ports
1 or 2 calibration gas cylinders
Charging
Li-Ion battery pack
Data Transfer
USB flash drive (PC software and drive included)
PC Compatibility
Windows 7 compatible
It is designed to automate charging, calibration and bump testing of the RKI GX-2012 portable gas monitor.
Yes. As a stand-alone station it charges, calibrates and bump tests the GX-2012 and stores all records automatically, with no PC required.
Up to ten SDM-2012 modules can be connected simultaneously to a PC using USB cables for fleet-wide automated maintenance.
Records are saved automatically and can be copied to the included USB flash drive, or archived to a network location using the supplied PC software.
Each station includes connections for one or two calibration gas cylinders.
