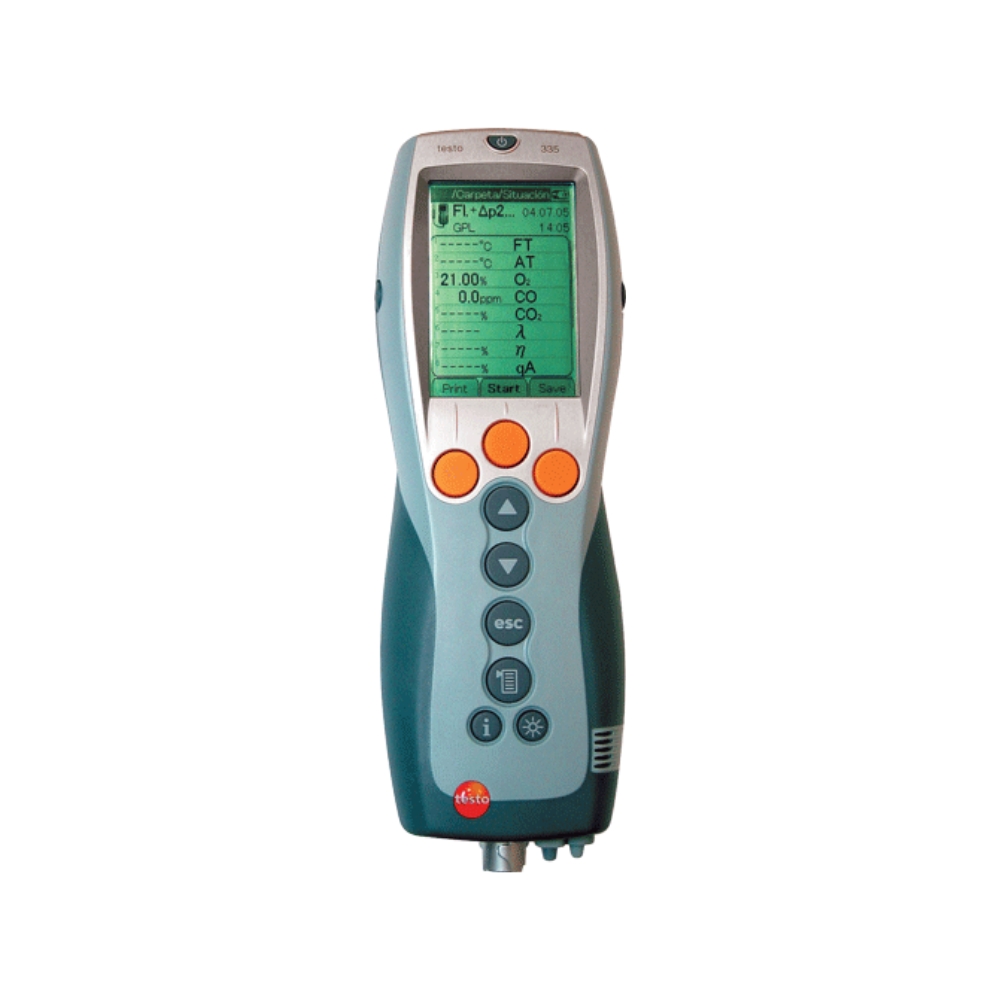

Testo 335
Flue Gas Analyser
i
This product has been discontinued and is no longer available. In many cases we can still service and calibrate it. Talk to our team about spares or alternatives.
The Testo 335 is a flue gas analyser tailored to industrial applications, from processing and power plants to burner and furnace servicing and stationary motors. It supports two freely selectable toxic sensors and measurement range extensions for high gas concentrations.
KEY BENEFITS
- Two freely selectable toxic sensors: CO, COlow, NO, NOlow, NO2, SO2
- Measurement range extensions for high CO concentrations
- Optional parallel differential pressure or flow measurement
- Powerful diaphragm pump with constant flow (-200 to +50 hPa)
- Gas sampling hose up to 7.8 m long
+ more in the Description tab below
Industrial flue gas analysis with flexible sensor options
The Testo 335 is a flue gas analyser specially tailored to the requirements of industrial applications. It suits emission monitoring for operators of industrial furnaces such as processing and power plants, service technicians for burner and furnace manufacturers, plant construction and stationary motors, with spot measurements possible for up to two hours.
Two freely selectable toxic sensors (CO, COlow, NO, NOlow, NO2, SO2) and two measurement range extensions allow measurement to continue despite high CO concentrations, while a powerful, automatically controlled diaphragm pump maintains a constant flow across a wide pressure range.
With industrial probes rated up to 1000 C, a logger function, graphic sensor calibration data and accuracy approved to EN 50379 Part 2, the 335 is built for demanding professional use.
Benefits
- Two freely selectable toxic sensors: CO, COlow, NO, NOlow, NO2, SO2
- Measurement range extensions for high CO concentrations
- Optional parallel differential pressure or flow measurement
- Powerful diaphragm pump with constant flow (-200 to +50 hPa)
- Gas sampling hose up to 7.8 m long
- Up to 18 standard fuels plus 10 user-defined fuels
- Industrial probes rated up to 1000 C
- Logger records data for up to 2 hours
- Accuracy approved to EN Standard 50379 Part 2
- Optional Bluetooth wireless transfer
Application
Industrial emission monitoring, furnaces, burners, stationary motors
Toxic Sensors
Two freely selectable: CO, COlow, NO, NOlow, NO2, SO2
Range Extension (standard)
Single dilution Slot 2 (CO, NO2, SO2), factor 5
Range Extension (option)
Dilution for all sensors, factor 2
Pump Pressure Range
-200 to +50 hPa
Gas Sampling Hose
Up to 7.8 m (two 2.8 m extensions)
Fuels
18 standard plus 10 user-defined
Industrial Probe Rating
Up to 1000 C
Logger
Records data for up to 2 hours
Optional Flow Measurement
Parallel dP or m/s
Approvals
EN 50379 Part 2 (O2, CO2, CO, NO, NOlow, C, hPa)
Connectivity
Optional Bluetooth wireless transfer
It is designed for industrial emission monitoring, including processing and power plants, burner and furnace servicing, plant construction and stationary motors.
Two toxic sensors are freely selectable from CO, COlow, NO, NOlow, NO2 and SO2.
It offers two measurement range extensions, including single dilution on Slot 2 with a factor of 5 and an option for dilution on all sensors with a factor of 2.
Its logger function records data in the analyser for up to two hours.
Accuracy is approved for O2, CO2, CO, NO, NOlow, temperature and pressure to EN Standard 50379 Part 2.
