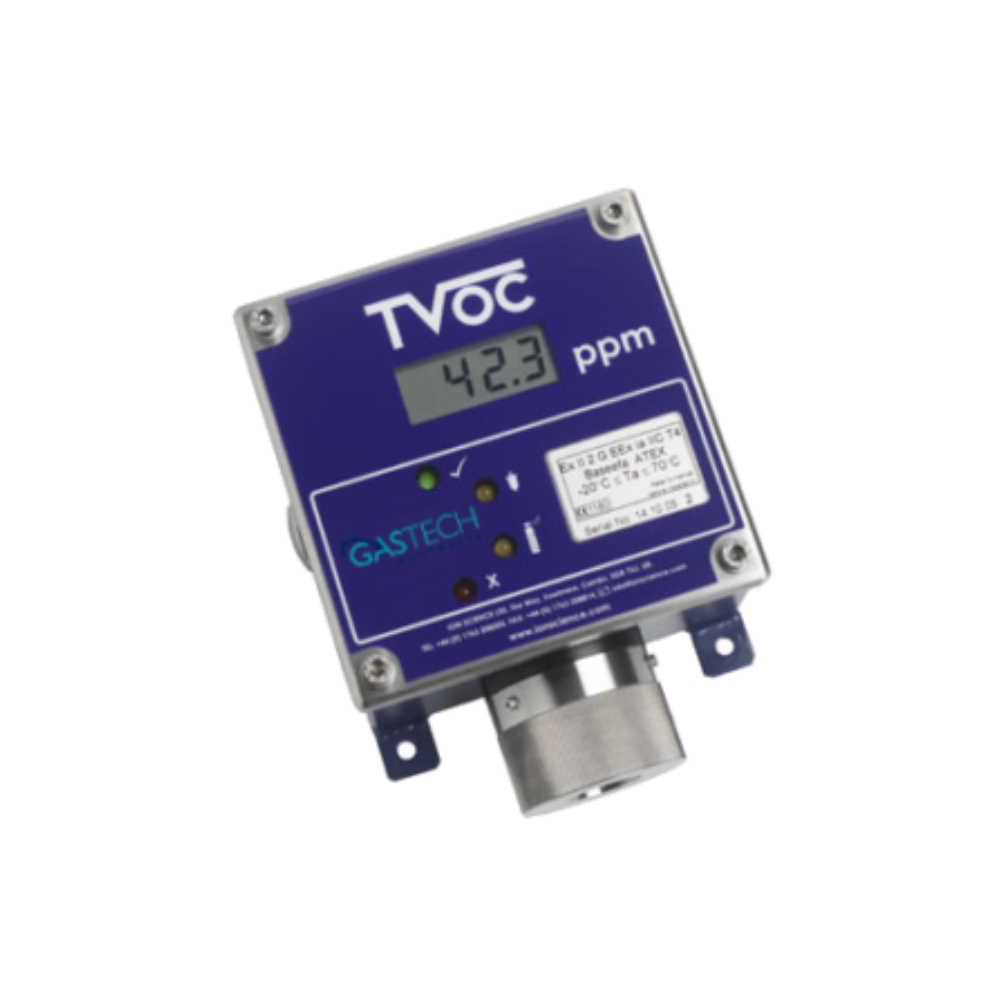

TVOC Fixed PID Detector
Fixed PID Gas Transmitter
i
This product has been discontinued and is no longer available. In many cases we can still service and calibrate it. Talk to our team about spares or alternatives.
The TVOC is a fixed ATEX approved photoionisation detector (PID) for the continuous detection and measurement of total volatile organic compounds. Its intrinsically safe design and diffusive sampling suit hazardous area installations.
KEY BENEFITS
- Patented Fence Electrode Technology for high sensitivity and contamination resistance
- Intrinsically safe for use in hazardous areas without explosion proof enclosure
- Selectable detection range of 0-10, 0-100 or 0-1000 ppm
- Diffusive monitoring with no pump required
- Scaled 4-20 mA analogue output
+ more in the Description tab below
Continuous, intrinsically safe VOC monitoring for hazardous areas
The TVOC is the first fixed ATEX approved photoionisation detector (PID) for the continuous detection and measurement of total volatile organic compounds (VOCs). Its intrinsically safe design means there is no need for an explosion proof enclosure, and its patented Fence Electrode Technology delivers high sensitivity with resistance to humidity and contamination.
With an intelligent 4-20 mA analogue output, TVOC can be simply integrated into a DCS control system to give warning or control of high VOC levels in the working environment. A selectable detection range of 0-10, 0-100 or 0-1000 ppm and a 10.6 eV lamp make it flexible across applications.
TVOC uses a diffusive sample technique that results in fewer contamination issues than pumped systems, reducing lamp cleaning and servicing requirements. It is simple to install, service and calibrate, requires no hot work permit, and the PID sensor is accessible and changeable in a matter of seconds. Although this product is no longer available for sale, it remains supported by Gastech Technical Services and Support.
Benefits
- Patented Fence Electrode Technology for high sensitivity and contamination resistance
- Intrinsically safe for use in hazardous areas without explosion proof enclosure
- Selectable detection range of 0-10, 0-100 or 0-1000 ppm
- Diffusive monitoring with no pump required
- Scaled 4-20 mA analogue output
- Operates at 5 to 28 V
- LED and 4-20 mA output fault indication
- Includes a 10.6 eV lamp
- Digital numerical display
- Easy access PID sensor for simple servicing
Sensor (PID)
10.6 eV lamp with Ion Science patented Fence Electrode technology
Intrinsically Safe Approvals
II 2 G Baseefa 03ATEX0742 EEx ia II T4; IECEx BAS 04.0033
Ingress Protection Rating
IP65 (dependent on cable glands); Sensor IP54
Power
5-28 VDC, max 65 mA
Output
4-20 mA (requires 8-35 VDC supply)
Range
0-10, 0-100 or 0-1000 ppm, user selectable
Sampling
Diffusion (can be pumped using an adaptor)
Display
7 segment, 4 digit LCD, 4 colour LEDs
Response
Sensor T90 < 5 sec; Detector 1 minute as standard
Accuracy
0-100 ppm <= 2%; 100-1000 ppm <= 5%
Calibration
Magnetically accessed, 100 ppm Isobutylene via calibration kit
Temperature
-20 to 50 C; Humidity 0-95% RH non-condensing
Dimensions
120 x 160 x 70 mm
Weight (packed)
1.47 kg
The TVOC continuously detects and measures total volatile organic compounds (VOCs) using a 10.6 eV photoionisation detector.
Yes, it is intrinsically safe and ATEX approved, so it does not require an explosion proof enclosure.
The range is user selectable at 0-10 ppm, 0-100 ppm or 0-1000 ppm.
No, it uses diffusive sampling with no pump required, although it can be pumped using an adaptor if needed.
It provides a scaled 4-20 mA analogue output that integrates simply into a DCS control system for warning or control of high VOC levels.
