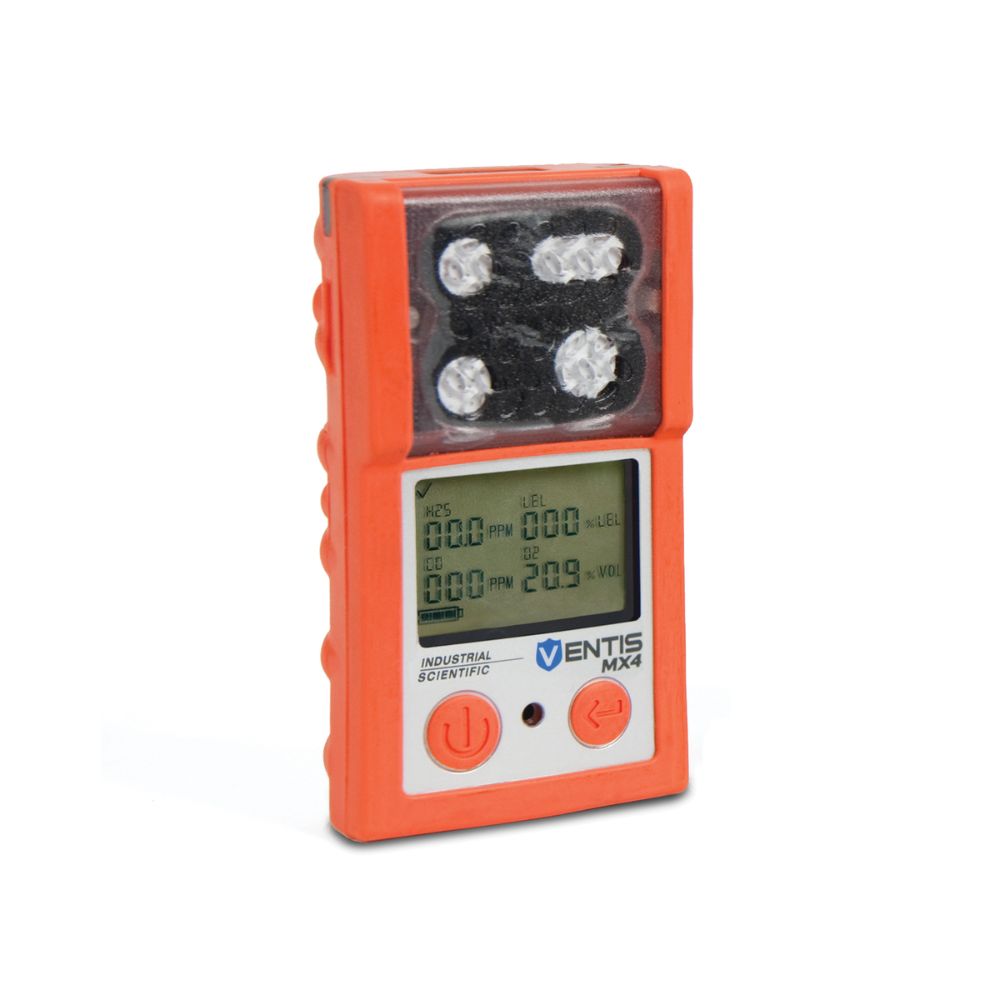

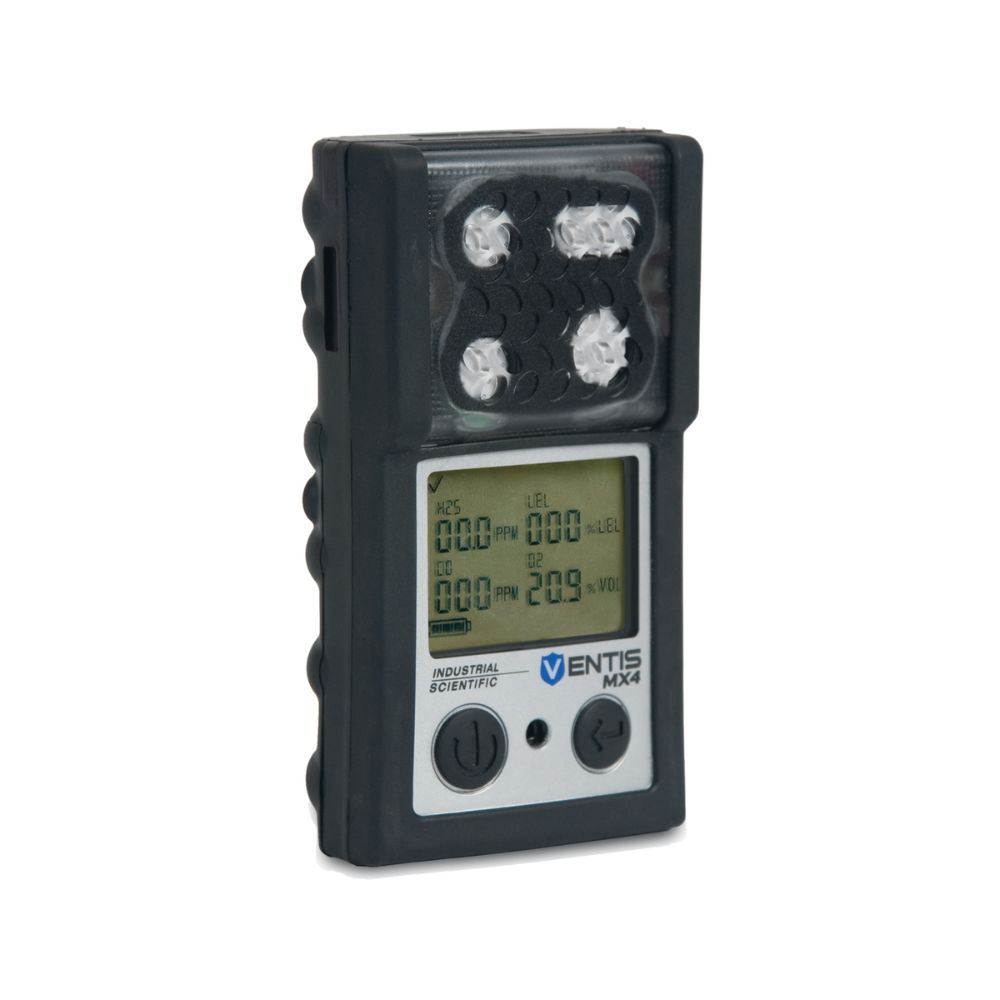

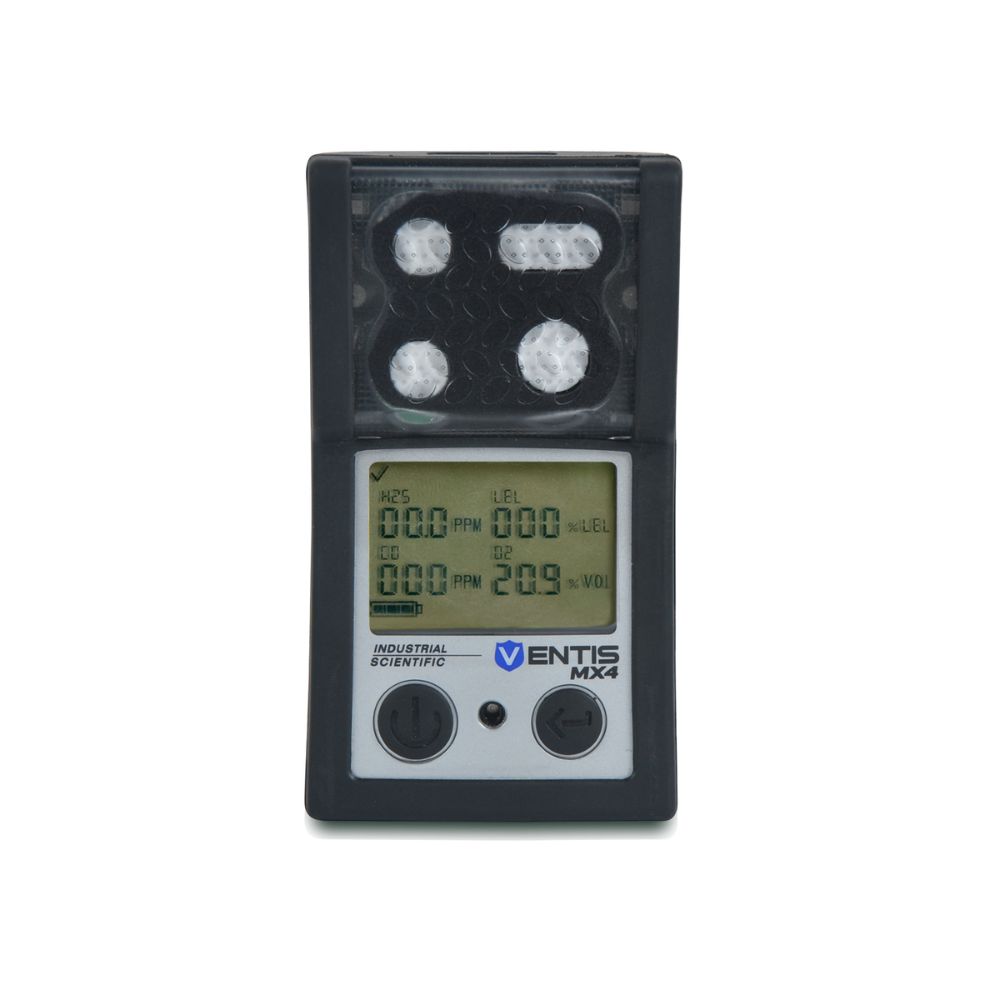

Ventis MX4
4-Gas Portable Gas Detector
The Ventis MX4 by Industrial Scientific is a rugged, lightweight 4-gas monitor with the portability and size of a single-gas monitor. Designed for both personal gas detection and confined space entry, the Ventis MX4 removes the need for a separate pumped monitor, with an optional slide-on pump for confined space pre-entry sampling. With interchangeable sensors, three lithium-ion battery options giving up to 20 hours of runtime, a 4 year warranty on the monitor and standard four gas sensors, and full compatibility with iNet Exchange and the DSX docking stations, the Ventis MX4 is one of the most capable and cost-effective 4-gas monitors available.
KEY BENEFITS

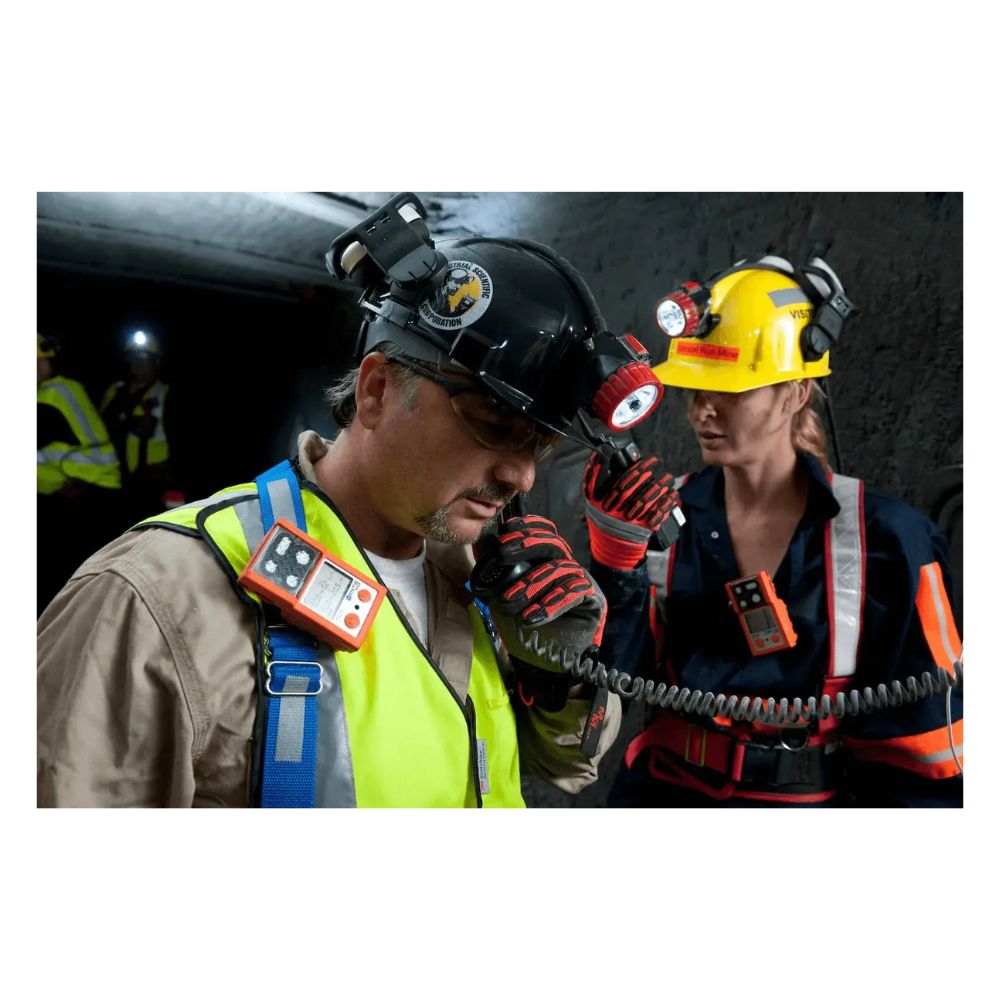

- Super compact design with the portability of a single-gas monitor
- Clear, easy to read backlit LCD display
- Interchangeable sensors: sensor swapped in the field, monitor immediately detects new configuration
- Can utilise alternative toxic sensors including SO2 and NO2 in addition to the standard four-gas configuration
- Three lithium-ion battery options, from a slim 18-hour to an extended 20-hour
+ more in the Description tab below
One Monitor for Personal Protection and Confined Space Entry
The Ventis MX4 was built to solve a common problem on Australian worksites: workers who need a personal gas monitor for daily wear but also need a pumped instrument for confined space pre-entry sampling. The Ventis MX4 handles both. In its standard diffusion configuration it is compact enough to wear comfortably throughout a full shift. With the optional slide-on pump or integral pump, it becomes a capable confined space pre-entry monitor that can draw samples from up to 30 metres away. One instrument, two functions, without the cost of carrying two separate devices.
The sensor range goes beyond the standard four-gas configuration. While the standard setup monitors combustible gas, O2, CO and H2S, the Ventis MX4 supports interchangeable sensors including SO2, NO2, CO with H2 resistance and pentane LEL, giving operators the flexibility to configure the instrument for the specific hazard profile of their site. Sensors are field-interchangeable and the monitor detects the new configuration immediately upon installation.
Built for Long-Term Fleet Value
The Ventis MX4 carries a 4-year warranty on the monitor and standard four-gas sensors, a longer warranty than most comparable 4-gas monitors. Combined with the ability to upgrade firmware, replace batteries and swap sensors, the Ventis MX4 is designed to deliver a lower lifetime cost than disposable or shorter-warranty alternatives. For organisations already using the iNet platform, the Ventis MX4 integrates directly, enabling gas detection as a service with usage data, maintenance alerts and fleet visibility through iNet Control software.
Fleet Management Made Simple

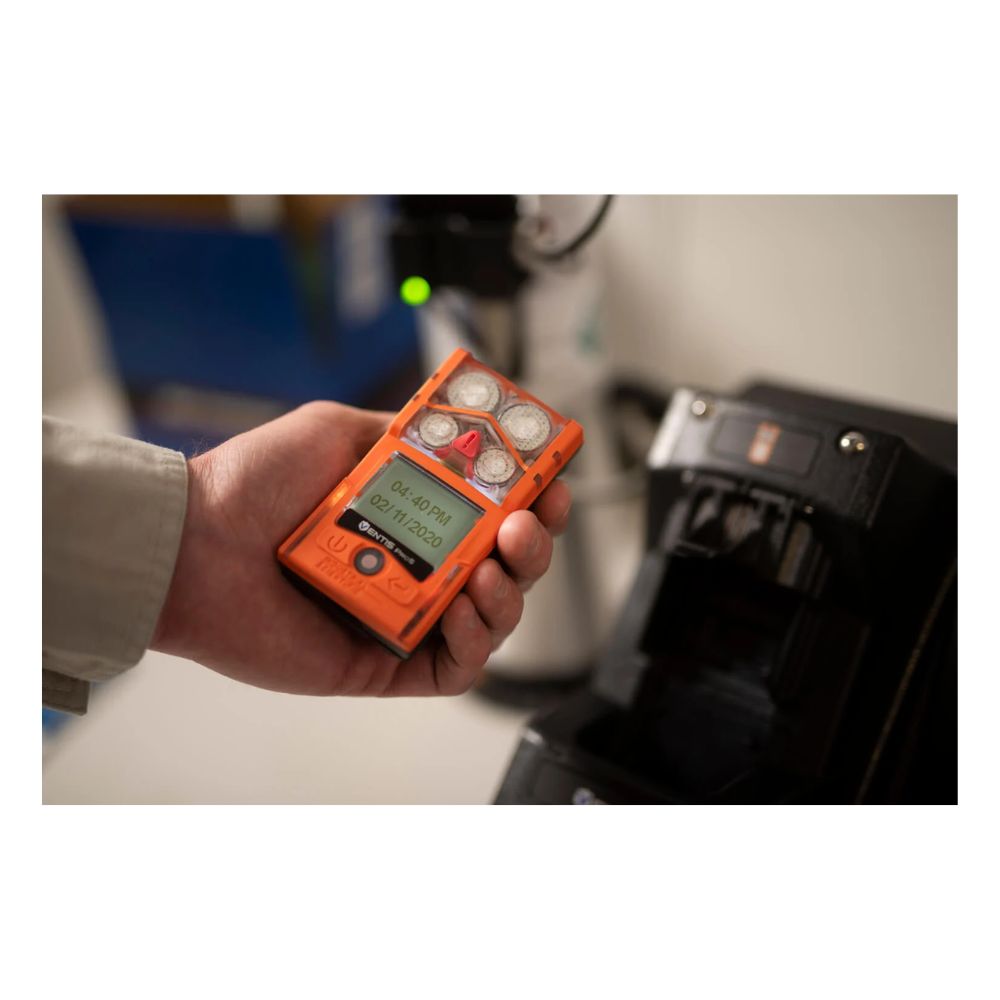

The Ventis MX4 is compatible with the DSXi Docking Station, which automatically bump tests, calibrates, charges and uploads gas monitor data each time a monitor is docked. Dock overdue and maintenance reminders keep fleet compliance on track without manual tracking. For larger fleets, iNet Exchange removes the maintenance burden entirely by reviewing monitor performance and shipping replacement units directly when needed.
Benefits
- Super compact design with the portability of a single-gas monitor
- Clear, easy to read backlit LCD display
- Interchangeable sensors: sensor swapped in the field, monitor immediately detects new configuration
- Can utilise alternative toxic sensors including SO2 and NO2 in addition to the standard four-gas configuration
- Three lithium-ion battery options, from a slim 18-hour to an extended 20-hour
- iNet compatible for hassle-free compliance and fleet management

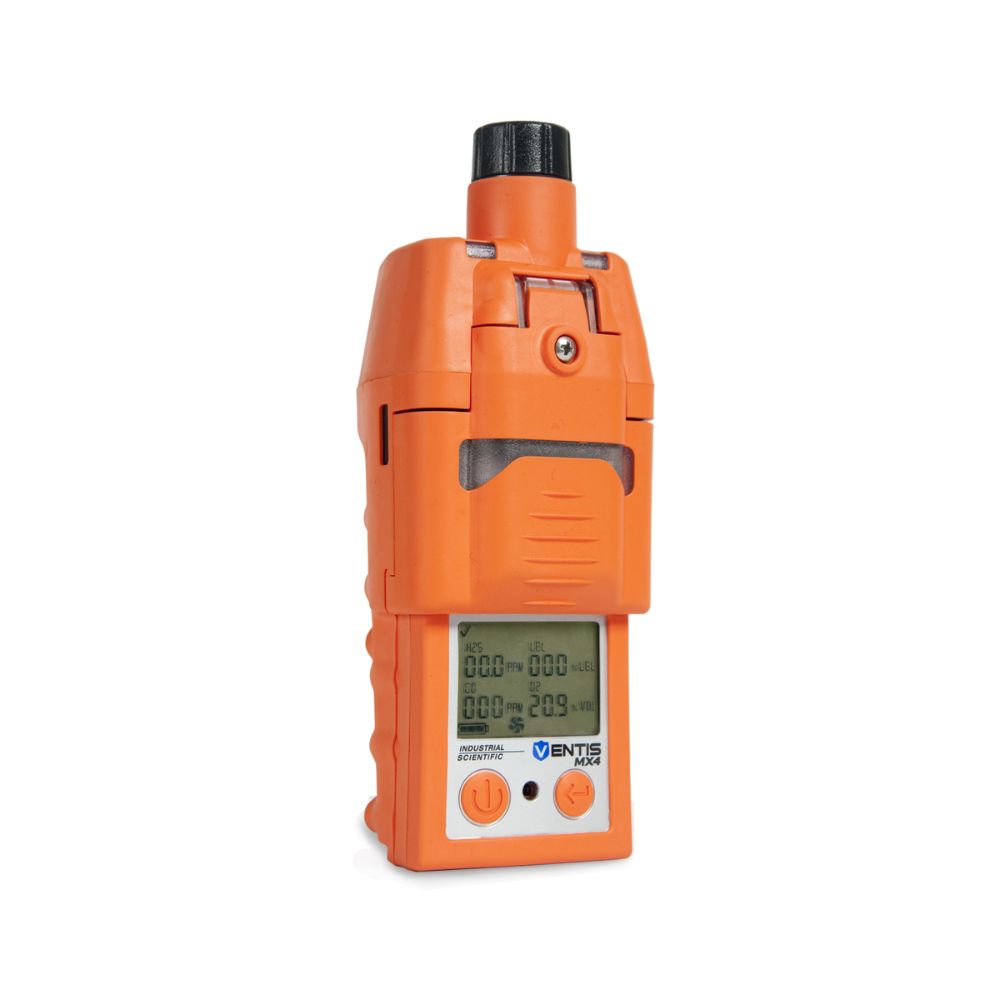

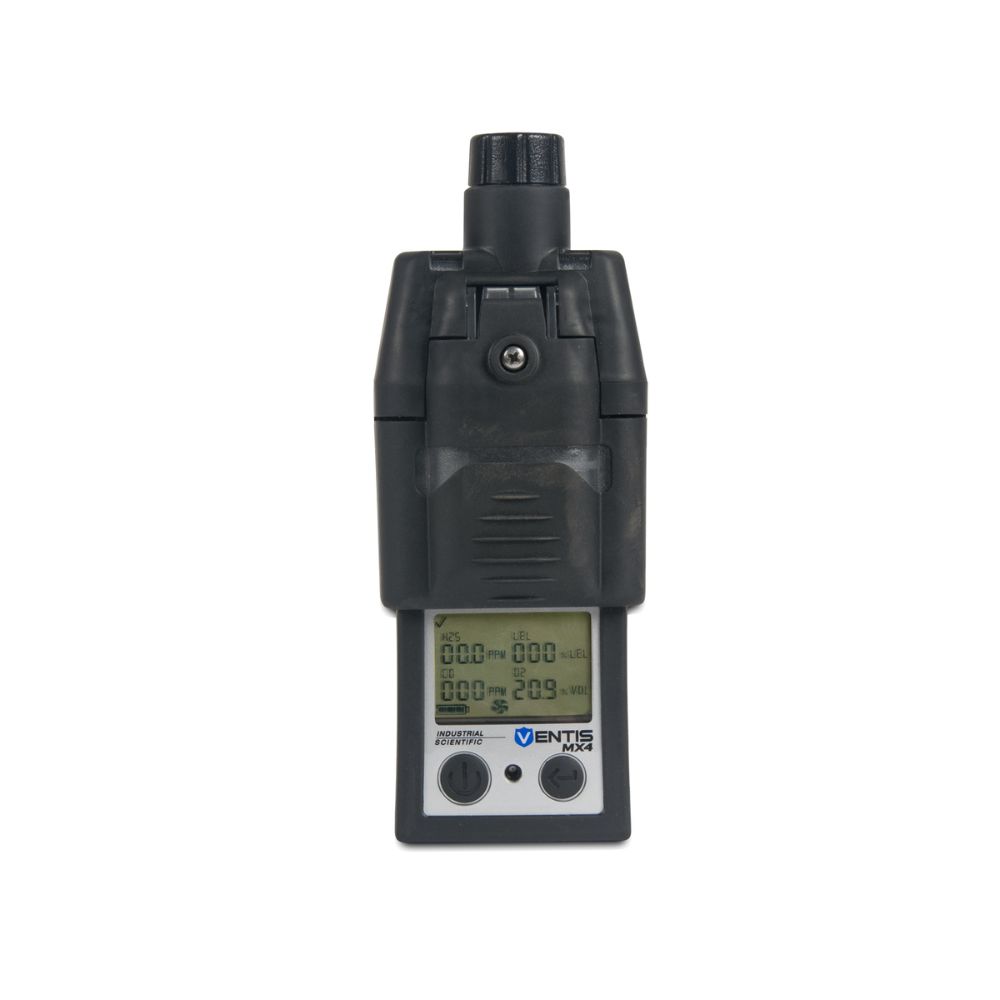

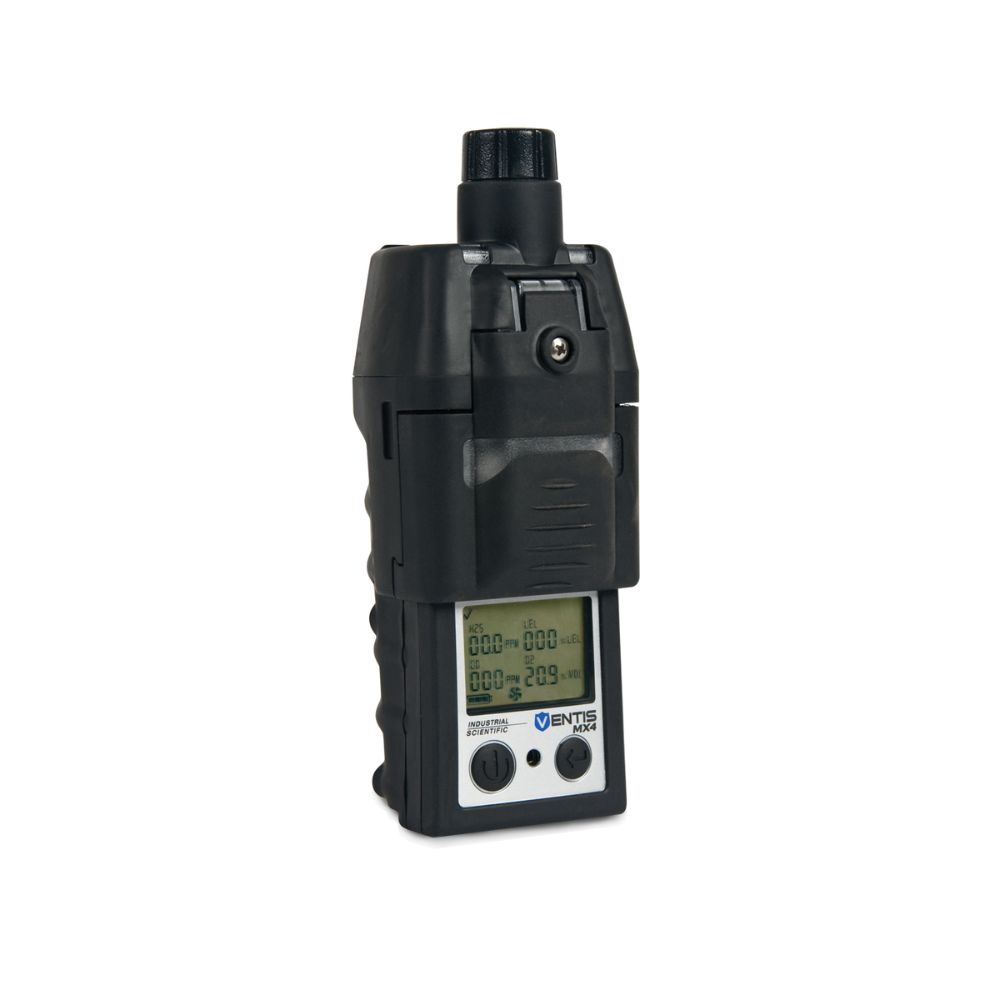

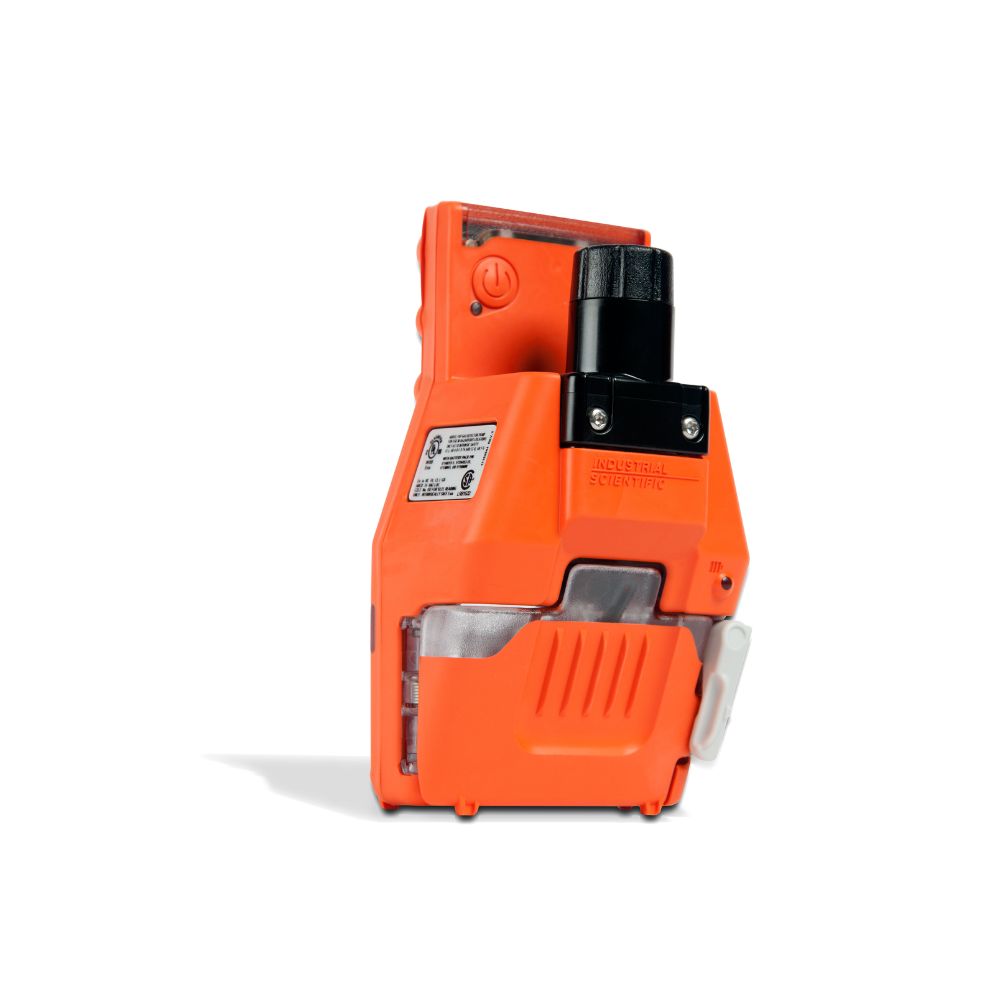

- Integral pump or slide-on pump options available for confined space pre-entry sampling
- High resolution H2S readouts in 0.1 ppm increments
- 4 year warranty on the monitor and standard four gas sensors
- Compatible with DSXi Docking Station for automated bump testing, calibration and charging
Dimensions
103 x 58 x 30 mm (diffusion, Li-ion). 172 x 67 x 66 mm (with pump, Li-ion)
Weight
182 g (diffusion, Li-ion). 380 g (with pump, Li-ion)
Case material
Polycarbonate with protective rubber overmold
Display
Backlit LCD
Sensors
Catalytic bead (LEL/methane), electrochemical (O2, CO, H2S, NO2, SO2, CO/H2 low). Sensors are field-interchangeable
Battery options
Slim extended Li-ion: 18 hours (diffusion). Standard Li-ion: 12 hours (diffusion). Extended range Li-ion: 20 hours (diffusion), 12 hours (with pump). Figures typical at 20°C.
Alarms
Ultra-bright LEDs, audible 95 dB at 30 cm, vibration
Operating temperature
-20°C to 50°C
Humidity
15 to 95% RH non-condensing
Pump sampling distance
Up to 30 m (100 feet) with optional pump
Docking station
DSXi Docking Station for automated bump testing, calibration and data upload
Fleet management
iNet Exchange, iNet Control software
Warranty
Monitor, pump, CO, H2S, O2 and LEL sensors: 4 years. All other components, including other sensors and batteries: 2 years
Certifications
UL, ATEX, IECEx, CSA, ANZEx, INMETRO, KOSHA, China Ex, China CMC, China MA, MSHA
IP rating
IP66 and IP67
Methane
CH4
Carbon Monoxide
CO
Hydrogen Sulphide
H2S
Combustible Gas
LEL
Nitrogen Dioxide
NO2
Oxygen
O2
Sulphur Dioxide
SO2
- Aviation & Transportation
- Chemical Manufacturing
- Confined Space & Compliance
- Energy (Oil & Gas)
- Food & Beverage
- Landfill & Remediation
- Marine & Maritime
- Mining & Minerals
- Power Generation & BESS
- Technology & Semiconductor
- Water & Wastewater
The integral pump is built into the instrument and requires a specific pump-equipped model. The slide-on pump is a separate accessory that attaches to a standard diffusion Ventis MX4, giving the operator the flexibility to use the instrument in diffusion mode for personal monitoring and add the pump when confined space pre-entry sampling is required.
Yes. The Ventis MX4 supports field-interchangeable sensors. When a sensor is swapped, the monitor immediately detects and adjusts to the new sensor configuration.
New purchase, hire, or through iNet Exchange, where a monthly fee covers the instrument, sensors, calibration gas and replacement units rather than buying outright.
The monitor, pump and standard CO, H2S, O2 and LEL sensors carry a 4 year warranty. All other components, including other sensors and batteries, are covered for 2 years.
Yes. The Ventis MX4 is fully compatible with iNet Exchange, Industrial Scientific's gas detector subscription service that eliminates maintenance and repairs by automatically shipping replacement monitors when needed.
The Ventis MX4 is compatible with the Industrial Scientific DSXi Docking Station, which automatically bump tests, calibrates, charges and uploads data each time the monitor is docked.
