ARA-X
Docking Station for ARA-X4 Gas Detectors

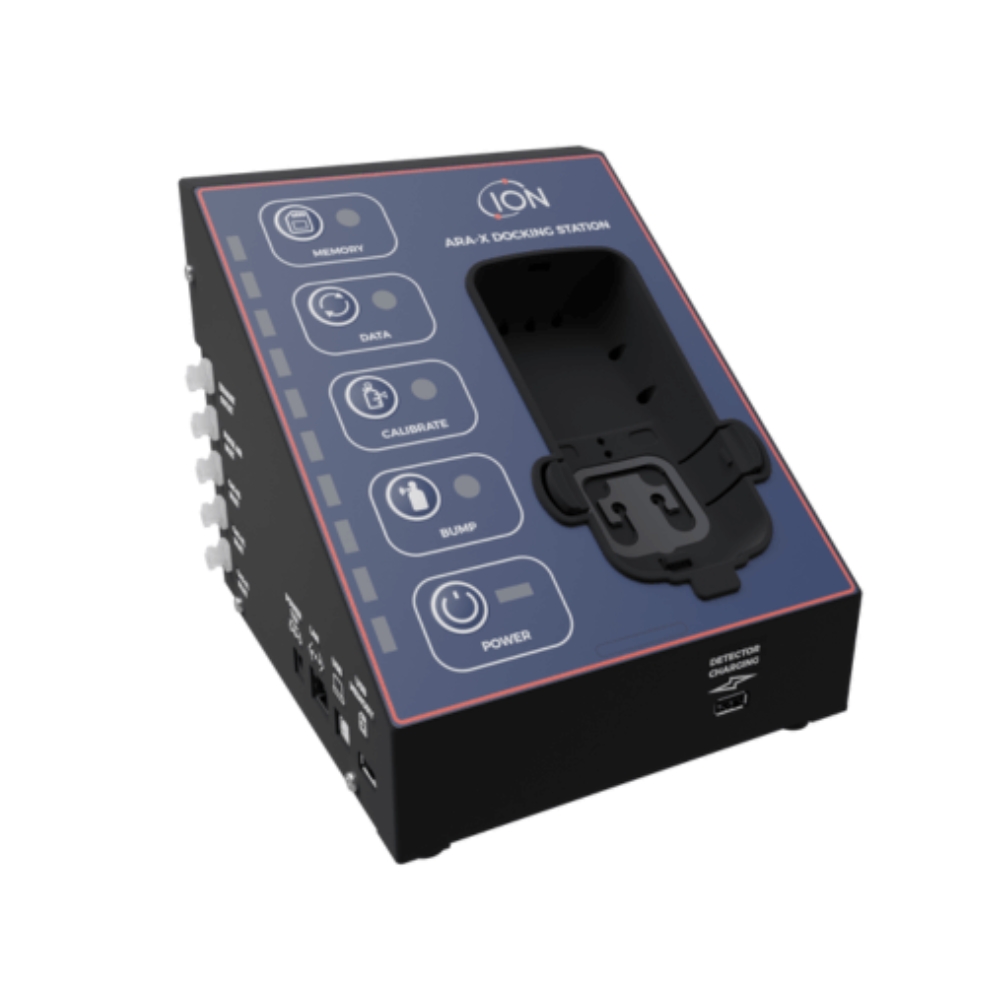

The ARA-X Docking Station by ION Science is a bump test and calibration station for the ARA-X4 multi gas detector. Single button operation runs bump tests, calibration and alarm verification, and the dock automatically logs the serial number, test date and time. A universal cradle suits all ARA-X4 sensor configurations, and an internal battery gives up to 4 hours of standalone use without mains power.
KEY BENEFITS
- Universal cradle and multiple gas inlets suit all ARA-X4 sensor configurations
- Automated bump testing, calibration and alarm verification with single-button operation
- Automatically logs ARA-X4 serial numbers, test dates and times for compliance records
- Internal Li-ion battery gives up to 4 hours of standalone use without mains power
- User configurable firmware and configuration updates via USB flash drive
+ more in the Description tab below
Automated Compliance for the ARA-X4
The ARA-X Docking Station takes the hassle out of ARA-X4 maintenance. Place the ARA-X4 in the cradle and press the button. The station runs the bump test, calibration and alarm verification automatically.
It also logs the ARA-X4’s serial number, test date and time, so records are kept without manual entry. An LED progress indicator shows each step, and red and green LEDs show the result.
One Cradle for All Configurations
The universal cradle suits all ARA-X4 instruments, whatever sensors are fitted. Multiple gas inlet ports, with three span inlets and one zero inlet, mean an instrument can be calibrated without swapping gas connections. Two built in pumps draw gas at 150 to 600 mL/min.
Built for Quick Deployment
The internal Li-ion battery gives up to 4 hours of standalone use, so the dock can be set up quickly in the field without mains power. For permanent installations, it runs on continuous power from its 12 V adapter. Its desk mounted design keeps turnaround times quick.
Data and Updates
Test records save to an external USB memory stick, with a time and date stamp. The dock connects through Ethernet, USB-A and USB-B, and user configurable firmware and configuration updates are loaded via USB flash drive.
The ARA-X Docking Station comes with a 12 month warranty, extendable to 24 months when registered on the ION Science website. It’s designed for use in non hazardous locations.
Benefits
- Universal cradle and multiple gas inlets suit all ARA-X4 sensor configurations
- Automated bump testing, calibration and alarm verification with single-button operation
- Automatically logs ARA-X4 serial numbers, test dates and times for compliance records
- Internal Li-ion battery gives up to 4 hours of standalone use without mains power
- User configurable firmware and configuration updates via USB flash drive
- Designed specifically for the ARA-X4 multi-gas detector
- For use in non-hazardous locations only
- Two built in pumps, from 150 to 600 mL/min
- Ethernet, USB-A and USB-B connections, with records saved to a USB memory stick
- 12 month warranty, extendable to 24 months when registered with ION Science
Compatible instrument
ARA-X4
Tests
Bump, calibration, data transfer, audible alarm, visual alarm, memory space remaining
Dimensions
188 x 185 x 200 mm
Weight
2.4 kg
Gas connections
5 tube couplers, 1/8 inch hose barb: 3 test gas (span) inlets, 1 purge air (zero) inlet, 1 exhaust outlet
Pumps
2 built in, 150 to 600 mL/min
Display
4 functional and 10 indication LEDs (red and green). Power LED: blue on battery, white on external power
Battery
Li-ion pack, 7.4 V, 2,750 mAh. Up to 4 hours standalone. Charges in up to 4 hours
Power supply
Input 110 to 240 V AC, 50/60 Hz. Output 12 V DC, 1.5 A
Data storage
External USB 2.0 memory stick (32 GB). Time and date stamp
Communication
USB 2.0, RJ45 Ethernet 10/100. IrDA to the instrument
Updates
User configurable firmware and configuration updates via USB flash drive
Operating temperature
5°C to 40°C
Storage temperature
-10°C to 60°C
Safety rating
For use in non hazardous locations only
Approvals
CE
Warranty
12 months standard. 24 months when registered with ION Science
- Aviation & Transportation
- Chemical Manufacturing
- Confined Space & Compliance
- Energy (Oil & Gas)
- Food & Beverage
- Landfill & Remediation
- Marine & Maritime
- Medical & Healthcare
- Mining & Minerals
- Power Generation & BESS
- Technology & Semiconductor
- Water & Wastewater
The ARA-X Docking Station is designed exclusively for the ARA-X4 multi-gas detector from ION Science. For ARA single gas detectors, the ARA DOCK4 is the appropriate docking station.
No. The station operates on an internal battery for standalone deployment without mains power.
The ARA-X Docking Station supports user configurable firmware and configuration updates, loaded via USB flash drive. Talk to our Technical Consultants about updating ARA-X4 instrument firmware.
No. The ARA-X Docking Station is rated for use in non-hazardous locations only.
It comes with a 12 month warranty as standard, which extends to 24 months when the dock is registered on the ION Science website.
