AutoRAE 2
Automatic Calibration System for RAE Gas Detectors
The AutoRAE 2 by Honeywell is an automatic test and calibration system for RAE Systems portable gas monitors that makes compliance as easy as pressing a button. Cradle the monitor and the system takes care of bump testing, calibration and battery charging. It can be as simple as a single standalone cradle for one instrument, with no computer needed, or a networked controller based system supporting up to 10 cradles and 5 calibration gases or gas mixtures.
KEY BENEFITS
- One-touch bump testing and single-button calibration: no multi-step manual process
- Use a single standalone cradle with no PC needed, or a controller with up to 10 cradles
- Up to 5 calibration gases connected at once on controller based systems
- Built-in pump at 500 mL/min on the controller for pumped instruments
- Controller records instrument datalogs automatically to a 2 GB SD card with security lock
+ more in the Description tab below
Calibration Compliance at the Press of a Button
The AutoRAE 2 makes instrument testing and calibration compliance as easy as pressing a button. Dock a compatible RAE Systems monitor, and the system takes care of bump testing, calibration and battery charging.
It’s flexible and modular, so it can be set up to suit your calibration and record keeping needs, from a single cradle at a field site to a networked system for a large fleet.

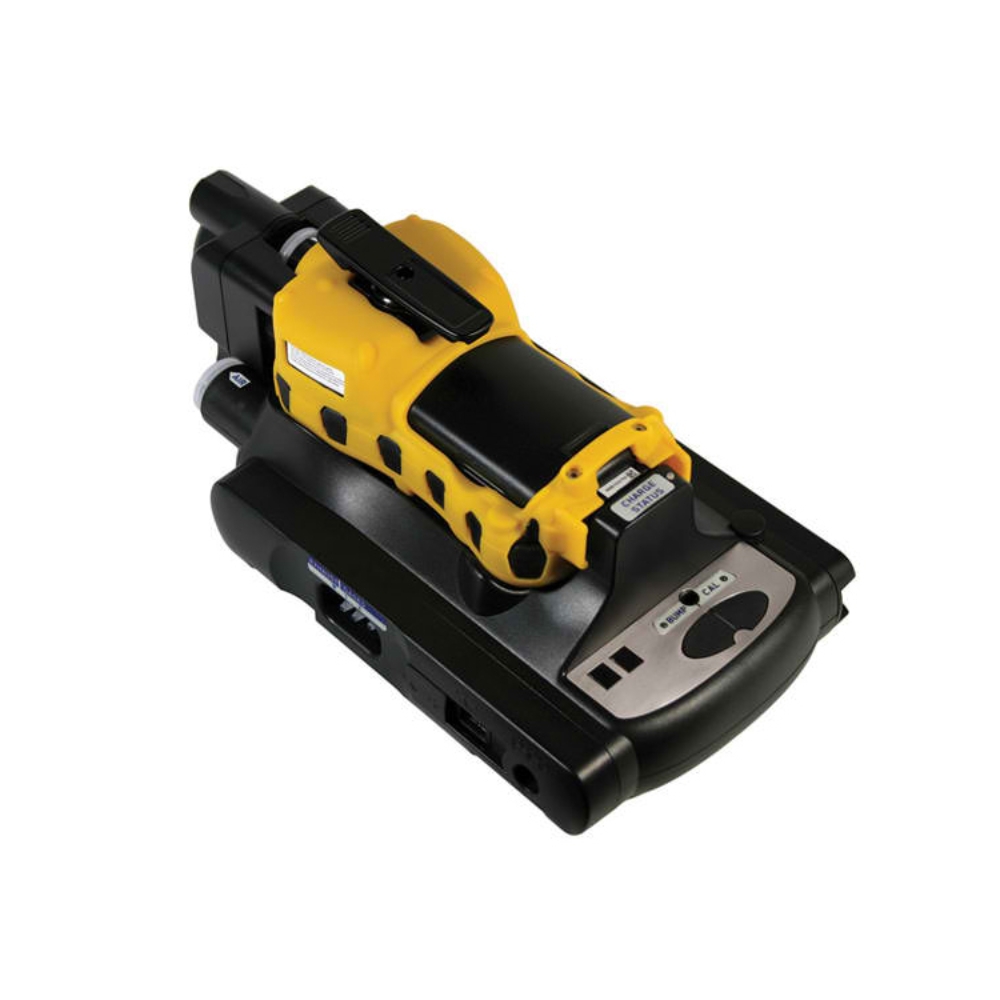

Standalone Cradle
In its simplest form, the AutoRAE 2 is a single cradle deployed in standalone mode, testing and calibrating one instrument at a time. It doesn’t need a computer to operate, which makes it well suited to field use.
A standalone cradle has two buttons, Bump and Cal, and tri colour LEDs to show the result. It connects to a PC over USB for data and configuration, and it can print results directly to a serial (RS-232) printer.
Controller Based System for Larger Fleets

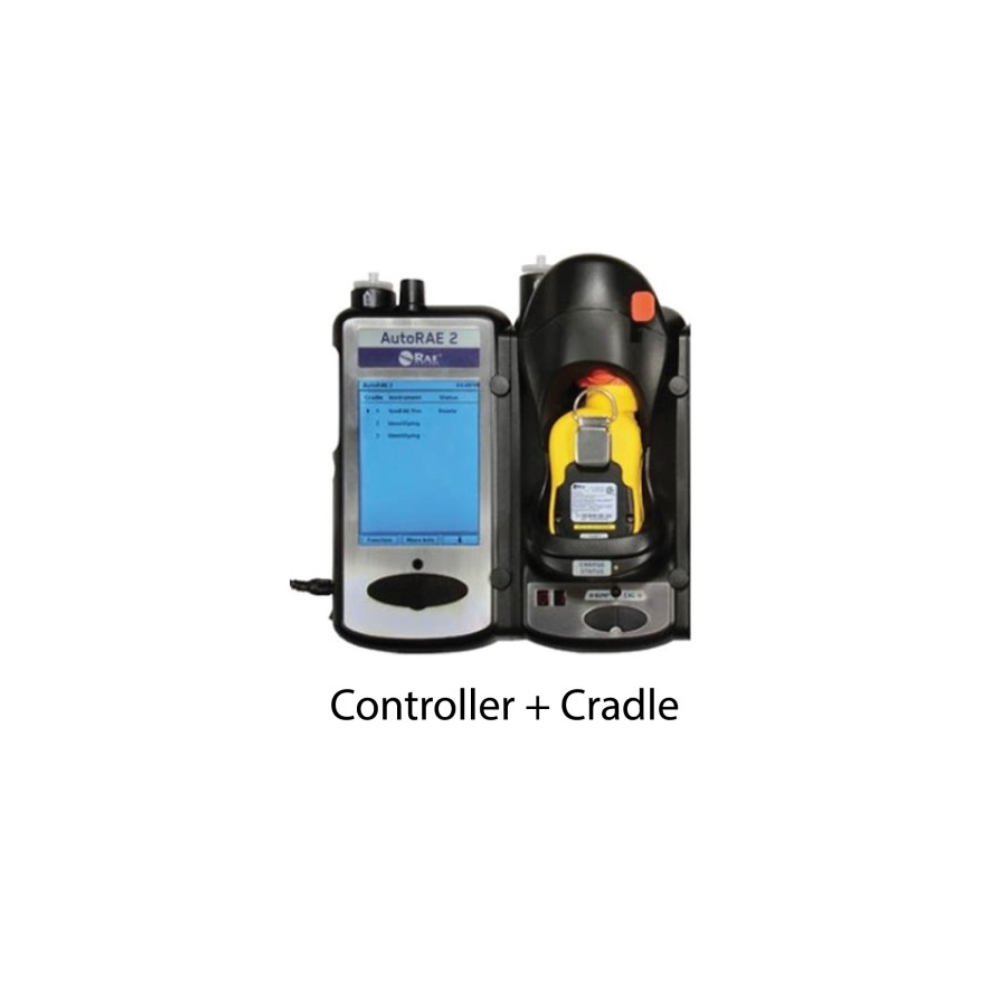

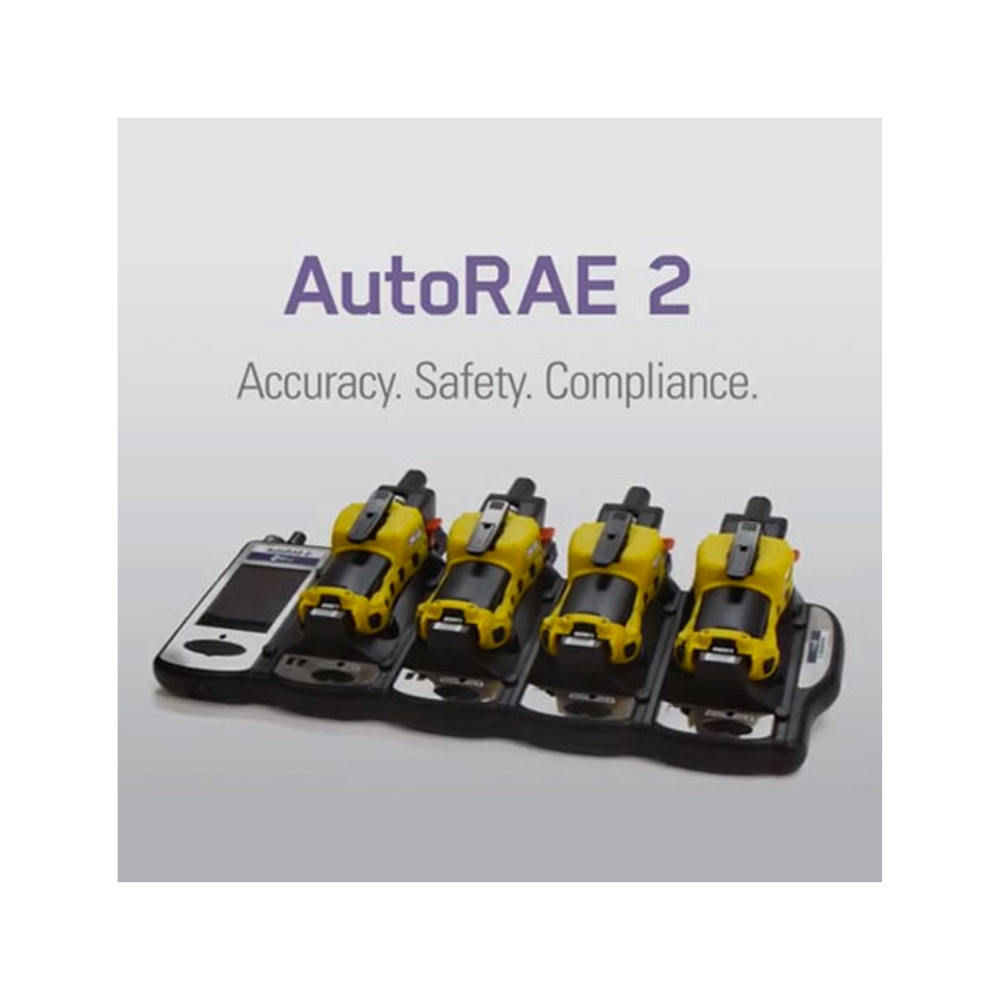

For larger fleets, the AutoRAE 2 controller supports up to 10 cradles, in any mix and any order. Up to 5 distinct calibration gases or gas mixtures can be connected at the same time, so instruments with complex sensor setups can be calibrated without swapping cylinders.
The controller has a 5.7 inch colour LCD, a built in pump and a 2 GB SD card with a security lock, which records instrument datalogs automatically. It connects to a network through an RJ-45 Ethernet port or an optional Wi-Fi module, and it’s configured through ProRAE Studio II software, over the network if needed.
Firmware Updates
The AutoRAE 2 itself is firmware upgradeable, to protect your investment. It also has an optional automatic instrument firmware update function, keeping compatible RAE Systems monitors current when they’re docked.

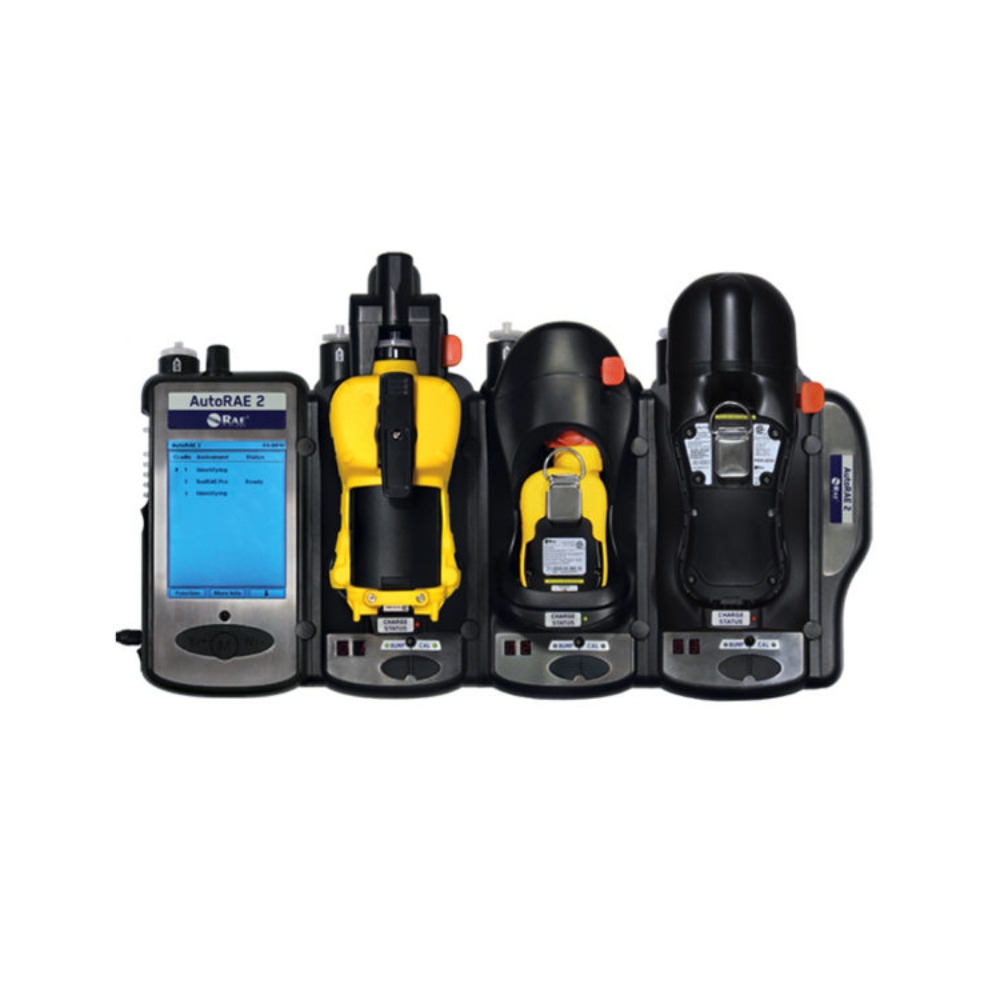

Compatible Instruments
AutoRAE 2 cradles are available for the ToxiRAE Pro family (ToxiRAE Pro, ToxiRAE Pro LEL, ToxiRAE Pro PID and ToxiRAE Pro CO2), the QRAE 3 and pumped MultiRAE models (MultiRAE, MultiRAE Pro and the pumped MultiRAE Lite). One cradle type covers all ToxiRAE Pro models, using the included adapters. The diffusion MultiRAE Lite isn’t supported.
The controller and cradles can sit on a bench or mount on a wall using a standard TS35 DIN rail.
Benefits
- One-touch bump testing and single-button calibration: no multi-step manual process
- Use a single standalone cradle with no PC needed, or a controller with up to 10 cradles
- Up to 5 calibration gases connected at once on controller based systems
- Built-in pump at 500 mL/min on the controller for pumped instruments
- Controller records instrument datalogs automatically to a 2 GB SD card with security lock
- 5.7-inch colour LCD on the controller for clear operation and review of results
- Firmware-upgradeable via ProRAE Studio II software to protect investment
- Automatic instrument firmware update option keeps RAE Systems instruments current
- Bench-top or wall-mounted installation via standard TS35 DIN rail
- Cradles for the ToxiRAE Pro family, QRAE 3 and pumped MultiRAE family monitors
Controller size
143 x 265 x 44 mm
Controller weight
0.86 kg
Cradle weight
0.86 to 0.98 kg depending on instrument model
Controller display
5.7-inch TFT 320 x 240 colour LCD
Cradle display
2 x seven-segment LEDs
Controller buttons
3: Mode, Y/+ and N/-
Cradle buttons
2: Bump and Cal
Audible alarm
90 dB at 30 cm (controller and cradles)
Gas inlets
Controller: 6 inlets (1 fresh air, 5 configurable calibration gas), 1 exhaust port. Cradle: 3 inlets (1 fresh air, 2 configurable calibration gas), 1 exhaust port
Gas connectors
200-series barbs, 1/8-inch ID tubing
Gas regulators
Demand-flow 0 to 1,000 psig / 70 bar
Pump flow rate
Controller: 500 mL/min built in. Cradle: not applicable for pumped instruments, 400 mL/min typical for diffusion instruments
Max cradles per controller
Up to 10 in any mix and order
Data storage
Controller: 2 GB SD card with security lock, records instrument datalogs automatically. Cradle: none, data stored only on PC
PC communications
Controller: USB Type B, RJ-45 Ethernet, optional WiFi. Cradle: USB Type B
Printer support
Cradle supports direct printing on serial RS-232 printers
System configuration
ProRAE Studio II software
Wall mounting
Standard TS35 DIN rail
Power supply
Controller: 110 to 240V input, 12V output, 7.5A. Cradle: 110 to 240V input, 12V, 1.25A output
Operating temperature
0°C to 50°C
Humidity
5 to 95% RH non-condensing
Compliance
CE
Warranty
2-year limited on controller and cradles
- Aviation & Transportation
- Chemical Manufacturing
- Confined Space & Compliance
- Energy (Oil & Gas)
- Food & Beverage
- Landfill & Remediation
- Marine & Maritime
- Medical & Healthcare
- Mining & Minerals
- Power Generation & BESS
- Technology & Semiconductor
- Water & Wastewater
No. A standalone cradle tests and calibrates without a PC. It doesn't store data itself, so results are transferred to a PC over USB, or printed on a serial printer. In a controller based system, the controller records datalogs to its 2 GB SD card. ProRAE Studio II software is used for configuration.
The controller-based system supports up to 10 cradles simultaneously in any mix or order. Each cradle handles one instrument at a time. The standalone cradle (without a controller) supports one instrument only.
The pumped version of the MultiRAE Lite is compatible. The diffusion version is not supported.
Up to 5 distinct calibration gases or gas mixtures can be connected at the same time on systems with the AutoRAE 2 controller. A standalone cradle has 2 calibration gas inlets.
Yes. The optional automatic firmware update function applies available firmware updates to compatible RAE Systems instruments automatically when they are docked.
The AutoRAE 2 is managed through ProRAE Studio II software for system configuration, data download and compliance record management.
