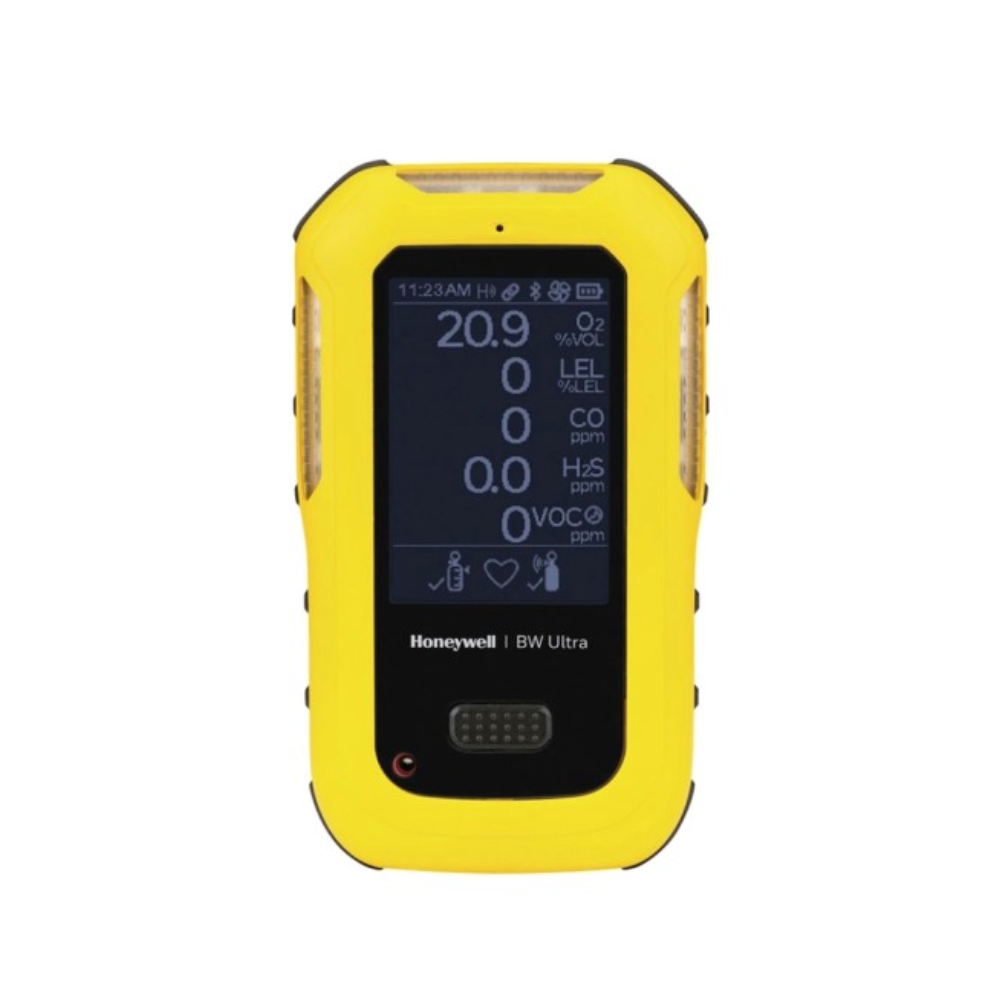

BW Ultra
Five Gas Detector
i
This product has been discontinued and is no longer available. In many cases we can still service and calibrate it. Talk to our team about spares or alternatives.
The Honeywell BW Ultra is a pumped five-gas detector designed for sampling and monitoring confined spaces before and after entry. It combines enhanced sensor technology, a large high-resolution display and Bluetooth connectivity in a rugged, easy-to-use unit.
KEY BENEFITS
- Purpose-built for confined-space sampling before and after entry
- Large 8.1 cm (3.2 inch) high-resolution dot matrix display
- Internal pump samples from up to 22.9 m (75 ft)
- New 1-Series sensors for enhanced reliability
- IP66/68 rated against dust and water ingress
+ more in the Description tab below
Confident Five-Gas Monitoring for Confined Spaces
The Honeywell BW Ultra is a pumped, five-gas detector built specifically for sampling and monitoring confined spaces before and after entry. It brings together enhanced sensor technology, clear visibility on readings, comfort and connectivity to give hole watch and entry teams an intuitive, reliable experience that helps prevent gas safety incidents.
A large 8.1 cm (3.2 inch) high-resolution dot matrix display makes it easy to read the level of each gas at a glance, even in demanding conditions. The internal pump draws samples from up to 22.9 m (75 ft), so you can clear a space for entry and continuously monitor it while workers are inside.
With an IP66/68 rating, the BW Ultra shrugs off dust and survives water ingress including submersion up to 1.2 m, so it keeps working after a drop into a vat or a shift in a dust-prone environment. New 1-Series sensors add reliability, and Bluetooth Low Energy with TouchConnect makes bump tests, calibration and set-point changes quick.
Up to 18 hours of battery life and 45 days of data logging round out a detector engineered to protect workers and operations through the toughest permit-required tasks.
Benefits
- Purpose-built for confined-space sampling before and after entry
- Large 8.1 cm (3.2 inch) high-resolution dot matrix display
- Internal pump samples from up to 22.9 m (75 ft)
- New 1-Series sensors for enhanced reliability
- IP66/68 rated against dust and water ingress
- Up to 18 hours of battery life
- Bluetooth Low Energy with Honeywell TouchConnect
- 45 days of data logging at 15-second intervals
- Visual, vibrating and 95 dB audible alarms
- Remote monitoring for an added layer of protection
Size
14.8 x 8.5 x 4.0 cm
Weight
411 g (with clip)
Operating Temperature
-20°C to +50°C
Humidity
5% to 95% RH (non-condensing) continuous
Ingress Protection
IP66/68
Alarms and Type
Visual, vibrating, audible (95 dB); Low, High, TWA, STEL, Over Limit
Typical Battery Life
18 hours (14 hours with PID or IR sensor)
Pump Draw
Sample from up to 22.9 m (75 ft)
Connected Worker
Bluetooth Low Energy (BLE); Honeywell TouchConnect
Event Logging
30 alarm events and 10 bump events
Data Logging
45 days based on 8-hour shifts logging every 15 seconds
Certifications and Approvals
Class I, Div 1, Group A, B, C, D; Class I, Zone 0, Group IIC ATEX
Yes. It is designed specifically to sample and monitor confined spaces before and after entry, clearing a space for entry and continuously monitoring it while workers are inside.
The internal pump can draw a sample from up to 22.9 m (75 ft) away.
With an IP66/68 rating it is protected from dust and water ingress, including high-pressure spray and submersion up to 1.2 m.
Up to 18 hours of runtime, or around 14 hours when fitted with a PID or IR sensor, at -20°C.
Yes. Bluetooth Low Energy and Honeywell TouchConnect let you enter bump or calibration mode and change set-points easily.
