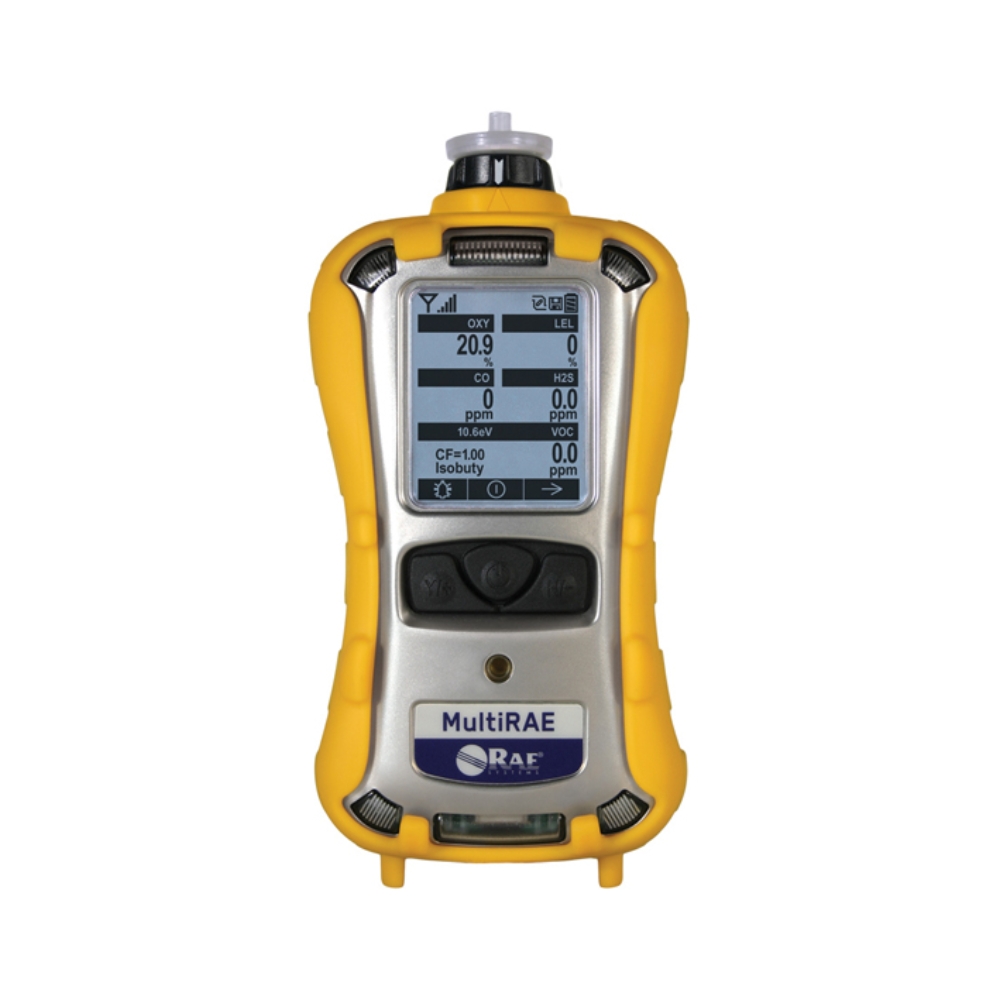

MultiRAE
Wireless Portable Multi-Gas Detector
The Honeywell MultiRAE is a pumped, wireless multi gas monitor that measures up to six gases at once from 25 interchangeable sensor options. It combines VOC detection via PID with toxic gases, combustibles, oxygen and CO2 in one instrument. Honeywell describes its PID as the best in its class, with a 0 to 5,000 ppm range and 0.1 ppm resolution, making it a strong choice for industrial hygiene, leak detection and HazMat response.
KEY BENEFITS
- Up to 6 gases monitored simultaneously from over 25 interchangeable sensor options
- PID sensor covers VOCs across a broad range of industrial chemicals
- Wireless connectivity to ProRAE Guardian and EchoView Host for real-time remote monitoring
- Man Down alarm with real-time remote notification for lone worker protection
- Six months of continuous datalogging for five sensors at one minute intervals
+ more in the Description tab below
Broad Multi Gas Coverage With Wireless Visibility
The MultiRAE gives industrial hygienists, safety officers and field teams one instrument for a wide range of gas hazards. It takes 25 intelligent, interchangeable sensors, including a PID for VOCs, NDIR for combustibles and CO2, catalytic LEL, and electrochemical sensors for toxic gases and oxygen.
Workers choose the sensor combination that matches the hazards on their site. Intelligent sensors store their own calibration data, so they can be swapped in the field.
Advanced VOC Detection
The MultiRAE’s 10.6 eV PID measures VOCs from 0 to 5,000 ppm with 0.1 ppm resolution. On board libraries cover 190 VOCs and 55 combustible gases, so readings can be corrected for the specific compound being measured.
That makes it well suited to industrial hygiene, personal protection, leak detection and HazMat response, in industries such as chemical, oil and gas, pharmaceutical, aviation and shipping.
Live Wireless Monitoring
With the optional built in wireless modem, the MultiRAE sends live gas readings and alarm status to ProRAE Guardian or an EchoView Host. Safety managers see what’s happening from any location, so the response can start as soon as an alarm goes off. Remote monitoring may need additional equipment or software licences.
Alarms come through five ways: a 95 dB buzzer, vibration, flashing red LEDs, an on screen message and a remote wireless notification. The Man Down alarm triggers a pre alarm, then a real time wireless notification if it isn’t cancelled.
Pumped Sampling, Easy Maintenance
The built in pump draws samples at an average of 250 cc/min and shuts off automatically if flow drops too low. That makes the MultiRAE suited to remote sampling as well as personal monitoring.
The AutoRAE 2 system handles fully automatic bump testing and calibration. Data download, setup and upgrades run through the desktop cradle, travel charger or AutoRAE 2. The MultiRAE logs data continuously, storing six months of readings for five sensors at one minute intervals.
For a lighter diffusion option in the same family, see the MultiRAE Lite.
Benefits
- Up to 6 gases monitored simultaneously from over 25 interchangeable sensor options
- PID sensor covers VOCs across a broad range of industrial chemicals
- Wireless connectivity to ProRAE Guardian and EchoView Host for real-time remote monitoring
- Man Down alarm with real-time remote notification for lone worker protection
- Six months of continuous datalogging for five sensors at one minute intervals
- Automatic bump testing and calibration with AutoRAE 2
- 19 language options for international deployment
- IP65 rated, and compliant with the MIL-STD-810G performance standard
- CSA, ATEX and IECEx certified for hazardous locations
- 2-year warranty on non-consumable components. 3-year warranty on CO and H2S sensors
Dimensions
193 x 96.5 x 66 mm
Weight
880 g
Gases
Up to 6 simultaneously from over 25 interchangeable sensor options
Sampling
Built in pump. Average flow rate 250 cc/min. Automatic shut off in low flow conditions
Battery
Rechargeable Li-ion: about 12 hours, recharges in under 6 hours. Extended Li-ion: about 18 hours, recharges in under 9 hours. Alkaline adapter (4 x AA): about 6 hours. Figures for non wireless monitors
Display
Monochrome graphical LCD (128 x 160) with backlight and automatic screen flip
Keypad
3 operation and programming keys
Alarms
Audible 95 dB, vibration, flashing LEDs, on-screen indication, Man Down alarm
Datalogging
Continuous, 6 months for 5 sensors at 1 minute intervals. User configurable from 1 to 3,600 seconds
Wireless
ProRAE Guardian, EchoView Host
Wireless range
About 200 m to EchoView Host, RAEMesh Reader or RAEPoint. About 100 m to RAELink3 Mesh modem or a Wi-Fi access point
Operating temperature
-20°C to 50°C
Humidity
0 to 95% RH non-condensing
IP rating
IP65
Calibration
Automatic with AutoRAE 2 or manual
Languages
19 languages
Certifications
CSA Class I, Division 1, Groups A, B, C and D, T4. ATEX II 1G Ex ia IIC T4 Ga and I M1 Ex ia I Ma. IECEx and ANZEx Ex ia IIC T4 Ga and Ex ia I Ma (Ex ia d IIC T4 Gb with IR sensor)
Warranty
2 years non-consumable components. 3 years CO and H2S sensors. 4 years liquid O2 sensors. 1 year all other sensors and consumables
Ethylene Oxide (ETO)
C2H4O
Methyl Mercaptan (Methanethiol)
CH3SH
Methane
CH4
Chlorine
Cl2
Chlorine Dioxide
ClO2
Carbon Monoxide
CO
Carbon Dioxide
CO2
Hydrogen Sulphide
H2S
Formaldehyde (CH2O)
HCHO
Hydrogen Cyanide
HCN
Combustible Gas
LEL
Ammonia
NH3
Nitric Oxide
NO
Nitrogen Dioxide
NO2
Oxygen
O2
Phosphine
PH3
Sulphur Dioxide
SO2
Volatile Organic Compounds
VOC
- Aviation & Transportation
- Chemical Manufacturing
- Confined Space & Compliance
- Energy (Oil & Gas)
- Food & Beverage
- Landfill & Remediation
- Marine & Maritime
- Medical & Healthcare
- Mining & Minerals
- Power Generation & BESS
- Technology & Semiconductor
- Water & Wastewater

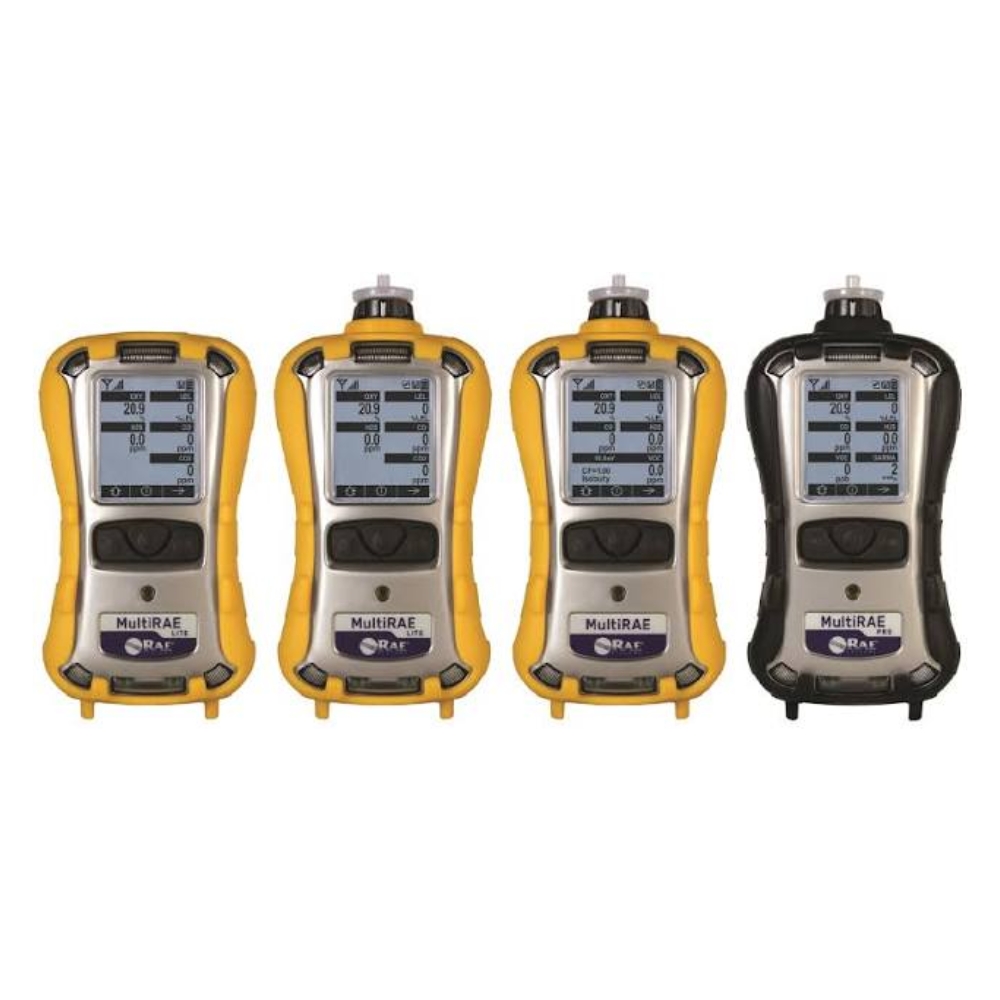

The MultiRAE Lite is the entry-level instrument optimised for personal protection and leak detection in standard industrial applications. The MultiRAE is the mid-range instrument with broader sensor options and wireless capability suited to industrial hygiene and general industry. The MultiRAE Pro is the advanced instrument designed for homeland security, HazMat response and military applications, adding gamma radiation detection and the broadest sensor range.
The MultiRAE has a built in pump for remote sampling and personal monitoring. If you need a diffusion version, the MultiRAE Lite is available in both pumped and diffusion models.
Yes. The MultiRAE transmits real-time readings and alarm status to ProRAE Guardian or EchoView Host via an optional built-in RF modem.
The AutoRAE 2 system handles fully automatic bump testing and calibration for the MultiRAE, reducing the manual effort required to maintain fleet compliance.
