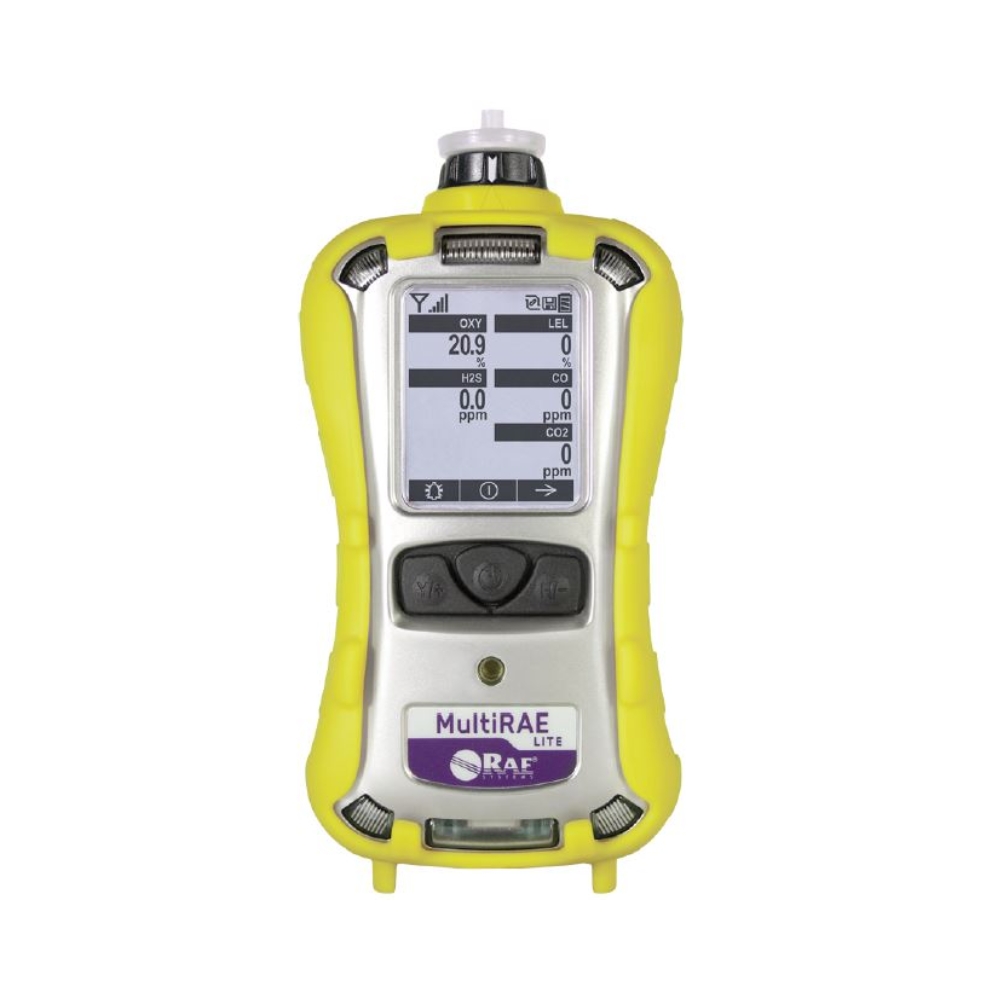

MultiRAE Lite
Portable Multi-Gas Detector
The Honeywell MultiRAE Lite is a one to six gas monitor for personal protection and leak detection, available in pumped and diffusion versions. Honeywell says it has the broadest choice of sensors in its class, with over 25 options including PID for VOCs (pumped version), NDIR for combustibles and CO2, and electrochemical sensors for toxic gases and oxygen. Optional wireless sends live readings and alarm status to ProRAE Guardian or an EchoView Host.
KEY BENEFITS
- Broadest sensor selection in its class: over 25 options for up to 6 gases simultaneously
- Pumped version for remote sampling, or a lighter diffusion version for all day personal monitoring
- Optional wireless connectivity for real-time readings and alarm status at a central command
- Man Down alarm provides automatic protection for lone workers
- IP65 pumped and IP67 diffusion ingress protection ratings
+ more in the Description tab below
Personal Protection and Leak Detection Across Industry
The MultiRAE Lite is a one to six gas monitor for personal protection and multi gas leak detection. It’s built for chemical plants, food and beverage, downstream oil and gas, pharmaceutical, telecommunications and wastewater treatment, as well as fire overhaul.
It can be configured to match the detection needs and compliance requirements of different industries and applications, without moving to a more complex instrument.

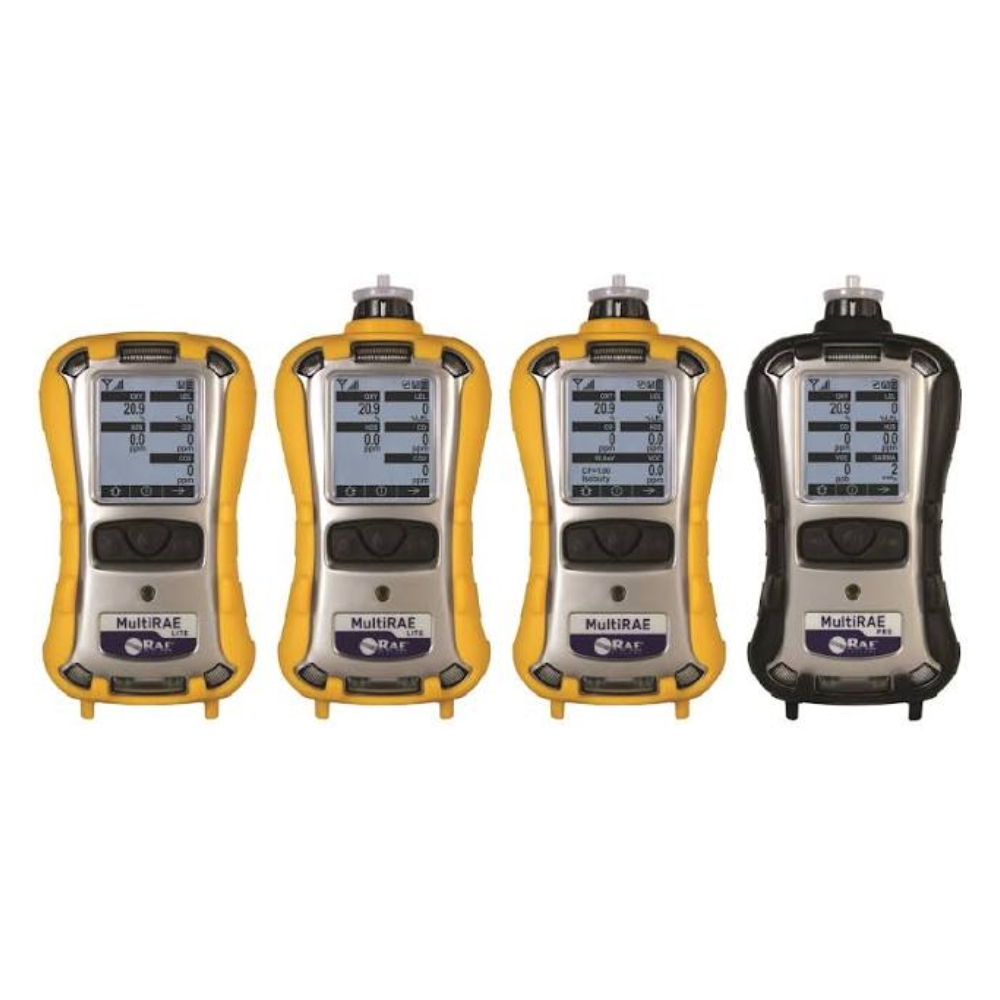

Pumped or Diffusion

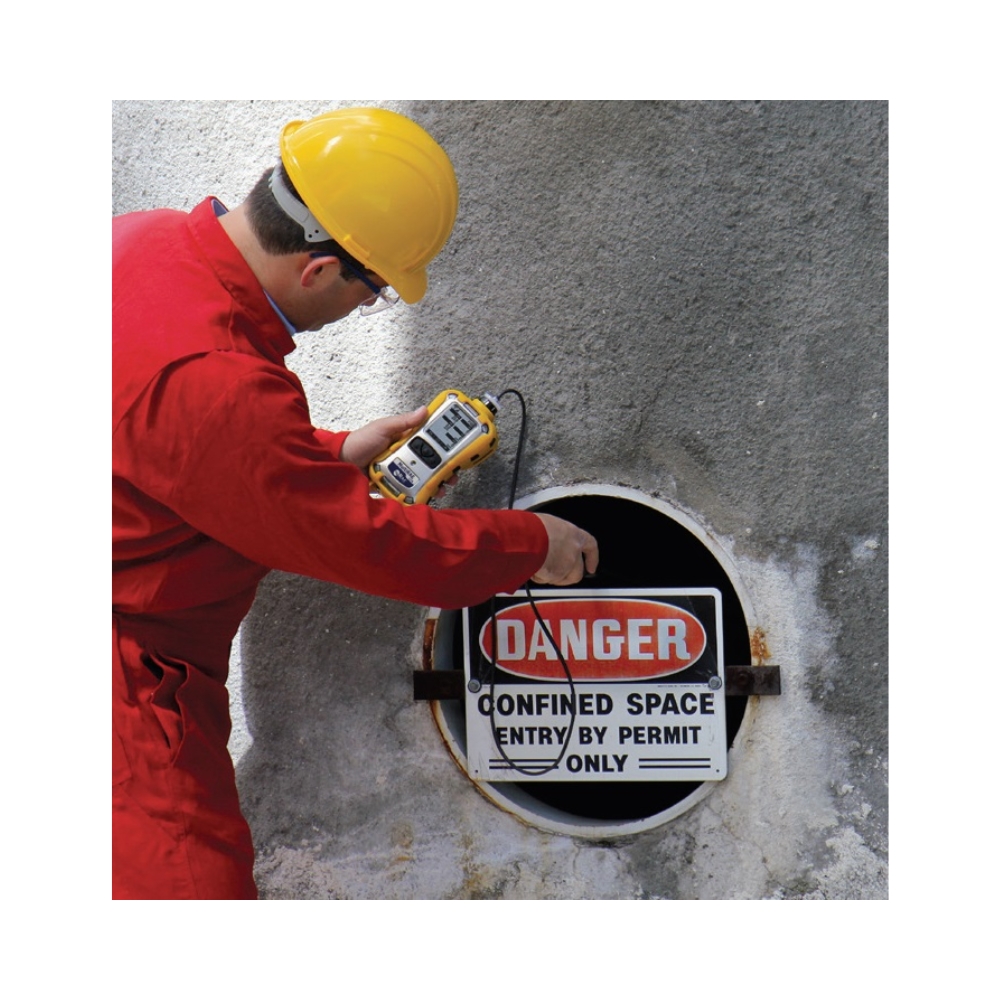

The MultiRAE Lite comes in two versions. The pumped version samples remotely from up to 30 metres, so a confined space can be tested before entry. It’s also the version to choose for PID, since the PID sensor needs a pumped configuration.
The diffusion version is lighter, at 760 g, and runs for longer between charges, making it the better choice for all day personal monitoring.
Over 25 Sensor Options
Choose from over 25 intelligent, interchangeable sensors. They include a PID for VOCs, catalytic and NDIR sensors for combustibles, NDIR for CO2, and electrochemical sensors for toxic gases and oxygen. A two gas combination sensor allows a six gas configuration.
Intelligent sensors store their own calibration data, so they can be swapped in the field.
Wireless Visibility
With the optional built in wireless modem, the MultiRAE Lite sends live gas readings and alarm status to ProRAE Guardian or an EchoView Host. Commanders and safety officers see what’s happening from any location. Remote monitoring may need additional equipment or software licences.
Alarms come through five ways, including a 95 dB buzzer, vibration, flashing red LEDs and a remote wireless notification. The Man Down alarm triggers a pre alarm, then a real time wireless notification if it isn’t cancelled.
Easy Maintenance
The sensors, pump and plug and play battery are easy to replace. On the pumped version, the AutoRAE 2 handles fully automatic bump testing and calibration. Data download, setup and upgrades run through the desktop cradle, travel charger or AutoRAE 2.
The MultiRAE Lite logs data continuously, storing six months of readings for five sensors at one minute intervals.
Benefits
- Broadest sensor selection in its class: over 25 options for up to 6 gases simultaneously
- Pumped version for remote sampling, or a lighter diffusion version for all day personal monitoring
- Optional wireless connectivity for real-time readings and alarm status at a central command
- Man Down alarm provides automatic protection for lone workers
- IP65 pumped and IP67 diffusion ingress protection ratings
- Fully automatic bump testing and calibration with AutoRAE 2 (pumped version)
- 19 languages for international deployment
- CSA, ATEX, IECEx and ANZEx certified for hazardous locations
- Lighter and lower cost than the MultiRAE, for standard industrial protection
- Intelligent sensors store their own calibration data, so they can be swapped in the field
Dimensions
Pumped: 193 x 96.5 x 66 mm. Diffusion: 175 x 96.5 x 56 mm
Weight
Pumped: 880 g. Diffusion: 760 g
Battery
Rechargeable Li-ion: about 12 hours pumped, 18 hours diffusion. Extended Li-ion: about 18 hours pumped, 28 hours diffusion. Alkaline (4 x AA): about 6 hours pumped, 8 hours diffusion. Figures for non wireless monitors
Gases
Up to 6 simultaneously from over 25 interchangeable sensor options
Sampling
Built in pump (PGM-6208) or diffusion (PGM-6208D). Pumped version samples up to 30 m. PID sensor requires the pumped version
Display
Monochrome graphical LCD (128 x 160) with backlight and automatic screen flip
Keypad
3 operation and programming keys
Alarms
Audible 95 dB, vibration, flashing LEDs, on-screen indication, Man Down alarm
Datalogging
Continuous, 6 months for 5 sensors at 1 minute intervals. User configurable from 1 to 3,600 seconds
Wireless
Optional. ProRAE Guardian, EchoView Host, WiFi Access Point
Wireless range
200 m to EchoView Host or RAEMesh Reader. 100 m to RAELink3 modem or WiFi access point
Operating temperature
-20°C to 50°C
Humidity
0 to 95% RH non-condensing
IP rating
IP65 pumped. IP67 diffusion
Calibration
Automatic with AutoRAE 2 (pumped version only) or manual
Languages
19 languages
Certifications
CSA Class I, Division 1, Groups A, B, C and D, T4. ATEX II 1G Ex ia IIC T4 Ga and I M1 Ex ia I Ma. IECEx and ANZEx Ex ia IIC T4 Ga and Ex ia I Ma (Ex ia d IIC T4 Gb with IR sensor)
Warranty
2 years non-consumable components and catalytic LEL sensors. 3 years CO and H2S sensors. 4 years liquid O2 sensors. 1 year all other sensors and consumables
Ethylene Oxide (ETO)
C2H4O
Methyl Mercaptan (Methanethiol)
CH3SH
Methane
CH4
Chlorine
Cl2
Chlorine Dioxide
ClO2
Carbon Monoxide
CO
Carbon Dioxide
CO2
Hydrogen
H2
Hydrogen Sulphide
H2S
Formaldehyde (CH2O)
HCHO
Hydrogen Cyanide
HCN
Combustible Gas
LEL
Ammonia
NH3
Nitric Oxide
NO
Nitrogen Dioxide
NO2
Oxygen
O2
Phosphine
PH3
Sulphur Dioxide
SO2
Volatile Organic Compounds
VOC
- Aviation & Transportation
- Chemical Manufacturing
- Confined Space & Compliance
- Energy (Oil & Gas)
- Food & Beverage
- Landfill & Remediation
- Marine & Maritime
- Medical & Healthcare
- Mining & Minerals
- Power Generation & BESS
- Technology & Semiconductor
- Water & Wastewater

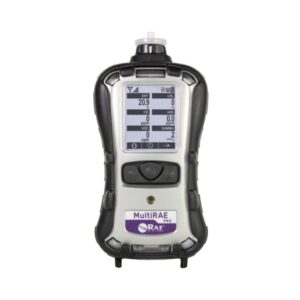

The MultiRAE Lite comes in pumped and diffusion versions, while the MultiRAE is pumped only. The MultiRAE has a higher range PID (0 to 5,000 ppm with 0.1 ppm resolution, compared with 0 to 1,000 ppm on the Lite) and larger on board gas libraries. Both share the same wireless platform, and both work with AutoRAE 2 (pumped Lite only).
No. Wireless is optional on both the pumped and diffusion versions. Both are also available without wireless, for sites that don't need remote monitoring.
Yes. The pumped version draws samples from up to 30 metres for remote atmosphere testing before confined space entry.
No. The PID sensor for VOCs needs the pumped version of the MultiRAE Lite. Some other sensors, such as hydrogen and extended range H2S, are only available on the diffusion version. Talk to our Technical Consultants about the right setup for your gases.
