EchoView Host
Wireless Gas Monitor Controller

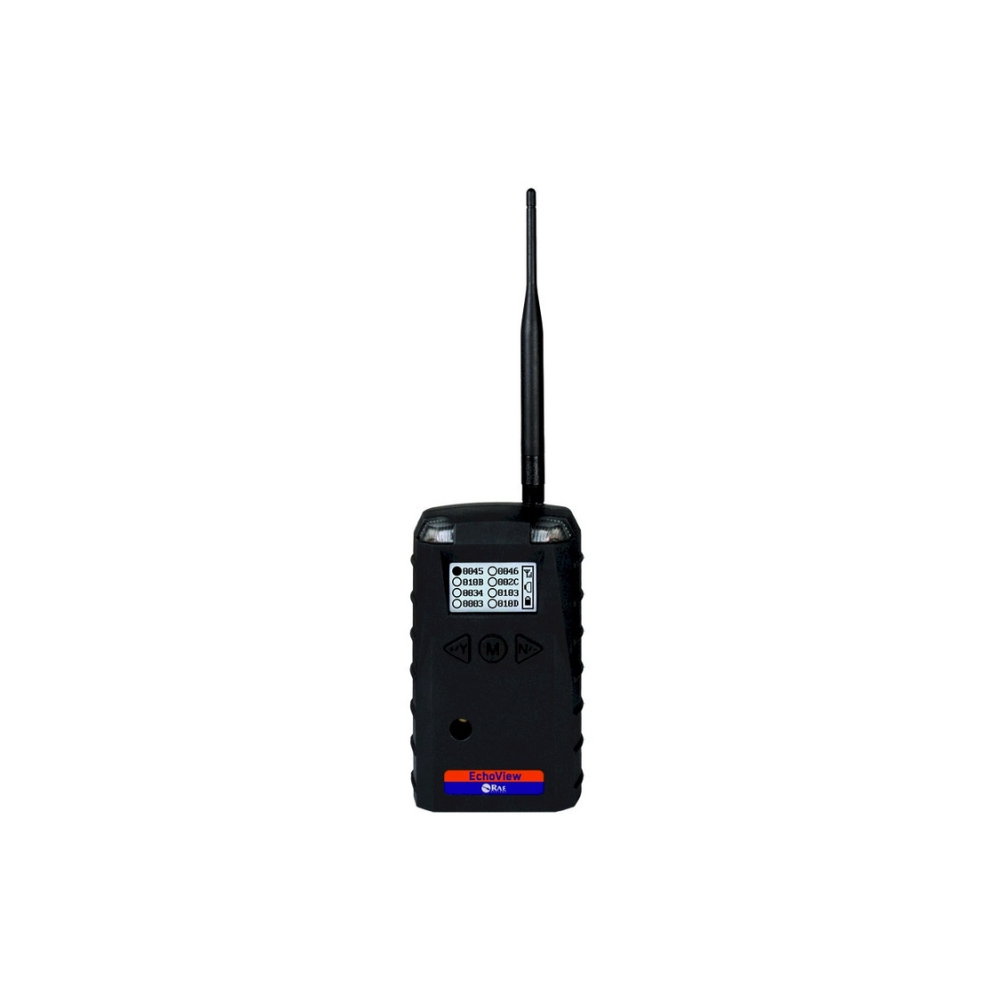

The EchoView Host by Honeywell is a rugged handheld mini controller at the centre of a closed loop wireless network for RAE Systems portable gas monitors. It receives live gas readings and alarm status from up to eight wireless monitors and shows their call names, readings and alarms on one screen, with no PC, server or fixed infrastructure. With range extendable to over 1 km using Mesh Routers, a 10 day battery, IP65 rating and intrinsic safety certification, it’s built for use in the field.
KEY BENEFITS
- Displays real-time gas readings and alarm status from up to 8 RAE Systems wireless monitors simultaneously on a single screen
- Direct range of up to 200 m, depending on the monitor, extendable to over 1 km with Mesh Routers
- 10-day continuous battery runtime on a single field-replaceable disposable lithium battery
- No PC, server or fixed wireless infrastructure required: fully self-contained closed-loop network
- Bright red high-visibility alarm LEDs and 90 dB audible alarm for immediate alert notification
+ more in the Description tab below
Closed Loop Wireless Monitoring Without the Infrastructure

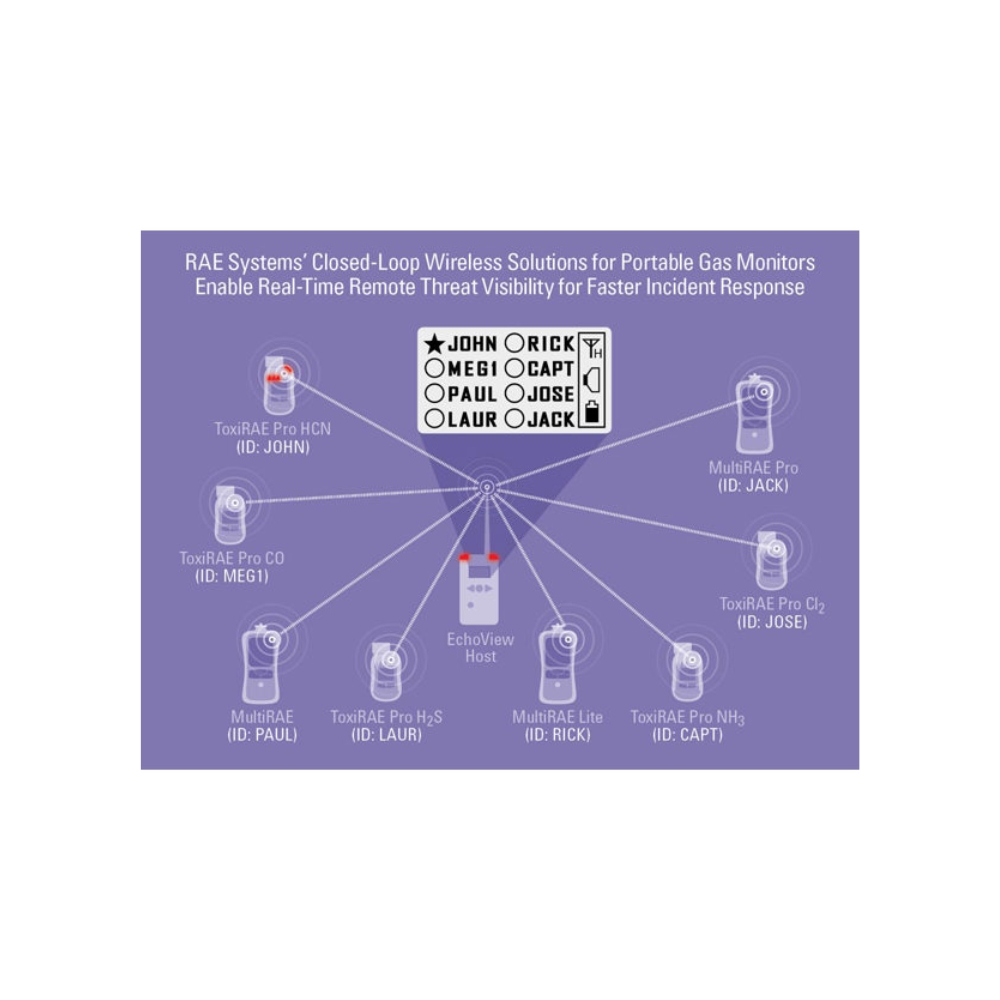

Many wireless gas monitoring systems need a server, a PC at a command centre or a fixed Wi-Fi network. The EchoView Host needs none of those. It’s a self contained, handheld controller that forms a closed loop network with up to eight RAE Systems wireless monitors and shows their call names, readings and alarm status on a backlit LCD.
That makes it well suited to emergency response, hazmat work, confined space programs and refinery turnarounds. It’s ideal where there’s no command centre, where the job is temporary, or where the safety officer needs to stay mobile. The whole monitoring setup is carried in one hand.
Real Time Visibility Into the Hot Zone
When workers with compatible RAE Systems wireless monitors enter a hazardous area, such as a wing tank, confined space or refinery vessel, the EchoView Host receives their readings and alarm status continuously.
If any monitor goes into alarm, the EchoView Host alarms straight away, with two super bright red LEDs and a 90 dB buzzer. The safety officer outside the hazard zone sees who is affected, which gas triggered the alarm and the current reading, without waiting for a radio call.
Extended Range With Mesh Routers
Direct range to compatible monitors is typically 100 to 200 m line of sight, depending on the monitor. The EchoView Host reaches a Mesh Router at up to 300 m, and Mesh Routers extend the network to over 1 km. That covers large plants, long vessels, pipelines and spread out outdoor sites.
10 Days of Field Runtime
The EchoView Host runs for 10 days, around the clock, on a field replaceable disposable lithium battery. It’s rated IP65 and certified intrinsically safe for Class I, Division 1, ATEX and IECEx hazardous areas, so it can be used on site, not just in safe areas.
Compatible Monitors
The EchoView Host works with wireless versions of the ToxiRAE Pro range, the MultiRAE family, and the MiniRAE 3000+, ppbRAE 3000+ and UltraRAE 3000+ PIDs. Talk to our Technical Consultants to confirm the right radio version for your monitors.
Benefits
- Displays real-time gas readings and alarm status from up to 8 RAE Systems wireless monitors simultaneously on a single screen
- Direct range of up to 200 m, depending on the monitor, extendable to over 1 km with Mesh Routers
- 10-day continuous battery runtime on a single field-replaceable disposable lithium battery
- No PC, server or fixed wireless infrastructure required: fully self-contained closed-loop network
- Bright red high-visibility alarm LEDs and 90 dB audible alarm for immediate alert notification
- IP65 rated for dust and water ingress protection
- ATEX, IECEx and US Class I Division 1 certified for use in classified hazardous environments
- Works with ToxiRAE Pro, MultiRAE, MultiRAE Lite, MultiRAE Pro, MiniRAE 3000+, ppbRAE 3000+ and UltraRAE 3000+ wireless models
- Three operation and programming keys for straightforward field navigation
- 1-year warranty
Size
26.5 x 9.5 x 5.5 cm
Weight
600 g
Display
Backlit LCD showing call names, readings and alarm status for up to 8 monitors
Keypad
3 operation and programming keys
Monitors supported
Up to 8 simultaneous RAE Systems wireless monitors
Wireless network
RAE Systems Dedicated Wireless Network (closed-loop)
Wireless frequency
ISM licence free bands. Available in 2.4 GHz, 900 MHz and 868 MHz versions
Wireless range
Typically 100 to 200 m line of sight to compatible monitors, depending on the monitor. 300 m to a Mesh Router. Extendable to over 1 km with Mesh Routers
Compatible monitors
ToxiRAE Pro (toxic and O2), ToxiRAE Pro LEL, ToxiRAE Pro PID, MultiRAE, MultiRAE Lite (pumped and diffusion), MultiRAE Pro, MiniRAE 3000+, ppbRAE 3000+, UltraRAE 3000+ (wireless models)
Alarms
90 dB audible at 30 cm, 2 super-bright red LEDs
Battery
Disposable lithium, field replaceable
Battery runtime
10 days, 24/7
Operating temperature
-20°C to 50°C
Humidity
10 to 90% RH non-condensing
IP rating
IP65
Certifications
US and Canada: Class I, Division 1, Groups ABCD T4. ATEX IM1/II 1G Ex ia I/IIC T4. IECEx Ex ia I/IIC T4. RF: FCC Part 15, CE
Warranty
1 year
- Aviation & Transportation
- Chemical Manufacturing
- Confined Space & Compliance
- Energy (Oil & Gas)
- Landfill & Remediation
- Marine & Maritime
- Mining & Minerals
- Power Generation & BESS
- Technology & Semiconductor
- Water & Wastewater
The EchoView Host is a handheld mini-controller that forms the centre of a closed-loop wireless network for RAE Systems portable gas monitors. It receives real-time gas readings and alarm status from up to 8 compatible wireless monitors simultaneously and displays them on a single screen, without requiring a PC, server or fixed wireless infrastructure.
The EchoView Host works with wireless models of the ToxiRAE Pro, ToxiRAE Pro LEL and ToxiRAE Pro PID, the MultiRAE, MultiRAE Lite and MultiRAE Pro, and the MiniRAE 3000+, ppbRAE 3000+ and UltraRAE 3000+. The monitors and host must use the same radio version.
Direct range to compatible monitors is typically 100 to 200 m line of sight, depending on the monitor. Mesh Routers extend the range to over 1 km, for large facilities, long vessels or spread out sites.
Yes. The EchoView Host carries ATEX, IECEx and US Class I, Division 1 intrinsic safety certifications, making it suitable for deployment in classified hazardous environments.
The EchoView Host operates for 10 days continuously on a single field-replaceable disposable lithium battery.
No. The EchoView Host is a fully self-contained closed-loop wireless controller. No PC, server or fixed wireless infrastructure is required.
