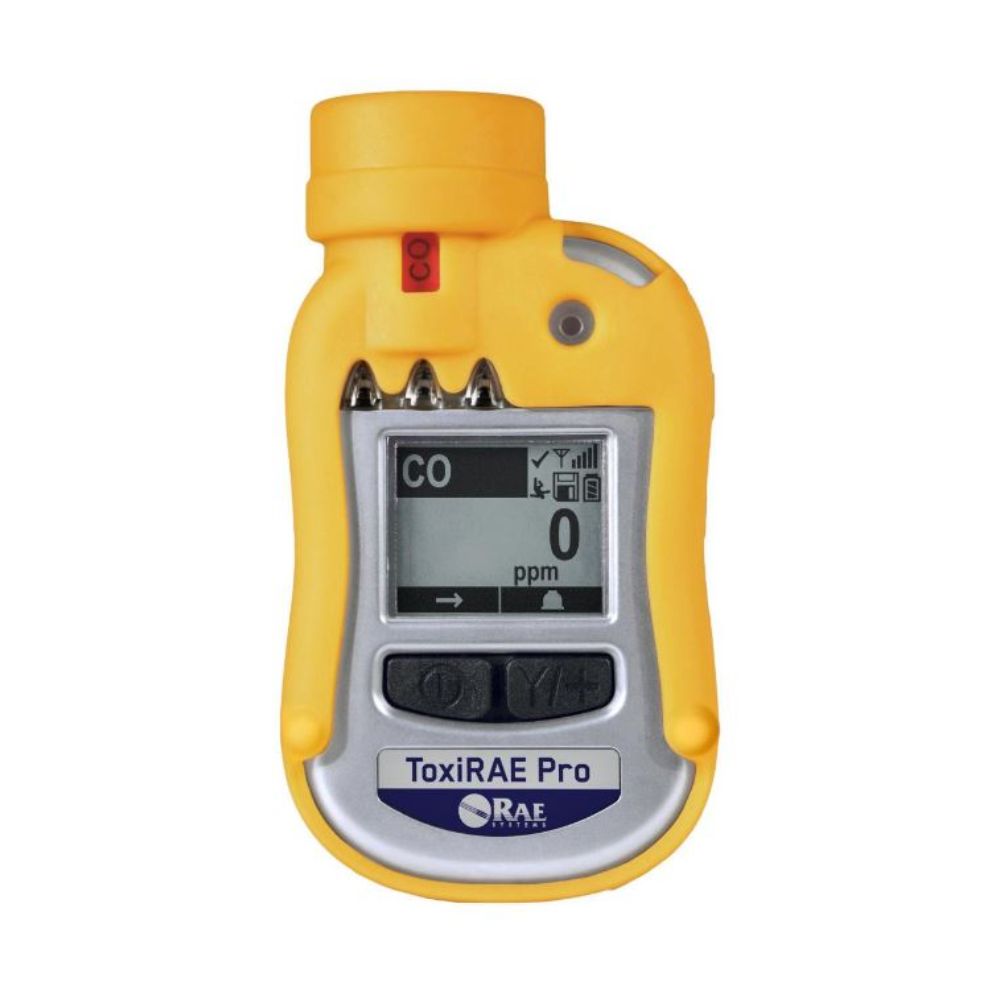

ToxiRAE Pro
Combustible Gas Monitor
The ToxiRAE Pro can detect a broad range of gases, from carbon monoxide, hydrogen sulfide, and oxygen to ammonia, chlorine, and formaldehyde. The ToxiRAE Pro provides safety professionals wireless remote access to real-time instrument readings and alarm status for better visibility and faster incident response. With over 20 interchangeable electrochemical sensors available, it gives safety teams the flexibility to monitor for the right gas in the right environment without carrying multiple instruments.
KEY BENEFITS
- Wireless access to real-time instrument readings and alarm status from any location
- Unmistakable five-way local and remote wireless notification of alarm conditions
- Intelligent sensors store calibration data, so they can be swapped in the field
- Most electrochemical sensors are shared with MultiRAE family instruments
- Largest display in its class
+ more in the Description tab below
Wireless. Personal. Proven
The ToxiRAE Pro can detect a broad range of gases, from carbon monoxide, hydrogen sulfide, and oxygen to ammonia, chlorine, and formaldehyde. The ToxiRAE Pro provides safety professionals wireless remote access to real-time instrument readings and alarm status for better visibility and faster incident response. The ToxiRAE Pro’s intelligent interchangeable sensors store calibration data, which allows users to monitor for one gas one day and another gas the next, simply by swapping sensors as required. With over 20 interchangeable electrochemical sensors available, most of which are shared with the MultiRAE family of instruments, the ToxiRAE Pro gives safety teams genuine flexibility without the cost of carrying multiple dedicated instruments.
Built for Real-Time Visibility
The ToxiRAE Pro offers datalogging capability and is equipped with a Man Down alarm and policy enforcement to ensure greater safety, while making sure compliance-related procedures such as periodic testing and calibration are performed. Wireless connectivity gives safety managers anytime, anywhere access to real-time instrument readings and alarm status through ProRAE Guardian software or the EchoView Portable Controller, enabling faster incident response when it matters most.
Easy to Maintain, Built to Last
Compact, reliable and easy to use, the ToxiRAE Pro doesn’t get in the way of workers doing their job. It is rugged, water, dust and shock resistant, and compatible with the AutoRAE 2 system for fully automatic bump testing and calibration. The instrument’s largest in class display and intuitive two-button operation keep it simple to use in the field, while replaceable sensors, filters and battery keep ongoing maintenance straightforward.
Versatile Across Industries
Used across agriculture, chemical manufacturing, fire service and HazMat response, food and beverage, oil and gas, pharmaceutical, pulp and paper, steel manufacturing and wastewater industries, the ToxiRAE Pro is one of the most widely deployed personal single gas monitors in demanding industrial environments worldwide.
Benefits
- Wireless access to real-time instrument readings and alarm status from any location
- Unmistakable five-way local and remote wireless notification of alarm conditions
- Intelligent sensors store calibration data, so they can be swapped in the field
- Most electrochemical sensors are shared with MultiRAE family instruments
- Largest display in its class
- Continuous datalogging
- Easy to use
- Reliable, rugged, and intrinsically safe
- Compatible with AutoRAE 2 bump test and calibration station
- Multi-unit charger available for up to five monitors
Size
118 x 60 x 30 mm
Weight
220 g
Sensor
Over 20 intelligent interchangeable field-replaceable electrochemical sensors
Display
Graphical LCD with white LED backlighting, activated on alarm or button press
Display readout
Real-time gas concentration in ppm or mg/m3, battery status, datalogging on/off, wireless on/off and reception quality, STEL, TWA and peak values
Keypad
2 buttons for operation and programming
Sampling
Diffusion
Calibration
Automatic with AutoRAE 2 Test and Calibration System, or manual
Alarm modes
Wireless remote alarm notification, audible (95 dB at 30 cm), vibration, visible alarm (flashing bright red LEDs), on-screen alarm indication, Man Down alarm with pre-alarm and real-time remote notification
Datalogging
Continuous, 3-month capacity at 1-minute intervals, user-configurable from 1 to 3,600 seconds
Communication and data download
PC via charging and communication cradle, AutoRAE 2 system, optional built-in RF modem for wireless transmission
Wireless network
ProRAE Guardian Real-Time Wireless Safety System or Closed-Loop Network with EchoView Host
Wireless range
ToxiRAE Pro to Mesh Router, EchoView Host or Mesh Reader approx. 660 ft (200 m). ToxiRAE Pro to RAELink3 Mesh or RAELink3 Z1 Mesh modems approx. 330 ft (100 m)
Operating temperature
-20°C to 55°C
Humidity
0 to 95% RH, non-condensing
Dust and water resistance
IP65, validated by an independent test laboratory
Hazardous location approvals
CSA Class I, Division 1, Groups A, B, C and D, T-code T4, Class I, Zone 0 A/Exia IIC T4. ATEX II 1G, Ex ia IIC Ga T4. IECEx Ex ia IIC Ga T4. China Ex Ex ia IIC T4
EMC/RFI
EMC Directive 2004/108/EC
Wireless approvals
FCC Part 15, CE R&TTE, others
Warranty
3 years on H2S and CO sensors. 2 years on O2 sensor. 2 years on non-consumable components. 1 year on all other sensors, battery and other consumable parts
Ethylene Oxide (ETO)
C2H4O
Methanethiol
CH3-SH
Chlorine
Cl2
Chlorine Dioxide
ClO2
Carbon Monoxide
CO
Hydrogen
H2
Hydrogen Sulphide
H2S
Hydrogen Chloride
HCl
Hydrogen Cyanide
HCN
Hydrogen Fluoride
HF
Ammonia
NH3
Nitric Oxide
NO
Nitrogen Dioxide
NO2
Oxygen
O2
Phosphine
PH3
Sulphur Dioxide
SO2
- Aviation & Transportation
- Carpark & HVAC
- Chemical Manufacturing
- Confined Space & Compliance
- Energy (Oil & Gas)
- Food & Beverage
- Landfill & Remediation
- Marine & Maritime
- Medical & Healthcare
- Mining & Minerals
- Power Generation & BESS
- Technology & Semiconductor
- Water & Wastewater
Yes. The ToxiRAE Pro uses intelligent interchangeable electrochemical sensors that store their own calibration data. This allows you to swap sensors in the field and monitor for a different gas without recalibrating from scratch.
Yes. Most of the electrochemical sensors used in the ToxiRAE Pro are shared with the MultiRAE family of instruments, simplifying fleet management and reducing the number of spare sensors you need to stock.
Yes. The ToxiRAE Pro holds CSA, ATEX, IECEx and China Ex hazardous location approvals, making it suitable for use in classified hazardous environments.
The Man Down alarm detects if the instrument has been stationary or in an unusual position for a set period, triggering a pre-alarm followed by a real-time remote wireless notification if not cancelled, alerting others to a potential worker emergency.
Calibration can be performed automatically using the AutoRAE 2 Test and Calibration System or manually using the supplied calibration adapters.
The ToxiRAE Pro uses a rechargeable Li-ion battery. Operating time varies depending on sensor type and wireless usage, contact Gastech for specific runtime figures for your configuration.
