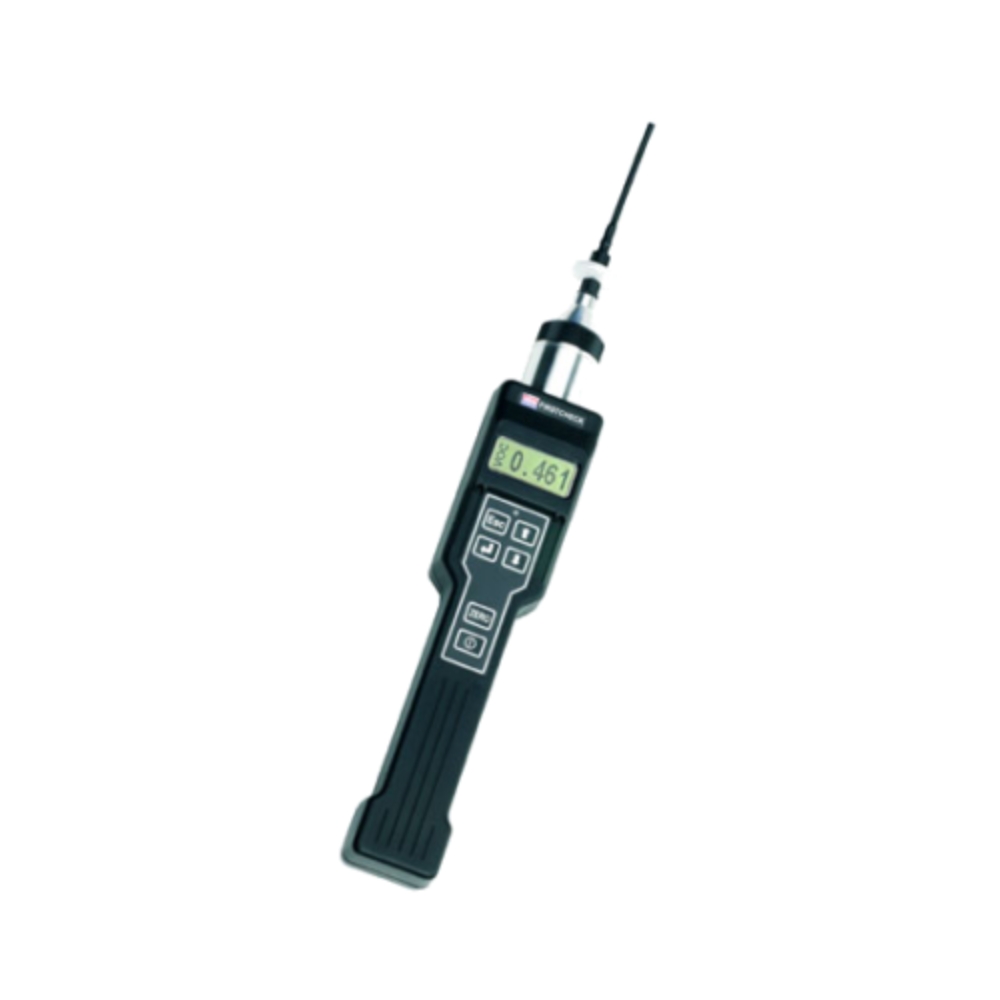

FirstCheck+
Multi Gas PID Detector
i
This product has been discontinued and is no longer available. In many cases we can still service and calibrate it. Talk to our team about spares or alternatives.
FirstCheck+ is an upgradeable multi-gas PID that combines VOC detection with oxygen, carbon monoxide, hydrogen sulphide and explosive gas sensors. Its patented Fence Electrode Technology delivers humidity and contamination resistance for reliable field readings.
KEY BENEFITS
- Combines VOC and toxic gas detection in one instrument
- Patented Fence Electrode Technology resists humidity and contamination
- Detects VOCs from 1 ppb to 10,000 ppm
- Intrinsically safe for use in flammable areas
- Health and Safety mode for STEL and TWA
+ more in the Description tab below
The First Upgradeable Multi-Gas PID for VOC and Toxic Gas Detection
FirstCheck+ is the first PID multi-gas instrument to combine volatile organic compound (VOC) detection with traditional multi-gas sensors for oxygen, hydrogen sulphide, carbon monoxide and explosive gases. Its unique patented Fence Electrode Technology uses a three-electrode format for proven resistance to humidity and contamination.
An inert flow path routes the sample through the PID first, then the multi-gas module, before exiting via the pump, giving a true response from all sensors without losses from absorption or delayed response. No software damping, filtering or auto-zeroing is used, so what the sensor sees is what the user sees.
Available in upgradeable versions from the low-cost 1000Ex through to the flagship 5000Ex, FirstCheck+ suits first response, confined space entry, HazMat, industrial, leak detection and fugitive emissions work.
Benefits
- Combines VOC and toxic gas detection in one instrument
- Patented Fence Electrode Technology resists humidity and contamination
- Detects VOCs from 1 ppb to 10,000 ppm
- Intrinsically safe for use in flammable areas
- Health and Safety mode for STEL and TWA
- Rapid response and recovery for fast detection
- Large numerical back-lit display for easy viewing
- Continuous data logging of all five sensors
- Data download to PC via IRDA link and Ion PC software
- Upgradeable throughout the FirstCheck+ range
Intrinsically Safe Approvals
II 2 G Baseefa 03ATEX0742, EEx ia II T4 (-20 to 60C), IECEx BAS 04.0033
Accuracy
+/- 5% displayed reading at calibration point
Linearity
+/- 5%
Data Logging
All 5 sensors every second with date/time stamp, 8 Mb expandable memory
Calibration
Via calibration kit accessory
Operation
Dry Cell: Alkaline 4 x AA - 11 hours
Alarm
Flashing LED and 90 dBA (10cm) sounder, user set and TWA & STEL, 450+ gases
Flow Rate
220 ml/min with flow fail alarm
Temperature
Operating -20 to 60C; Humidity 0-99% RH non condensing
Dimensions
Instrument without probe 340 x 60 x 49 mm
Weight
Instrument 0.615 kg; Packed 3.045 kg
PID Lamp
10.6 eV Krypton PID lamp supplied as standard
VOC Range
0.1 to 4000 ppm (1000/2000), 0.1 to 10,000 ppm (3000/5000)
Oxygen Range
0 to 28%
It detects VOCs via its PID sensor plus oxygen (0-28%), carbon monoxide (1-1000 ppm), hydrogen sulphide (0.1-100 ppm) and explosive gases (0-100% LEL).
The FirstCheck+ 5000 can accurately detect VOCs from 1 ppb up to 10,000 ppm, enabling detection of gases toxic at very low ppb levels.
Yes, it carries II 2 G Baseefa 03ATEX0742, EEx ia II T4 and IECEx BAS 04.0033 approvals for use in flammable areas.
The instrument runs for approximately 11 hours on 4 x AA alkaline dry cells.
Yes, FirstCheck+ is available in upgradeable versions from the 1000Ex through to the advanced 5000Ex with extended detection range and features.
