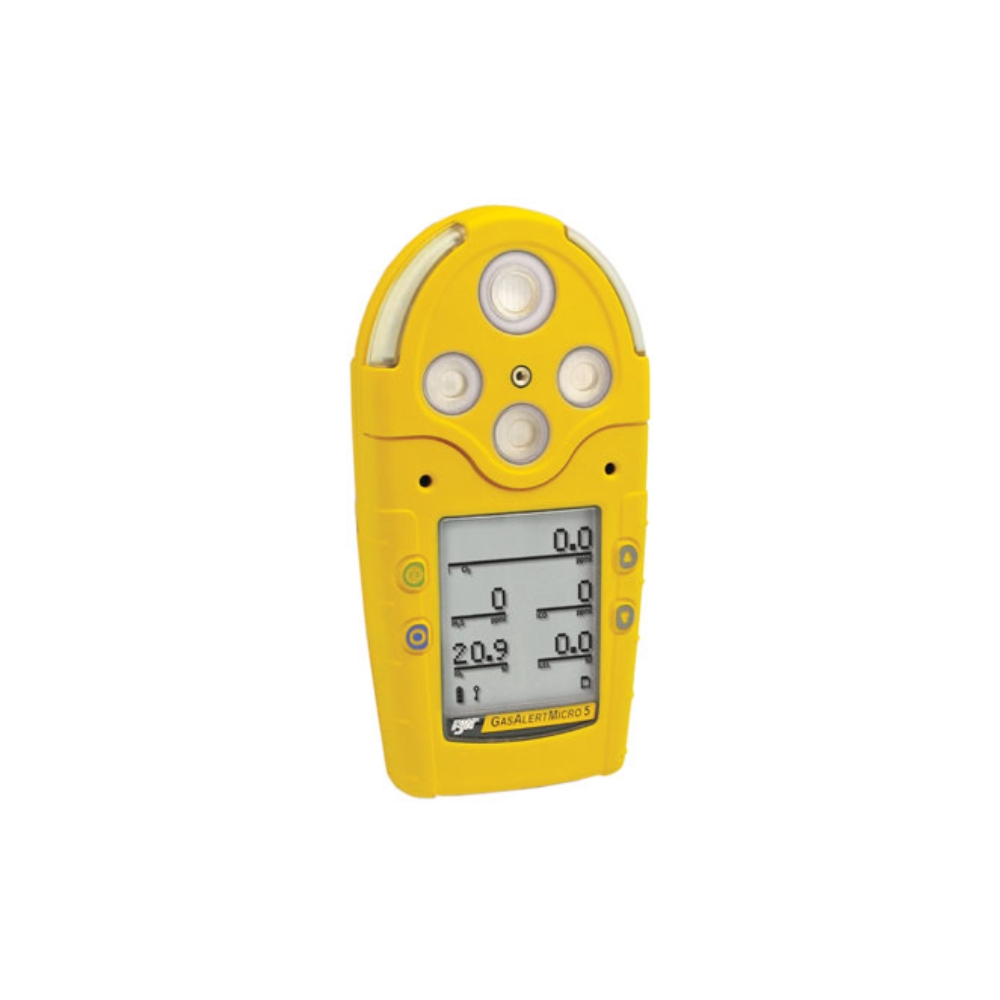

GasAlertMicro 5 Series
Multi Gas Detector
i
This product has been discontinued and is no longer available. In many cases we can still service and calibrate it. Talk to our team about spares or alternatives.
A portable multi-gas detector that simultaneously monitors and displays up to five atmospheric hazards. Available as a standard toxic gas model or an IR model for CO2 detection, with extensive user-settable field options.
KEY BENEFITS
- Measure up to five atmospheric hazards concurrently
- Fully customisable to suit any application
- Rapid switch from diffusion to optional integrated pump
- Continuous LCD shows real-time gas concentrations
- Bright wide-angled visual alarm bars
+ more in the Description tab below
Monitor Up to Five Atmospheric Hazards at Once
The BW GasAlertMicro 5 simultaneously monitors and displays up to five atmospheric hazards. Adaptable to a wide variety of applications, it offers an extensive selection of user-settable field options and is available as either a standard toxic gas model or an IR model for CO2 detection.
A continuous LCD shows real-time gas concentrations, backed by bright wide-angled visual alarm bars, an internal vibrating alarm for high-noise areas and a 95 dB audible alarm. The passcode function prevents unauthorised changes to the instrument’s settings, while a built-in concussion-proof boot adds durability.
Users can rapidly switch from diffusion mode to an optional integrated motorised pump for remote sampling up to 20 m. Compatible with BW’s MicroDock II automatic test and calibration system, the GasAlertMicro 5 offers two power options and multi-language support, making it unparalleled in versatility, performance and value.
Benefits
- Measure up to five atmospheric hazards concurrently
- Fully customisable to suit any application
- Rapid switch from diffusion to optional integrated pump
- Continuous LCD shows real-time gas concentrations
- Bright wide-angled visual alarm bars
- Internal vibrating alarm for high noise areas
- Compatible with BW MicroDock II test and calibration
- Two power options: AA alkaline or rechargeable packs
- Passcode protection against unauthorised changes
- Built-in concussion-proof boot
Size
14.5 x 7.4 x 3.8 cm
Weight
370 g
Temperature
-20 to +50°C (-10 to +40°C PID)
Humidity
0% - 95% RH non-condensing
Alarms
Visual, vibrating, audible (95 dB); Low, High, STEL, TWA, OL
Tests
Sensor integrity, circuitry, battery, audible/visual alarms
Pump
Optional; sample from up to 20 m
Certifications
CSA Class I Div. 1 Gr. A,B,C,D; IECEx Ga Ex ia IIC T4; ATEX
Warranty
2 year including sensors (1 year NH3, Cl2, O3, ClO2, PID Lamp)
It simultaneously monitors and displays up to five atmospheric hazards.
Yes, it is available as a standard toxic gas model or an IR model for CO2 detection.
An optional integrated motorised pump allows remote sampling from up to 20 m, and users can switch from diffusion mode to pump mode in the field.
Yes, it is compatible with BW's MicroDock II automatic test and calibration system.
It provides bright visual alarm bars, an internal vibrating alarm and a 95 dB audible alarm, with Low, High, STEL, TWA and over-limit settings.
