GX-2009
Compact Four Gas Monitor
i
This product has been discontinued and is no longer available. In many cases we can still service and calibrate it. Talk to our team about spares or alternatives.

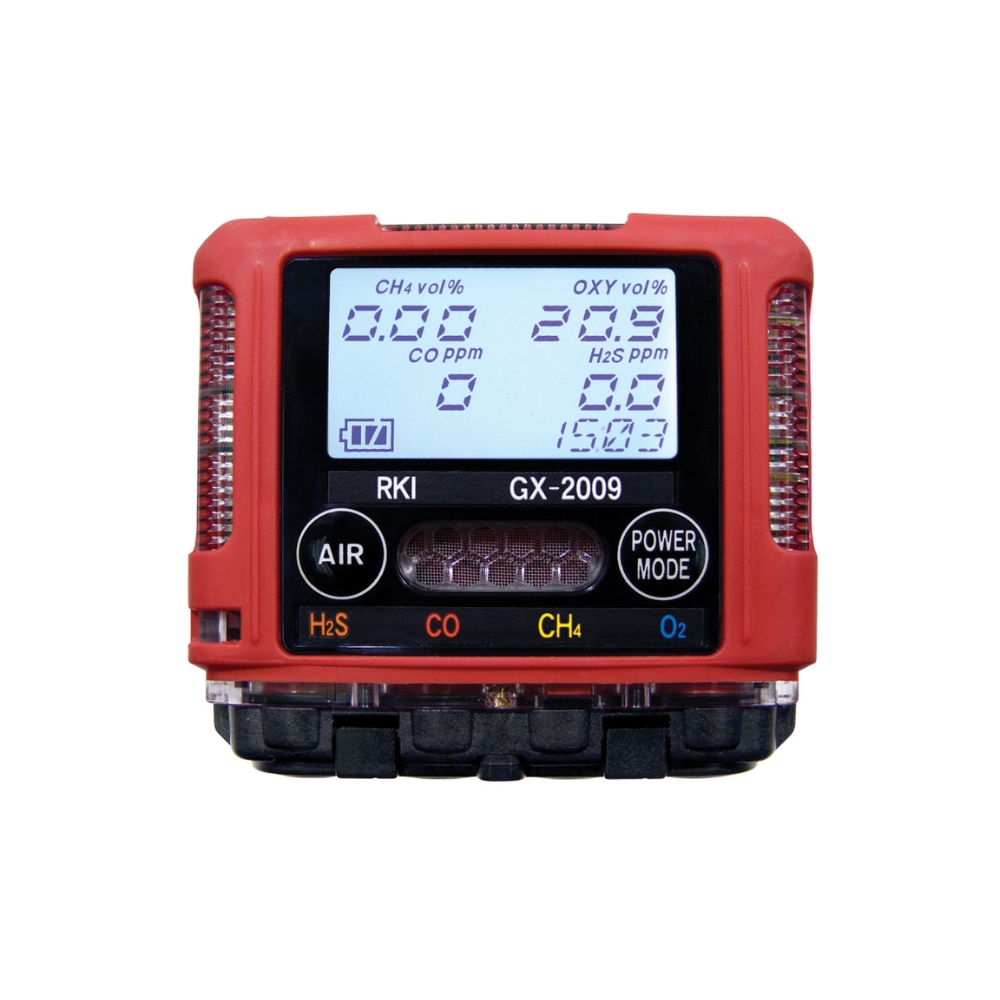

The GX-2009 is one of the smallest and lightest four-gas monitors available, weighing only 130 g so it fits in the palm of your hand. It simultaneously monitors and displays combustibles, oxygen, carbon monoxide and hydrogen sulfide.
KEY BENEFITS
- Simultaneous detection of 4 gases
- One of the smallest and lightest 4 gas monitors on the market
- Dual audible alarm ports
- 3 visual alarm LEDs
- Vibration alarm
+ more in the Description tab below
The smallest, lightest four-gas monitor that fits in your palm
RKI is proud to offer one of the smallest and lightest four-gas monitors in the world, the GX-2009. Weighing only 130 g it fits in the palm of your hand while simultaneously monitoring and displaying combustibles, oxygen, carbon monoxide and hydrogen sulfide.
Advancements include dual audible alarm ports and alarm LEDs on three sides of the instrument so alarm conditions are obvious from multiple perspectives, especially in high noise environments. A water resistant and dustproof IP-67 design, impact resistant rubber over-mold body and large capacity datalogging come as standard, along with vibration alarm, auto-calibration, bump test lock out and STEL/TWA readings.
All controls are operated through two glove-friendly buttons, and the NiMH battery set delivers 20 hours of operation with a three hour full charge. Built around compact, proven catalytic combustion, electrochemical and galvanic sensors, the GX-2009 works with the SDM-2009 calibration station and the Data Cal 2000 maintenance system. Although this product is no longer available for sale, it remains supported by Gastech Technical Services and Support.
Benefits
- Simultaneous detection of 4 gases
- One of the smallest and lightest 4 gas monitors on the market
- Dual audible alarm ports
- 3 visual alarm LEDs
- Vibration alarm
- IP-67 water resistant and dustproof
- Calibration and bump test lock out or reminder controls
- Large capacity data logging standard
- 20 hours of operation on NiMH batteries
- Intrinsically safe with IECEx / ATEX approval (optional MSHA version)
Combustible range
CH4 as standard, catalytic combustion, 0-100% LEL
O2 range
Galvanic cell, 0-40.0% Vol
H2S range
Electrochemical cell, 0-100.0 ppm
CO range
Electrochemical cell, 0-500 ppm
Sampling method
Diffusion standard; hand aspirator or motorized pump optional
Display
Digital LCD showing all four gases simultaneously with auto backlight
Operating Temp
-20 to +50 C
Humidity
0 to 95% RH, non-condensing
Response Time
Within 30 seconds (T90)
Run Time
20 hours after a 3 hour full charge
Power Source
Direct charging NiMH batteries, set of 2
Approvals
IECEx zone 0 Ex ia IIC T4; ATEX II 1G Ex ia IIC T4; CSA
Dimensions
70 x 75 x 25 mm
Weight
130 g
It simultaneously monitors combustible gases (LEL), oxygen (O2), carbon monoxide (CO) and hydrogen sulfide (H2S).
It measures 70 x 75 x 25 mm and weighs only 130 g, making it one of the smallest and lightest four-gas monitors available.
The NiMH battery set provides 20 hours of operation after a three hour full charge, or 14 hours after a 90 minute charge.
Yes, it has an IP-67 water resistant and dustproof rating with an impact resistant rubber over-mold body.
Yes, it is intrinsically safe with IECEx Zone 0 Ex ia IIC T4 and ATEX II 1G approvals, CSA classification, and an optional MSHA version.
