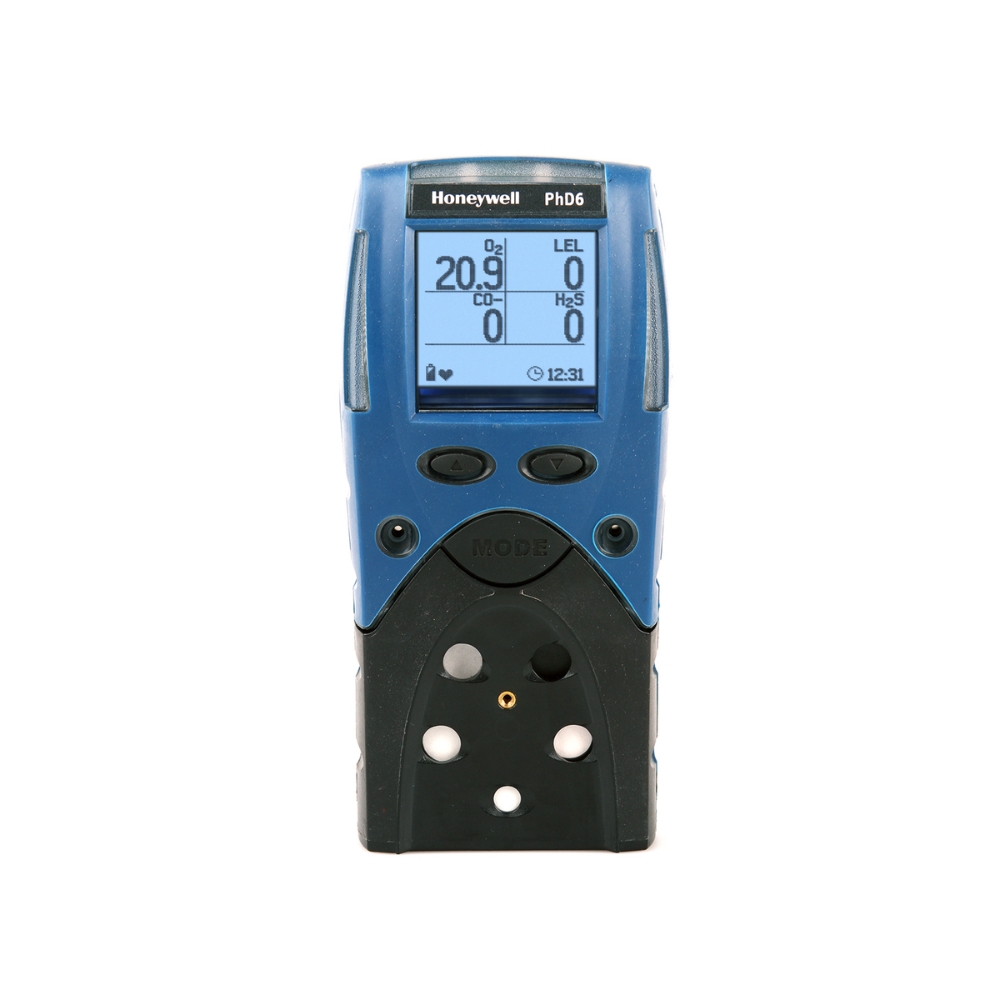

PHD6
Multi Gas Detector
i
This product has been discontinued and is no longer available. In many cases we can still service and calibrate it. Talk to our team about spares or alternatives.
The PHD6 is a highly configurable multi-gas detector with five sensor ports, up to six channels of detection and 18 sensor options including electrochemical, LEL, PID and infra-red. It is rugged, reliable and simple to operate through a multi-button interface.
KEY BENEFITS
- Five sensor ports and 16 sensor choices
- Up to six channels of detection
- PID sensor option monitors hundreds of known VOCs
- Infra-red CO2 or Methane sensor options
- Durable polycarbonate case with rubber overmould
+ more in the Description tab below
The Most Configurable Confined Space Multi-Gas Detector of Its Time
The PHD6 is a state-of-the-art multi-gas detector, offering five sensor ports, up to six channels of detection and 18 sensor options including electrochemical, LEL, PID and infra-red. It combines reliability and sophistication with the ease of use expected from a leading detector.
Day-to-day operations are controlled entirely through a simple multi-button interface, while a status bar with easy-to-recognise icons gives immediate access to everything from time to calibration status. Built-in menus let advanced users configure the detector in the field.
Constructed from an engineered polycarbonate frame with rubber overmould, the PHD6 is both tough and easy to handle. Interchangeable alkaline or Li-Ion battery packs deliver run times as long as 22 hours, and a built-in IrDA port allows PC configuration and field data download. Although no longer available for sale, the PHD6 is still supported by Technical Services and Support.
Benefits
- Five sensor ports and 16 sensor choices
- Up to six channels of detection
- PID sensor option monitors hundreds of known VOCs
- Infra-red CO2 or Methane sensor options
- Durable polycarbonate case with rubber overmould
- Interchangeable alkaline and Li-Ion battery packs
- Audible alarms rated at 92 dB
- Front and side mounted LED visible alarms
- IQ6 Dock compatibility for automated calibration
- Built-in IrDA port for PC configuration and data download
Sensor Ports
5 sensor ports, up to 6 channels of detection
Sensor Choices
16 sensor choices including PID, IR-CO2, IR-CH4, LEL, oxygen and 12 toxic gas sensors including Duo-Tox
PID Sensor
Monitors hundreds of known VOCs
Infra-Red Sensors
CO2 or Methane options
Housing
Solid polycarbonate case with TPE rubber overmould
Battery
Li-Ion up to 22 hrs; Alkaline packs also available
Audible Alarm
Rated at 92 dB
Visible Alarm
Front and side mounted LED alarms
Communication
Built-in IrDA port for PC configuration and data download
Sampling
Manual sample draw kit included; optional motorized pump
Certifications
SGS USTC Class I Div 1 Groups A,B,C,D T3C (UL-913); ATEX (DEMKO) Ex d ia IIC 150C (T3); IECEx Ex d ia IIC 150C (T3); CSA Class I Div 1; NEPSI Ex d ia IIC 150C
The PHD6 offers up to six channels of detection across five sensor ports, with 16 sensor choices including PID, IR-CO2, IR-CH4, LEL, oxygen and 12 toxic gas sensors.
Yes, the optional PID sensor monitors hundreds of known volatile organic compounds (VOCs).
Interchangeable Li-Ion and Alkaline battery packs offer run times as long as 22 hours.
Yes, it is compatible with the IQ6 Dock, which reduces labour costs, automates record keeping and saves calibration gas.
Although no longer available for sale, the PHD6 is still supported by Technical Services and Support.
