Testo 330 LL
Flue Gas Analyser
i
This product has been discontinued and is no longer available. In many cases we can still service and calibrate it. Talk to our team about spares or alternatives.

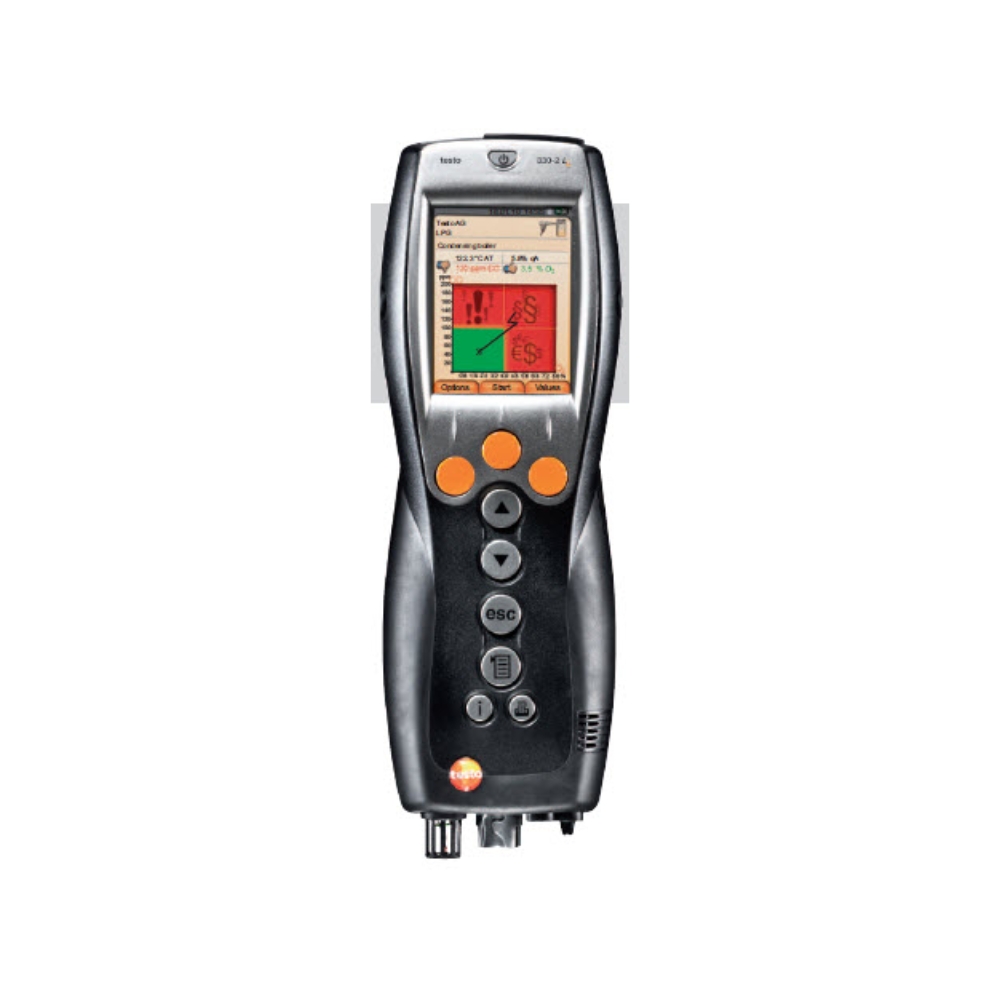

The Testo 330 LL flue gas analyser visualises measurement data graphically on a high-resolution colour display. Its long-life sensors carry a 4-year guarantee and support comprehensive combustion analysis and long-term logging.
KEY BENEFITS
- High-resolution colour display for graphic data representation
- Flue gas matrix with intuitive thumb and traffic-light symbols
- Extended menus including solid fuel measurement and tightness testing
- Logger function for long-term measurement recording
- LL sensors with 4 years' guarantee
+ more in the Description tab below
Flue Gas Analysis Visualised Graphically at a Glance
The Testo 330 LL flue gas analyser visualises measurement data graphically. Self-explanatory graphic curves, easy symbols and a clear colour design ease the analysis of measurement data considerably, helping technicians exploit every optimisation opportunity in a combustion system.
The central element is the flue gas matrix, which shows whether CO and O2 values are in the green, permitted range and the heating system is optimally adjusted. Thumb symbols instantly show system status, and if values are outside the optimum range the matrix provides the information needed for adjustment.
Extended measurement menus such as solid fuel measurement and tightness testing enable comprehensive analysis, while a logger function supports easy long-term recording. Long-life LL sensors carry a 4-year guarantee with a life expectancy of up to 6 years, reducing follow-on costs.
Benefits
- High-resolution colour display for graphic data representation
- Flue gas matrix with intuitive thumb and traffic-light symbols
- Extended menus including solid fuel measurement and tightness testing
- Logger function for long-term measurement recording
- LL sensors with 4 years' guarantee
- Sensor life expectancy up to 6 years (O2 / CO)
- Powerful Li-ion battery with over 10 hours pump-running life
- Pressure measurement up to 300 mbar
- Instrument diagnosis with traffic-light error presentation
- TÜV-tested to 1. BImSchV / EN 50379 Part 2
Temperature
-40 to +1200 °C
Draught Measurement
-9.99 to +40 hPa
Pressure Measurement
0 to 300 hPa
O2 Measurement
0 to 21 Vol. %
CO (without H2 compensation)
0 to 4000 ppm
CO (with H2 compensation)
0 to 8000 ppm
Efficiency (Eta)
0 to 120%
Flue Gas Loss
0 to 99.9%
NO Measurement (option)
0 to 3000 ppm
Memory
500,000 readings
Weight
600 g (without battery)
Dimensions
270 x 90 x 65 mm
Power Supply
Rechargeable battery pack 3.7 V / 2.6 Ah
Warranty
4 years instrument, probe and O2/CO sensors
It visualises measurement data graphically with a high-resolution colour display and a flue gas matrix that uses thumb and traffic-light symbols to show system status at a glance.
The Testo 330 LL measures CO from 0 to 4000 ppm without H2 compensation and 0 to 8000 ppm with H2 compensation, plus optional NO up to 3000 ppm.
The long-life LL sensors carry a 4-year guarantee with a life expectancy of up to 6 years for O2 and CO, reducing follow-on costs.
The powerful Li-ion rechargeable battery provides more than 10 hours of use with the pump running, with no memory effect or deep discharge.
Yes. It is TÜV-tested according to 1. BImSchV / EN 50379 Part 2 for O2, temperature, pressure and CO with H2 compensation.
