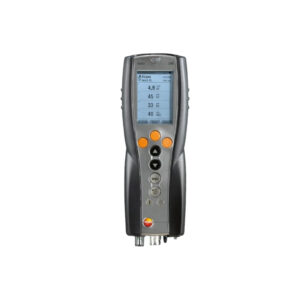

Testo 330
Flue Gas Analyser
i
This product has been discontinued and is no longer available. In many cases we can still service and calibrate it. Talk to our team about spares or alternatives.
The Testo 330 flue gas analyser adds convenience and reliability with instrument diagnosis that reports the qualitative status of functions at the touch of a button. The 330-2 LL version reliably displays CO values up to 30,000 ppm using patented automatic dilution.
KEY BENEFITS
- Instrument diagnosis reports function status at a glance
- Automatic probe recognition for dT, dP and flue gas probes
- Quick-release probe device connects gas paths without mix-ups
- Particle filter located directly in the probe handle
- CO measurement up to 30,000 ppm with automatic dilution (330-2 LL)
+ more in the Description tab below
Reliable flue gas analysis with built-in instrument diagnosis
The major advantage of the Testo 330 lies in its dialog feature: instrument diagnosis reports the qualitative status of functions at the touch of a button, including the level in a condensate trap and the condition of the gas sensors. Displayed maintenance intervals let you plan ahead so the analyser never lets you down unexpectedly.
Modular probes for differential temperature, differential pressure and flue gas are recognised automatically, with a quick-release device that connects all gas paths without mix-ups. A single rigid cable saves space and keeps things tidy, while the particle filter sits directly in the probe handle.
The Testo 330-2 LL adds an automatic leakproofness test and Testo’s patented technology that guarantees reliable display of CO values up to 30,000 ppm using automatic dilution, making it dependable even in badly polluted furnaces.
Benefits
- Instrument diagnosis reports function status at a glance
- Automatic probe recognition for dT, dP and flue gas probes
- Quick-release probe device connects gas paths without mix-ups
- Particle filter located directly in the probe handle
- CO measurement up to 30,000 ppm with automatic dilution (330-2 LL)
- Automatic instrument leakproofness test (330-2 LL)
- Ambient CO and ambient CO2 measurement
- Gas leak detection using a gas leak detection probe
- USB and IRDA interfaces plus optional Bluetooth transfer
- Official test to EN 50379 Parts 2 and 3
Temperature
-40 to +1200 C
Draught Measurement
-9.99 to +40 hPa
Pressure Measurement
0 to 200 hPa
O2 Measurement
0 to 21 Vol. %
CO Measurement (330-1)
0 to 4000 ppm (without H2 compensation)
CO Measurement (330-2 LL)
0 to 8000 ppm; 8000 to 30000 ppm with automatic dilution
NO Measurement (option)
0 to 3000 ppm
NOlow Measurement (option)
0 to 300 ppm
Efficiency (Eta)
0 to 120%
Memory
400 sites
Dimensions
270 x 90 x 65 mm
Weight
600 g (without rechargeable battery)
Power Supply
Rechargeable block 3.7 V / 2.2 Ah; mains unit 6 V / 1.2 A
Warranty
Instrument/probe/O2 and CO sensors 4 years; NO/NOlow 2 years
Its instrument diagnosis dialog reports the qualitative status of functions, such as condensate trap level and gas sensor condition, at the touch of a button.
Using Testo's patented automatic dilution, the 330-2 LL guarantees reliable display of CO values up to 30,000 ppm.
It measures O2, CO and CO2 as standard, with NO and NOlow available as options, plus ambient CO and CO2 with the appropriate probes.
Modular probes for differential temperature, differential pressure and flue gas are recognised automatically, with a quick-release device that connects all gas paths without mix-ups.
It is officially tested to EN 50379-2 for O2, temperature and pressure and to EN 50379-3 for CO.
