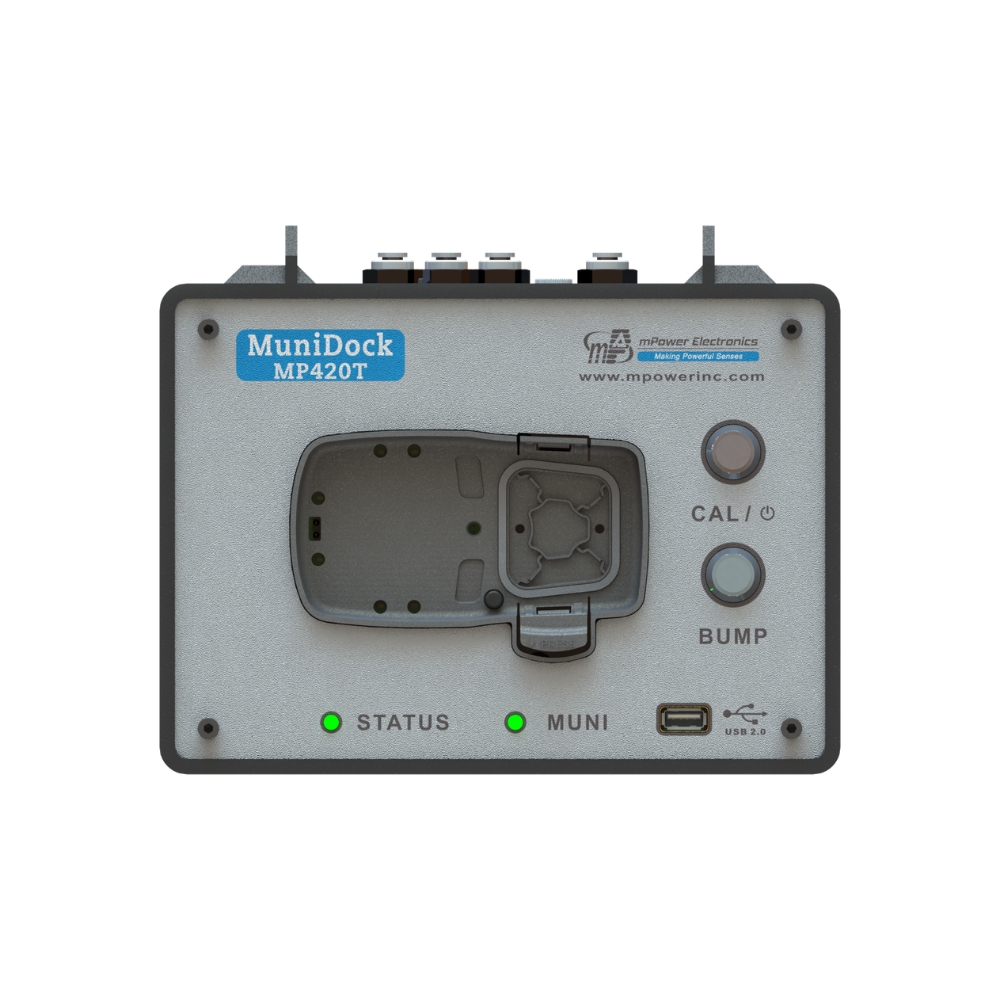

MuniDock MP420T
Docking Station
The MuniDock MP420T by M-Power is a docking and calibration station for the MUNI MP420 four gas detector. Just connect the gases, place the MUNI in the bay in communication mode and press start for a fast bump test or calibration. All results are stored in onboard flash memory as a compliance record that can be downloaded without the MUNI present. It runs on a rechargeable battery for up to 1,000 bump tests per charge, so it works in the field without mains power.
KEY BENEFITS
- One-button operation: place the MUNI in the bay in communication mode and press start
- Handles the four common gases, O2, CO, H2S and methane, plus a second inlet for alternate gases
- 2,000 calibration and bump test records stored in flash memory
- Records downloadable independently of the instrument, no instrument needed to access compliance history
- Second test gas inlet for alternate gases including hydrogen cyanide and sulphur dioxide
+ more in the Description tab below
Fast, Simple Compliance for the MUNI MP420
The MuniDock MP420T makes it straightforward to keep a MUNI MP420 fleet bump tested and calibrated. Connect the gases, place the MUNI in the bay in communication mode and press start. The MuniDock runs the bump test or calibration and stores the result in its flash memory.
There’s no manual data entry, and no need to keep the instrument docked to get to its compliance record later.
Gas Supply and Connections
The MuniDock is designed for the four most commonly measured gases: oxygen, carbon monoxide, hydrogen sulphide and methane, as a gas mix of up to four gases. A second test gas inlet handles alternate gases, including hydrogen cyanide and sulphur dioxide.
A built in pump draws air for zeroing and test gas for calibration and bump testing. Cylinders and regulators connect externally, and demand flow regulators are required. Quick connects for 6 mm OD tubing provide two test gas inlets, an air inlet for zeroing and a gas outlet for safe exhaust.
Compliance Records
The MuniDock stores up to 2,000 calibration and bump test records in reliable flash memory, separate from the MUNI instruments. Records download to a PC over USB using mPower Suite software, with or without the instrument present.
Portable for Field and Workshop Use
The rechargeable lithium battery gives up to 1,000 bump tests per charge, so the MuniDock works in the field without mains power. It charges from a 12 V DC wall adapter or from a PC over USB. The robust, all in one hard case protects it between sites.
The MuniDock is for use in non hazardous locations. Bump test and calibrate instruments in a safe area before taking them on site.
Benefits
- One-button operation: place the MUNI in the bay in communication mode and press start
- Handles the four common gases, O2, CO, H2S and methane, plus a second inlet for alternate gases
- 2,000 calibration and bump test records stored in flash memory
- Records downloadable independently of the instrument, no instrument needed to access compliance history
- Second test gas inlet for alternate gases including hydrogen cyanide and sulphur dioxide
- Portable rechargeable battery for up to 1,000 bump tests per charge
- Built in pump for air and test gas, used with a demand flow regulator on the cylinder
- Robust all-in-one hard case for field and workshop use
- 1-year warranty
- Charges from a 12 V DC wall adapter or from a PC over USB
Size
23.5 x 19.0 x 10.7 cm
Weight
2.0 kg
Compatible instruments
MUNI MP420 4-gas detector
Capacity
1 MUNI instrument
Functions
Bump testing, calibration and compliance record storage and download
Battery
Rechargeable lithium. Up to 1,000 bump tests per charge
Event log
2,000 calibration or bump records in flash memory
Power
On board rechargeable battery, charged by 12 V DC wall adapter or on PC with USB (Type A) charge and comms cable
Communications
USB Type A
Gas connections
Quick-connects for 6 mm OD tubing. 2 test gas inlets plus air inlet for zeroing. Gas outlet for safe exhaust
Built-in pump
Yes, for air or test gas
Operating temperature
0°C to 50°C
Humidity
5 to 95% RH non-condensing
Safety rating
For use in non-hazardous locations only
Software
mPower Suite for PC data download and certificate management
Warranty
1 year
- Aviation & Transportation
- Chemical Manufacturing
- Confined Space & Compliance
- Energy (Oil & Gas)
- Food & Beverage
- Landfill & Remediation
- Marine & Maritime
- Medical & Healthcare
- Mining & Minerals
- Power Generation & BESS
- Technology & Semiconductor
- Water & Wastewater
Connect the gases, place the MUNI MP420 in the bay in communication mode and press start. The MuniDock runs the bump test or calibration and stores the result in its flash memory.
Yes. Compliance records are stored independently in the docking station's flash memory and can be downloaded at any time without the MUNI instrument in the bay.
The MuniDock has a built in pump for air and test gas, but test gas cylinders need a demand flow regulator. Cylinders and regulators connect externally and aren't included.
No. The MP420T is rated for use in non-hazardous locations only.
The rechargeable lithium battery supports up to 1,000 bump tests per charge.
