GasBadge Pro
Single Gas Detector

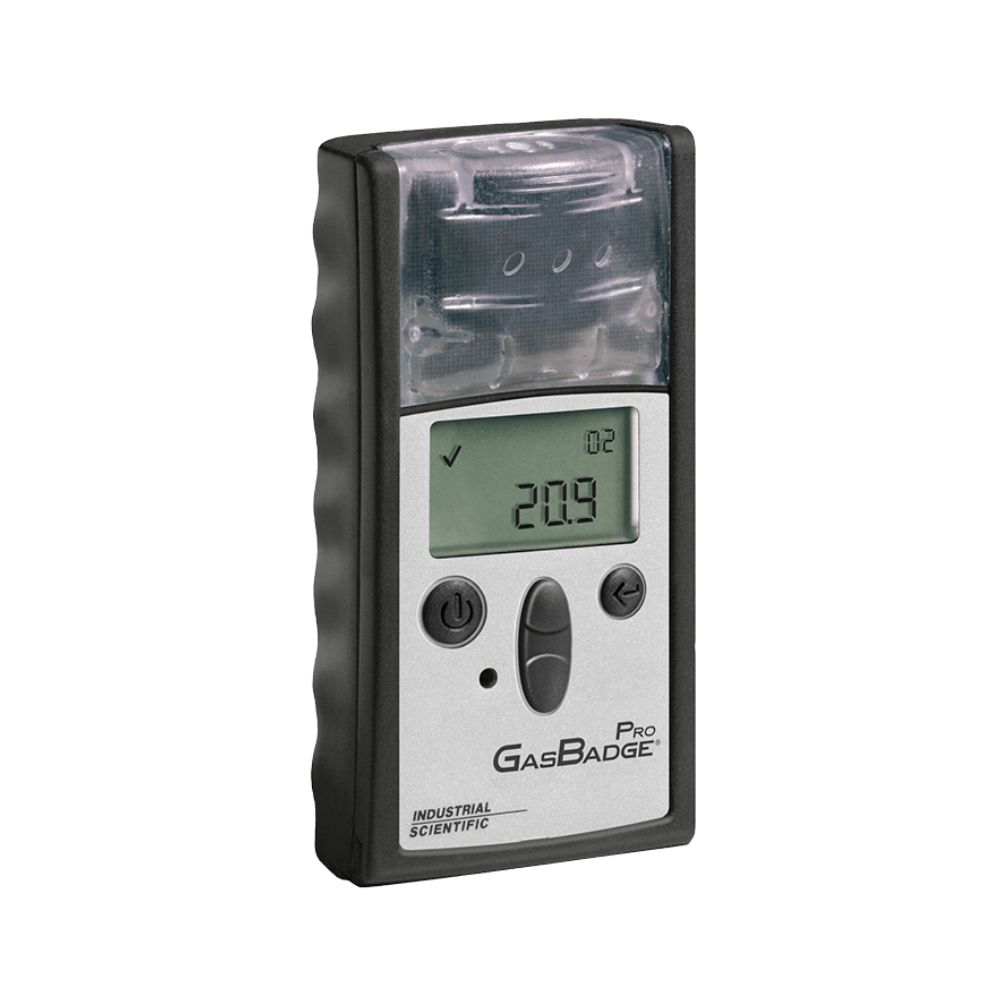

The GasBadge Pro by Industrial Scientific is a feature-rich single gas detector built to the highest quality and reliability standards. With interchangeable smart sensors covering oxygen and a wide range of toxic gases, a Guaranteed for Life warranty, one year of continuous data logging and DSX Docking Station compatibility, the GasBadge Pro delivers more capability than any other single gas monitor in its class. It is suited to a broad range of industrial applications and backed by Industrial Scientific’s global reputation for gas detection excellence.
KEY BENEFITS
- Interchangeable smart sensors monitor O2 or any one of many toxic gases
- One year data logging capacity (minimum)
- Standard STEL and TWA readings

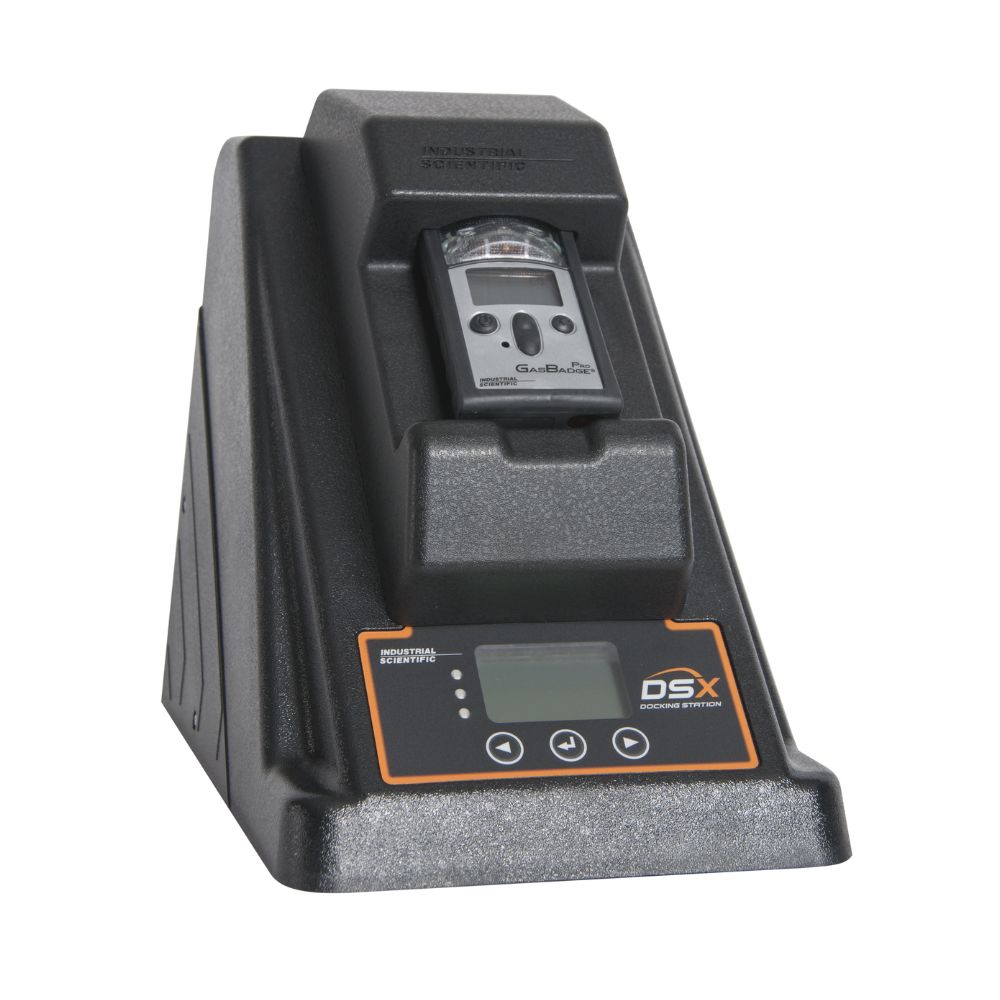

- DSX Docking Station compatible for easy bump testing, calibration and data download
- Guaranteed for Life warranty on the instrument
+ more in the Description tab below
More Features Than Any Other Single Gas Monitor in Its Class
The GasBadge Pro by Industrial Scientific is built to the same exacting quality and reliability standards that define the Industrial Scientific product range. Designed for workers who need dependable single gas protection across a wide range of environments, the GasBadge Pro combines ease of use with a feature set that outperforms comparable single gas monitors at its price point.
At the core of its design is a range of interchangeable smart sensors that allow the GasBadge Pro to be quickly adapted to monitor oxygen or any one of a wide range of toxic gases, without requiring a new instrument. Sensors are user-replaceable, and CO, H2S and O2 sensors carry a two-year warranty. All other sensors are warranted for one year.
Data Logging and Compliance
The GasBadge Pro logs up to one year of continuous survey data and records the last 15 alarm events, with each event stamped with how long ago it occurred, its duration and the peak reading seen during the event. Standard STEL and TWA readings are included as standard, supporting compliance reporting without additional configuration. Event logs can be viewed on a PC or printed directly from the instrument to an infrared printer.
Simple Operation and Connectivity

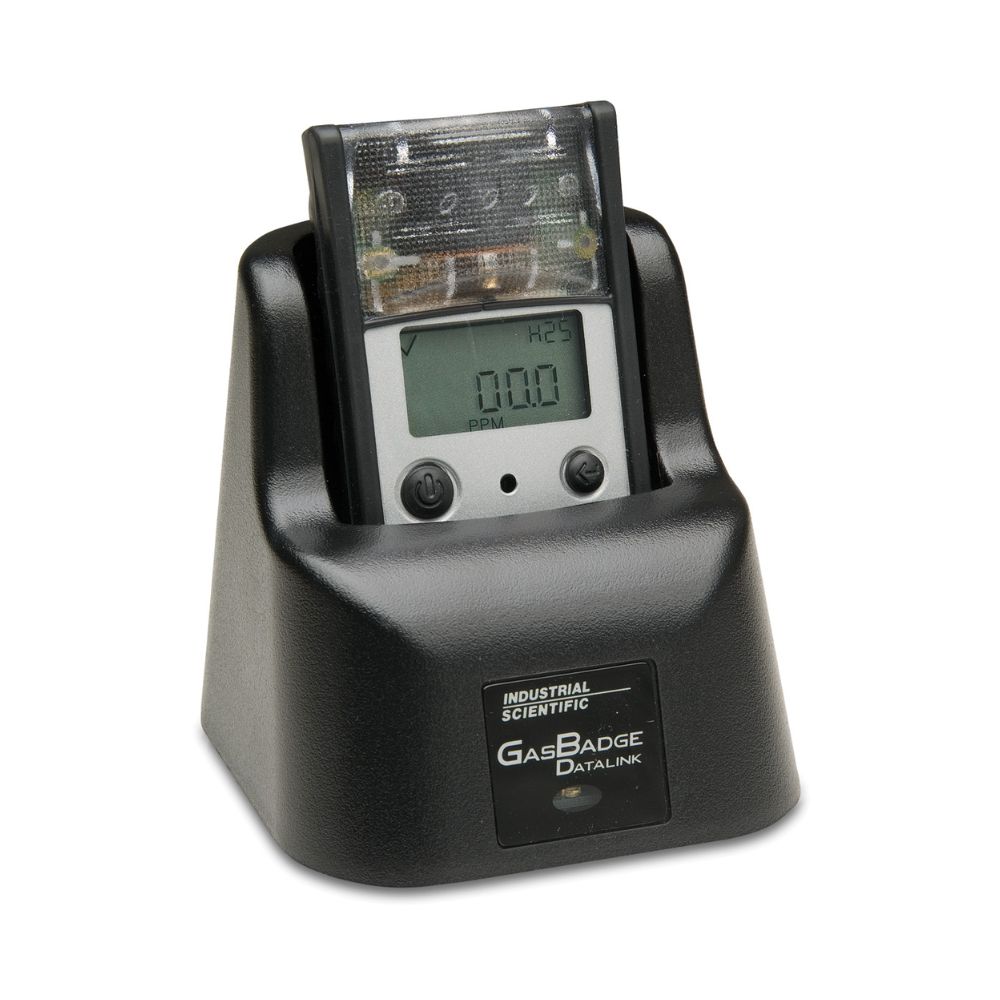

The GasBadge Pro’s four-button interface provides intuitive navigation and access to setup, operation and calibration functions. The large LCD display includes a backlight for low-light conditions and supports both direct gas readings and a simple Go/No-Go display mode. The instrument communicates via infrared interface with the DSX Docking Station, Datalink and infrared printer for automated calibration, bump testing and data management.
Built Tough
The GasBadge Pro is housed in a rugged, water-resistant polycarbonate shell with a protective concussion-proof overmold designed to withstand the abuse of demanding industrial environments. At only 85 grams, it is lightweight enough to wear comfortably throughout a full shift. The top-mounted sensor design allows continuous and unobstructed gas detection even when the unit is placed in a shirt pocket. The instrument carries a Guaranteed for Life warranty – warranted for as long as it is supported by Industrial Scientific Corporation.
Benefits
- Interchangeable smart sensors monitor O2 or any one of many toxic gases
- One year data logging capacity (minimum)
- Standard STEL and TWA readings
- DSX Docking Station compatible for easy bump testing, calibration and data download
- Guaranteed for Life warranty on the instrument
- Extremely durable concussion-proof overmold housing
- IP64 rated for dust and water resistance
- User adjustable alarm and calibration set points
- PPM or percentage by volume readout
- Low cost, easy maintenance
Dimensions
94 x 50.8 x 27.9 mm
Weight
85 g
Display
Custom LCD with graphical icons, backlight, Go/No-Go mode, peak reading indication
Keypad
Four buttons
Battery
User replaceable 3V CR2 lithium, 2,600 hour typical run time
Data logging
1 year continuous
Event logger
Last 15 alarm events with timestamp, duration and peak reading
Alarms
User selectable Low and High, ultra-bright LEDs, 95 dB audible, vibration
Operating temperature
-40°C to +60°C
Humidity
0 to 99% RH non-condensing
IP rating
IP64 (third-party certified)
Sensor technology
Electrochemical (smart sensors)
Warranty
Guaranteed for Life (instrument). CO, H2S, O2: 2 years. All others: 1 year
Certifications
ATEX Ex ia I/Ex ia IIC T4 I M1/II 1G, IECEx Ex ia I/IIC T4, ANZEx Ex ia I/IIC T4, UL/cUL Class I Groups ABCD T4 / Class II Groups EFG / Class I Zone 0 AEx ia IIC T4, CSA Class I Groups ABCD T4, INMETRO Ex ia I Ma / Ex ia IIC T4 Ga, China Ex, KOSHA
Chlorine
Cl2
Chlorine Dioxide
ClO2
Carbon Monoxide
CO
Hydrogen
H2
Hydrogen Sulphide
H2S
Hydrogen Cyanide
HCN
Ammonia
NH3
Nitrogen Dioxide
NO2
Oxygen
O2
Phosphine
PH3
Sulphur Dioxide
SO2
- Aviation & Transportation
- Carpark & HVAC
- Chemical Manufacturing
- Confined Space & Compliance
- Energy (Oil & Gas)
- Food & Beverage
- Landfill & Remediation
- Marine & Maritime
- Medical & Healthcare
- Mining & Minerals
- Power Generation & BESS
- Technology & Semiconductor
- Water & Wastewater
The GasBadge Pro offers more features than comparable single gas monitors at its price point, including one year of continuous data logging, standard STEL and TWA readings, interchangeable smart sensors, a Guaranteed for Life warranty and DSX Docking Station compatibility.
Yes. The GasBadge Pro uses interchangeable smart sensors that allow the instrument to be quickly reconfigured to detect a different gas without replacing the instrument.
The GasBadge Pro instrument is warranted for as long as it is supported by Industrial Scientific Corporation. CO, H2S and O2 sensors carry a two-year warranty. All other sensors carry a one-year warranty. The warranty excludes batteries, sensors and filters.
Yes. It is compatible with the DSX Docking Station for automated bump testing, calibration and data download. It also communicates via infrared interface with the Datalink and infrared printer for data management.
The GasBadge Pro continuously logs the last 15 alarm events. Each event is stamped with how long ago it occurred, its duration and the peak reading seen during the event. Logs can be viewed on a PC or printed directly from the instrument.
The GasBadge Pro uses a user-replaceable 3V CR2 lithium battery with a typical run time of 2,600 hours, approximately 108 continuous days.
