SC-8000
Portable Toxic Gas Detector

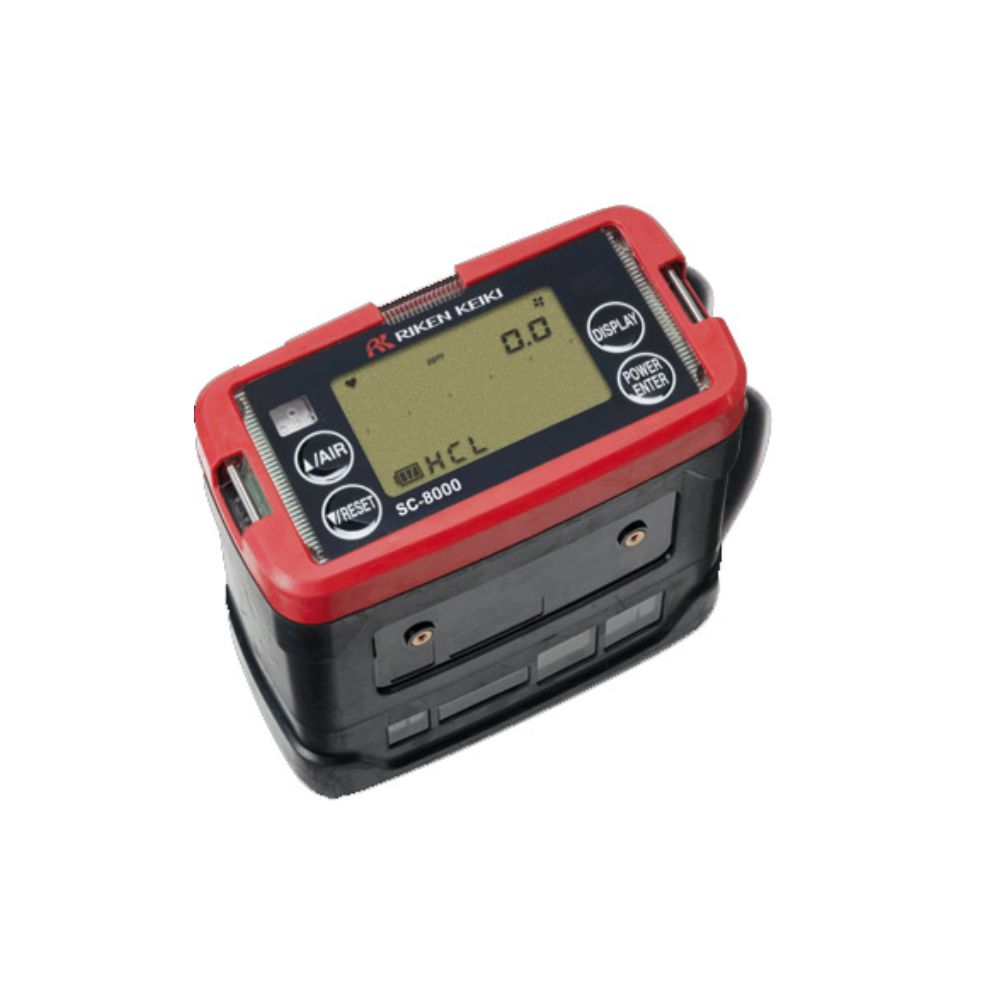

The SC-8000 by Riken Keiki is a portable toxic gas monitor designed for detection of a wide range of toxic gases across demanding industrial environments. With its large LCD display showing simultaneous digital concentration and analogue bar meter readings, the SC-8000 is clearly readable even when the operator is wearing a HazMat suit. Equipped with a powerful built-in suction pump, 95 dB audible alarm, three bright LED alarm lamps, IP67 ingress protection and IECEx and ATEX intrinsic safety certification, the SC-8000 sets a high standard for rugged, reliable portable toxic gas detection in hazardous locations.
KEY BENEFITS
- Wide range of target gases covering common and exotic toxic gases across industrial, semiconductor and chemical applications
- Simultaneous display of gas concentration as digital value and analogue bar meter
- Large LCD display visible even through HazMat suit visor
- Powerful built-in suction pump for strong sample drawing capability
- 95 dB audible alarm with adjustable volume control
+ more in the Description tab below
Visible. Loud. Certified. The SC-8000 Does Not Miss an Alarm.
The SC-8000 was designed for environments where ordinary portable gas detectors are not enough. Whether operators are working in semiconductor manufacturing, petrochemical processing, chemical plants, refineries or confined spaces, the SC-8000 delivers the combination of ruggedness, sensor versatility and alarm performance that demanding toxic gas applications require.

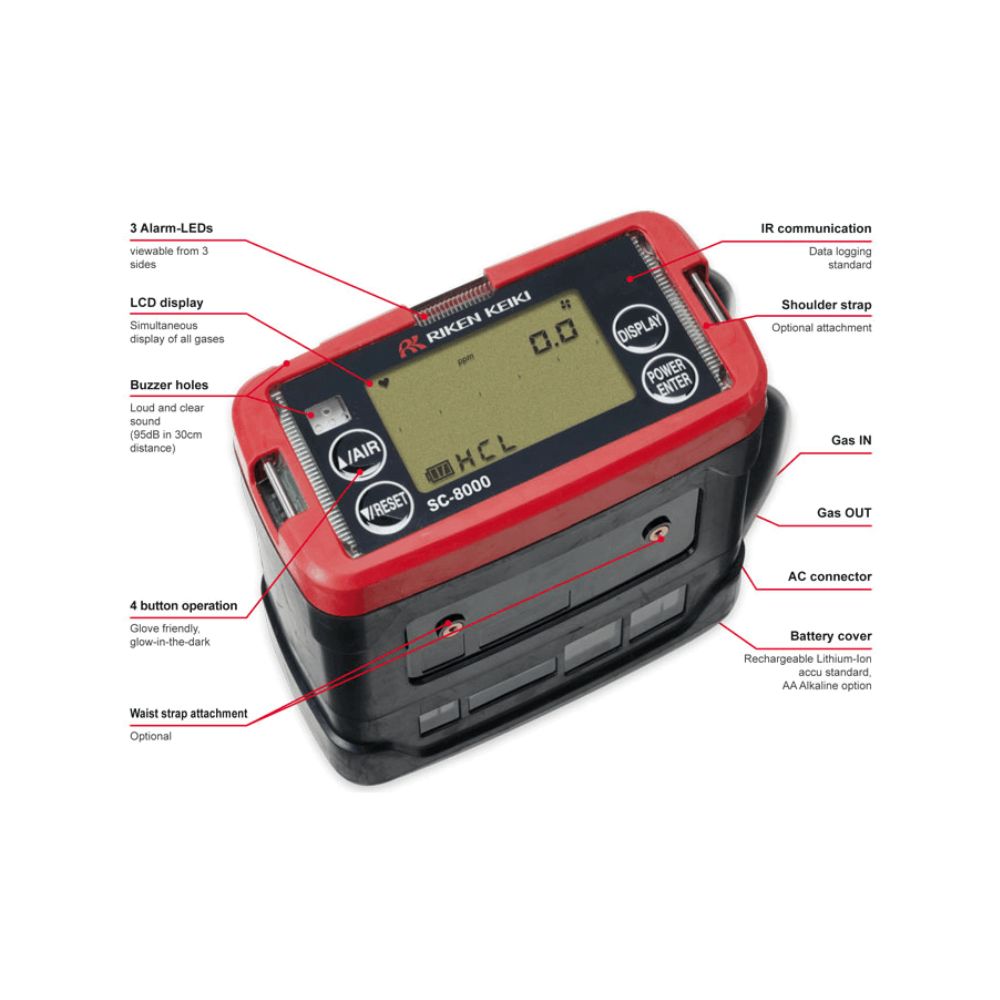

Its large LCD display simultaneously shows gas concentration as a digital numeric value and as an analogue bar meter, giving operators instant visual information about both the exact reading and how close it is to the alarm threshold. Three bright LED alarm lamps are arranged to be visible from all angles, ensuring the alarm is seen even when the operator is not facing toward the instrument. In loud industrial environments, the 95 dB adjustable buzzer cuts through background noise to deliver an unmistakable audible alert.
A Broad Range of Detectable Gases
The SC-8000’s defining capability is the breadth of its target gas range. Using potentiostatic electrolysis (electrochemical) sensor technology, it covers an extensive list of toxic gases commonly encountered across the semiconductor, chemical manufacturing, petrochemical and utilities industries. This includes specialised gases such as silane (SiH4), arsine (AsH3), phosphine (PH3), diborane (B2H6), germane (GeH4), hydrogen fluoride (HF), chlorine trifluoride (ClF3), hydrogen bromide (HBr), fluorine (F2) and many others, as well as common industrial toxic gases like ammonia, CO, H2S, NO2, SO2 and HCl.
Rugged and Certified for Hazardous Locations
The SC-8000 carries IECEx, ATEX and Japanese Explosion Protection certifications, classified as Ex ia IIC T4 Ga, making it suitable for use in the most demanding hazardous locations. IP67 ingress protection ensures complete dust sealing and short-term water immersion resistance, keeping the unit operational in the wet, contaminated environments common in chemical and utilities applications.
Flexible Power Options
The SC-8000 is available with either a lithium-ion rechargeable battery unit for approximately 25 hours of continuous operation, or a dry battery unit using three AA alkaline batteries for approximately 18 hours of operation. Both options provide a full working day of runtime without a battery change or recharge.
Benefits
- Wide range of target gases covering common and exotic toxic gases across industrial, semiconductor and chemical applications
- Simultaneous display of gas concentration as digital value and analogue bar meter
- Large LCD display visible even through HazMat suit visor
- Powerful built-in suction pump for strong sample drawing capability
- 95 dB audible alarm with adjustable volume control
- Three bright LED alarm lamps arranged in three directions for all-angle visibility
- IP67 dust and waterproof rated for harsh environments
- Intrinsically safe: IECEx and ATEX certified
- Datalogging standard with optional data logger management program
- Available with lithium-ion rechargeable battery (25-hour runtime) or dry battery unit (18-hour runtime)
Dimensions
Approx. 154 (W) x 81 (H) x 154 (D) mm, excluding projections
Weight
Approx. 1.0 kg (dry battery unit), approx. 1.1 kg (lithium-ion unit)
Sampling method
Pump suction, single type
Detection principle
Potentiostatic Electrolysis Method (electrochemical)
Detection range
Depends on target gas
Alarm type
Gas alarm and fault alarm
Alarm display
Lamp: LEDs flash. Buzzer: alternating high and low pitch (gas alarm), continuous sound (failure alarm). Display: gas concentration flashes (gas alarm), alarm message flashes (failure alarm).
Alarm pattern
Self-latching
Suction flow rate
Approx. 0.5 L/min
Display
LCD digital (seven-segment + symbol + bar meter), simultaneous digital and analogue display
Additional display
Clock, battery level icon, pilot indicator, pump indicator
Buzzer volume
95 dB(A) or higher at 30 cm, adjustable
Datalogging
Standard. Optional data logger management program available
IrDA
Yes, for data logger connection
Power supply
Lithium-ion battery unit or dry battery unit (3x AA alkaline)
Continuous operation
Approx. 18 hours (dry battery), approx. 25 hours (lithium-ion), at 25°C without alarm or backlight
Operating temperature
-10°C to 40°C (no sudden changes)
Operating humidity
20 to 88% RH (non-condensing)
P rating
IP67
Explosion protection
Intrinsic safety
Explosion-proof class
IECEx: Ex ia IIC T4 Ga. ATEX: II 1G Ex ia IIC T4 Ga
Certifications
Japan Ex, IECEx, ATEX, CE (EMC, ATEX, RoHS)
Arsine
AsH3
Chlorine
Cl2
Carbon Monoxide
CO
Hydrogen Sulphide
H2S
Hydrogen Chloride
HCl
Hydrogen Cyanide
HCN
Hydrogen Fluoride
HF
Ammonia
NH3
Nitric Oxide
NO
Nitrogen Dioxide
NO2
Ozone
O3
Phosphine
PH3
Silane
SiH4
Sulphur Dioxide
SO2
- Chemical Manufacturing
- Aviation & Transportation
- Carpark & HVAC
- Confined Space & Compliance
- Energy (Oil & Gas)
- Medical & Healthcare
- Mining & Minerals
- Technology & Semiconductor
- Water & Wastewater
Many gases used in semiconductor, LED and solar cell manufacturing — including silane, arsine, phosphine, diborane, germane, chlorine trifluoride and hydrogen fluoride — are highly toxic at very low concentrations. The SC-8000's broad sensor range covers the specialised gases common in these environments that most standard personal gas detectors cannot detect.
The dry battery unit uses three AA alkaline batteries and provides approximately 18 hours of operation. The lithium-ion battery unit provides approximately 25 hours of operation on a single charge. Both options are available for the SC-8000.
Yes. The SC-8000 holds IECEx and ATEX intrinsic safety certifications (Ex ia IIC T4 Ga) as well as Japanese explosion protection approval, making it suitable for use in classified hazardous locations.
Yes. The SC-8000 includes IrDA for data logger connectivity. An optional data logger management program is available for PC-based data download and management.
The SC-8000 performs an air calibration (fresh air zero) on startup. Span calibration is performed using calibration gas specific to the target gas installed in the unit. Contact Gastech for calibration gas and service support.
