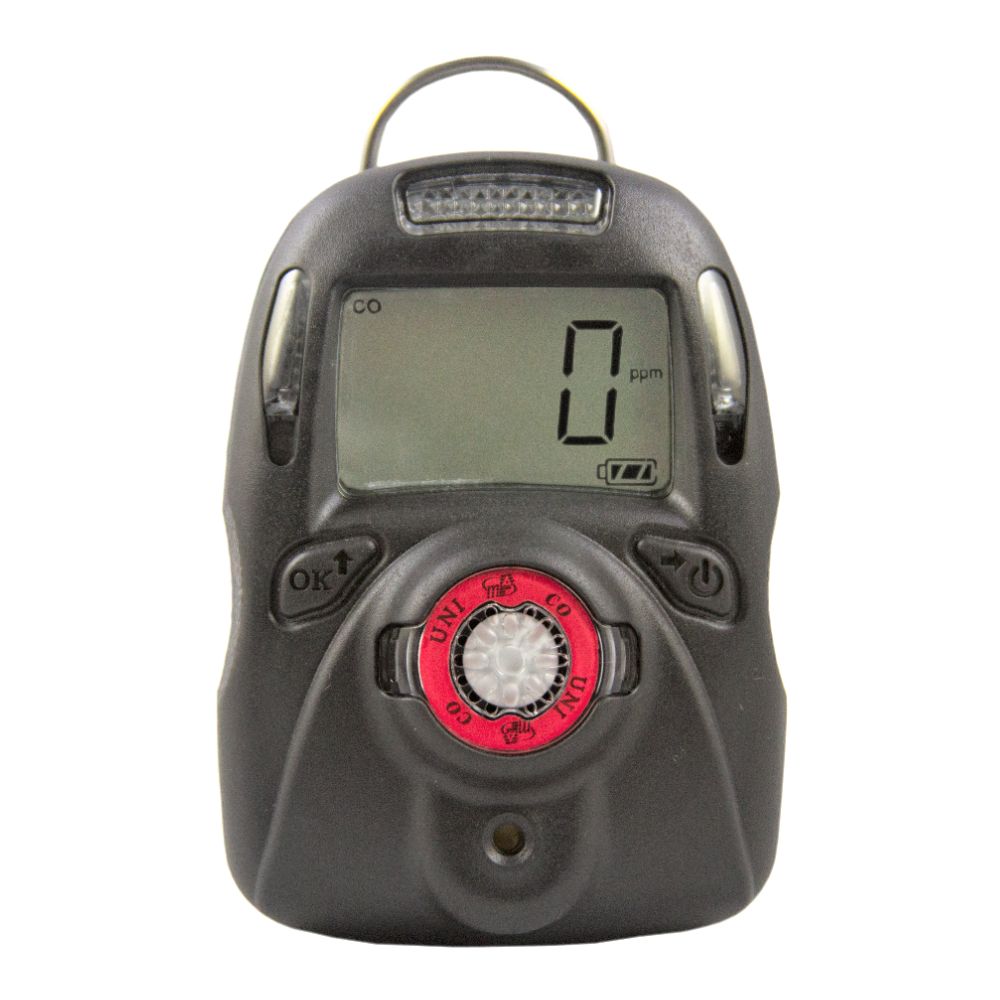

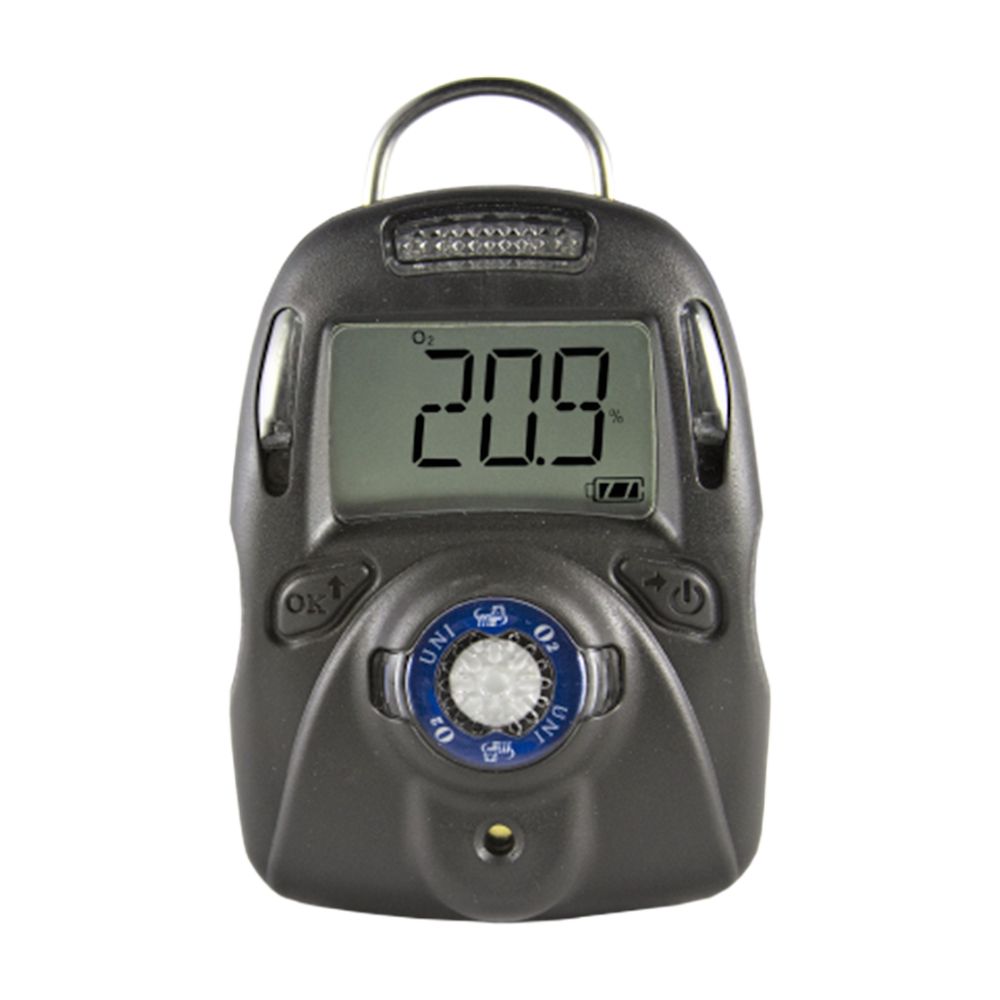

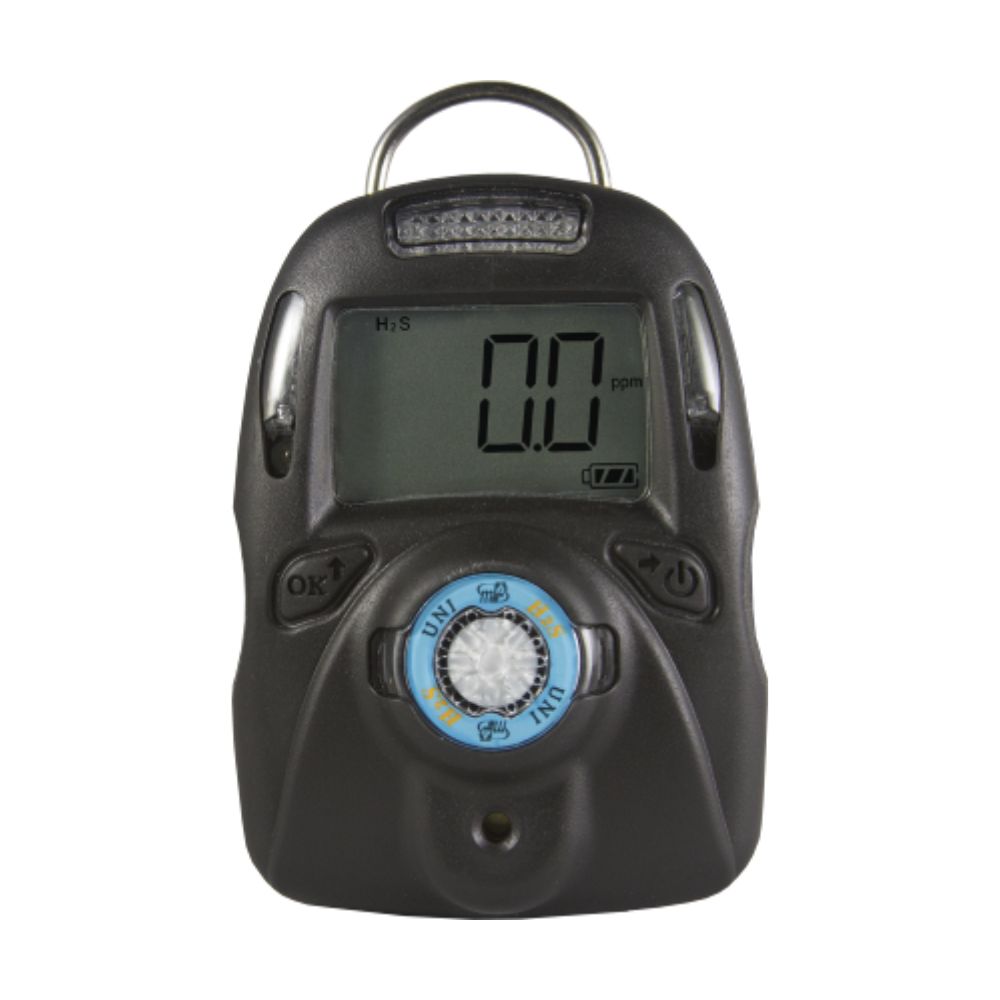

UNI MP100
Single Gas Detector
The UNI MP100 is a serviceable single gas detector from M-Power, offering personal protection across the widest range of toxic gases and oxygen applications available in its class. Unlike the disposable UNI 321, the MP100 features a replaceable sensor and battery, making it suitable for long-term deployment with lower ongoing cost. It displays real-time gas concentration continuously on a large LCD, and also monitors STEL, TWA and peak values on demand. With IECEx, ATEX and UL hazardous location certifications, the MP100 is suited to a broad range of industrial applications across Australia and internationally.
KEY BENEFITS
- 50% larger AA lithium battery for extended runtime
- Widest choice of sensors on the market
- Large display showing real-time gas concentration, STEL, TWA and peak values
- 50 event data logging
- Low cost of ownership
+ more in the Description tab below
The Single Gas Detector Built for the Widest Range of Applications
The UNI MP100 by M-Power is a portable, personal single gas detector designed for workers who need reliable toxic gas monitoring across a broader range of gases than most single gas instruments support. Beyond the common sensors found in most personal monitors, the MP100 supports a wide range of less-common toxic gases, making it one of the most versatile single gas detectors available in the Australian market.
Unlike the disposable UNI 321, the MP100 is a fully serviceable instrument with a user-replaceable sensor and battery. CO and H2S sensors have a typical operating life of five years, while other sensors carry a one to two year warranty. This makes the MP100 a cost-effective long-term option for operations that require continuous personal gas monitoring.
Display and Monitoring
The MP100 displays real-time gas concentration continuously on a large, easy-to-read LCD. Beyond the live reading, the instrument also monitors and displays STEL, TWA and peak values on demand, providing the data needed for compliance reporting and incident investigation. High, Low, STEL and TWA alarm thresholds are all user-configurable.
Six bright red LEDs provide immediate visual alarm notification alongside a 95dB audible alarm and a built-in vibration alert, ensuring workers are alerted even in high-noise environments.
Serviceability and Calibration

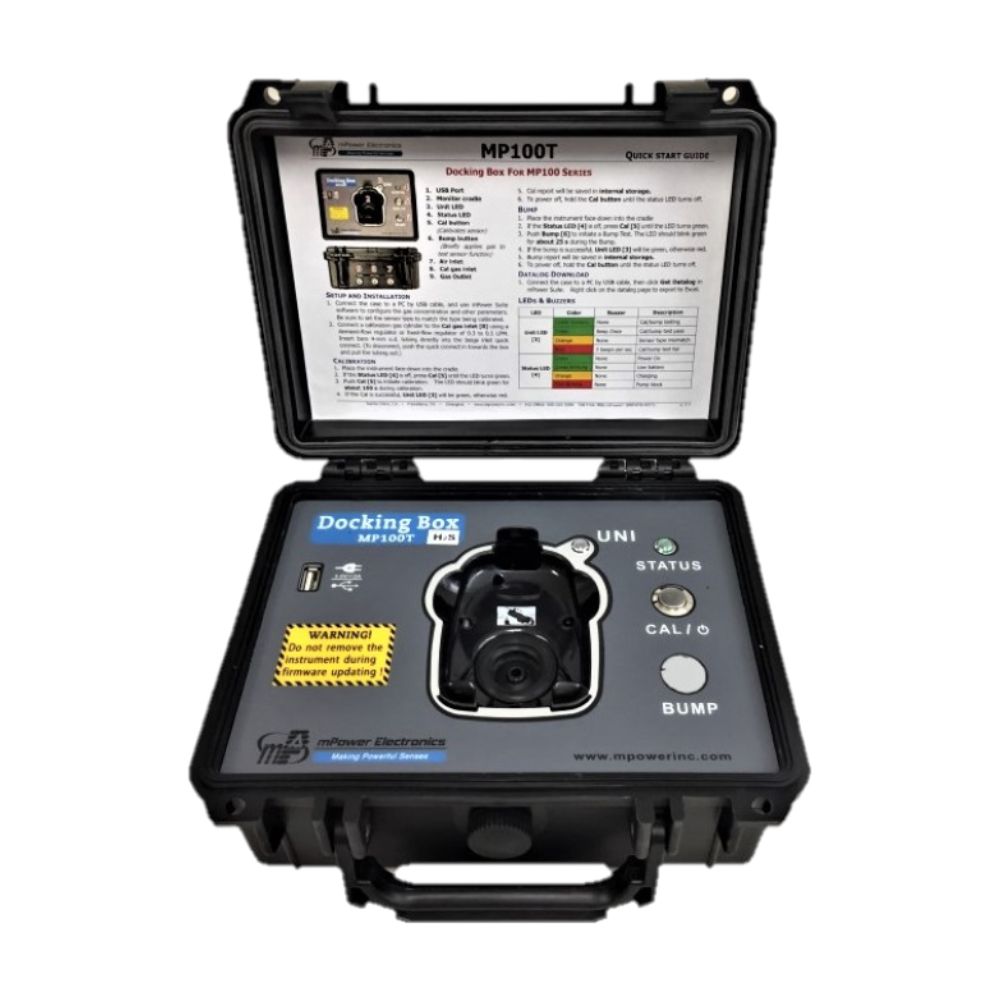

The MP100 is designed to be simple to maintain in the field. The sensor and battery are both user-replaceable, reducing downtime and service costs. Bump testing and calibration are straightforward using the mPower Single Docking Box or the 4-Bay CaliCase system, both of which also support configuration and alarm event download. Data can also be downloaded using mPower Suite software for compliance record-keeping.
With IP67 ingress protection and certifications for IECEx, ATEX and UL Class I Division 1 hazardous locations, the MP100 is rated for use in the most demanding industrial environments.
Benefits
- 50% larger AA lithium battery for extended runtime
- Widest choice of sensors on the market
- Large display showing real-time gas concentration, STEL, TWA and peak values
- 50 event data logging
- Low cost of ownership
- Smart sensors for simplified replacement
- Solid stainless-steel alligator clip
- Durable, drop-resistant housing
- Fast bump testing, calibration and data download using Single Docking Box or 4-Bay CaliCase
- UL classified, IECEx and ATEX certified for hazardous locations
Size
88 x 62 x 33 mm
Weight
125 g
Sensor type
Electrochemical
Response time (t90)
15 seconds (CO, H2S, O2). Others vary by sensor
Battery
Replaceable AA size lithium, 3 years typical operation
Operating temperature
-20°C to +50°C
Humidity
5 to 95% RH non-condensing
Alarm type
High, Low, STEL and TWA alarms (adjustable), Over range alarm, Low battery alarm
Alarm signal
95 dB at 30 cm, 6 bright red LEDs, built-in vibration
Calibration
2-point calibration, zero and span, power-on zero (user-selectable)
Docking stations
UNI Single Docking Box, CaliCase 4-Bay Docking Station
Event log
Up to 50 alarm events
IP rating
IP67
EMI/RFI
EMC Directive 2014/30/EU
Sensor life
CO and H2S: 5 years typical. Others: 1 to 2 years as per warranty
Warranty
2 years including sensor for O2, CO, H2S, SO2, HCN, NO, NO2 and PH3. 1 year on all others
Certifications
IECEx Ex ia IIC T4 Ga, ATEX II 1G Ex ia IIC T4 Ga, UL Class I Div 1 Groups ABCD, Class II Div 1 Groups EFG, Class III Div 1 T4
Ethylene Oxide (ETO)
C2H4O
Methyl Mercaptan (Methanethiol)
CH3SH
Chlorine
Cl2
Chlorine Dioxide
ClO2
Carbon Monoxide
CO
Phosgene
COCl2
Hydrogen
H2
Hydrogen Sulphide
H2S
Hydrogen Chloride
HCl
Hydrogen Cyanide
HCN
Ammonia
NH3
Nitric Oxide
NO
Nitrogen Dioxide
NO2
Oxygen
O2
Ozone
O3
Phosphine
PH3
Sulphur Dioxide
SO2
- Aviation & Transportation
- Chemical Manufacturing
- Confined Space & Compliance
- Energy (Oil & Gas)
- Food & Beverage
- Landfill & Remediation
- Marine & Maritime
- Medical & Healthcare
- Mining & Minerals
- Power Generation & BESS
- Technology & Semiconductor
- Water & Wastewater
The UNI 321 is a disposable, maintenance-free detector with a fixed 2 or 3-year operating life. The UNI MP100 is a serviceable instrument with a replaceable sensor and battery, making it better suited to long-term deployment where ongoing maintenance is manageable.
The MP100 supports one of the widest sensor ranges of any single gas detector on the market, covering common gases including CO, H2S, O2, NH3 and SO2, as well as less-common gases including chlorine, phosgene, hydrogen fluoride, arsine, ethylene oxide and more.
Yes. The MP100 continuously displays real-time gas concentration and also monitors STEL, TWA and peak values, which can be displayed on demand. All alarm thresholds are user-configurable.
The MP100 uses a replaceable AA lithium battery with a typical operating life of three years. The battery is user-replaceable in the field.

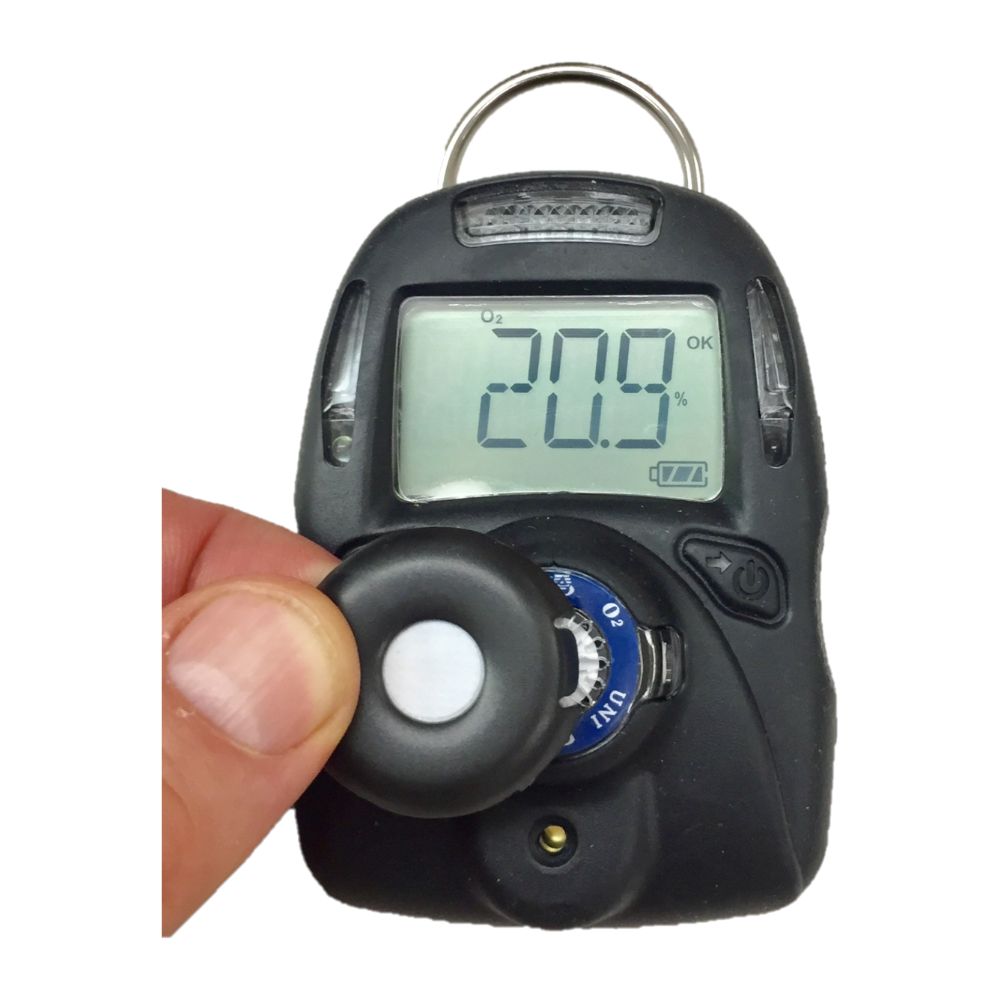

Yes. The MP100 is designed for easy sensor replacement. CO and H2S sensors have a typical life of five years. Other sensors carry a one to two year warranty depending on the gas type.
Alarm events and calibration records can be downloaded using a UNI Single Docking Box, CaliCase 4-Bay Docking Station or a PC running mPower Suite software.
