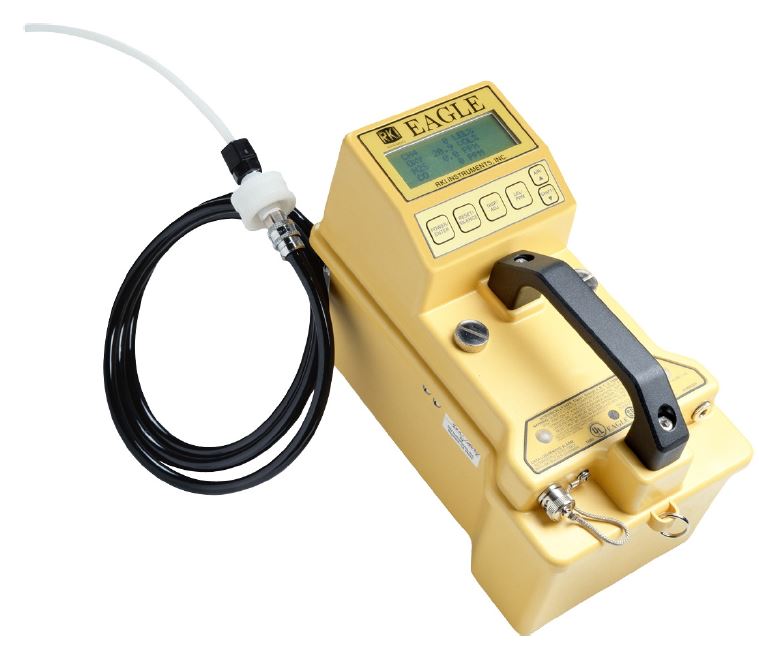

Eagle
Multi Gas Detector
i
This product has been discontinued and is no longer available. In many cases we can still service and calibrate it. Talk to our team about spares or alternatives.
The Eagle is a powerful portable monitor that detects up to six gases simultaneously, offering more than standard confined space protection for LEL, O2, H2S and CO. It features a long-life sample-draw pump and an exceptionally wide selection of field-proven sensors.
KEY BENEFITS
- Simultaneous detection of up to 6 different gases
- Over 250 gas monitoring configurations
- Wide variety of field proven gas sensors available
- PPM/LEL hydrocarbon detection
- Powerful long-life inbuilt sample draw pump
+ more in the Description tab below
Six-Gas Confined Space Protection in One Rugged Instrument
The Eagle goes well beyond standard confined space monitoring, with detection combinations never before offered in a portable gas monitor. It draws on the industry’s widest selection of high-quality, long-life and field-proven sensors to cover more than 250 monitoring configurations.
An ergonomic design puts autocalibration, alarm silence, demand zero and peak hold within easy reach. Each channel offers two alarm levels plus TWA and STEL alarms for toxic channels, with adjustable, latching or self-resetting settings.
A strong internal pump draws samples from over 38 metres for quick response and recovery, while the Eagle runs continuously for over 30 hours on alkaline batteries. Rugged, weatherproof and easy to maintain, it is engineered for demanding portable gas detection.
Benefits
- Simultaneous detection of up to 6 different gases
- Over 250 gas monitoring configurations
- Wide variety of field proven gas sensors available
- PPM/LEL hydrocarbon detection
- Powerful long-life inbuilt sample draw pump
- Low flow pump shut off and alarm
- Methane elimination switch for environmental use
- Up to 30 hours of continuous operation
- IR sensors available for CO2, %LEL CH4 and 0-100% vol CH4
- Intrinsically safe design, CSA/NRTL and UL classified
Dimensions
27cm x 15cm x 17.7cm (L x W x H)
Weight
2.3 kg
Detection Principle
Catalytic combustion, electrochemical cell, galvanic cell and infrared
Sensor Life
Two (2) years under normal conditions
Sampling Method
Long-life pump draws samples over 38 metres, flow rate approx. 2.0 SCFH
Display
4 x 20 LCD readout with backlighting, all channels simultaneously
Alarms
Two alarms per channel plus TWA and STEL alarms
Alarm Method
Buzzer 85 dB at 30cm, dual high intensity LEDs and flashing display
Continuous Operating Hours
30 hours minimum (alkaline) or 18 hours (Nicads)
Power Source
Size D batteries, 4 alkaline or Nicad
Operating Temp & Humidity
-10°C to 40°C, 0 to 95% RH, non-condensing
Response Time
30 seconds to 90% for most gases
Safety Design
Intrinsically safe, Class I, Division 1, Groups A, B, C and D
Warranty
Two year material and maintenance
The Eagle can detect up to six different gases simultaneously and supports over 250 monitoring configurations from a wide range of field-proven sensors.
Its powerful long-life internal pump can draw samples from over 38 metres, with a low-flow alarm that shuts the pump off to prevent damage.
The Eagle operates continuously for at least 30 hours on alkaline batteries, or 18 hours on Ni-Cad batteries.
Yes. It carries an intrinsically safe design rated Class I, Division 1, Groups A, B, C and D, and is CSA/NRTL and UL classified on most versions.
Each channel has two alarm levels plus TWA and STEL alarms for toxic channels, signalled by an 85 dB buzzer, dual high-intensity LEDs and a flashing display.
