POLI MP400 and MP400P
Pumped and Diffusion Multi Gas Detectors
The POLI MP400 and MP400P by M-Power are multi gas detectors with four sensor slots for up to six gas measurements, using combination sensors. The MP400 is a rugged diffusion detector for personal protection, and the MP400P adds a built in pump with a full choice of sensors for confined space entry. With over 30 plug and play smart sensors, a 360 degree LED alarm bar, Man Down alarm, flip screen and six months of continuous datalogging, it’s a flexible platform for a wide range of applications.
KEY BENEFITS
- Up to 6 gases monitored simultaneously using combination sensors across 4 sensor slots
- Over 30 interchangeable plug-and-play smart sensors carry calibration data for fast field exchange
- 360-degree LED alarm bar ensures alarm visibility from all angles
- Man Down alarm with pre alarm, plus a manual panic alarm

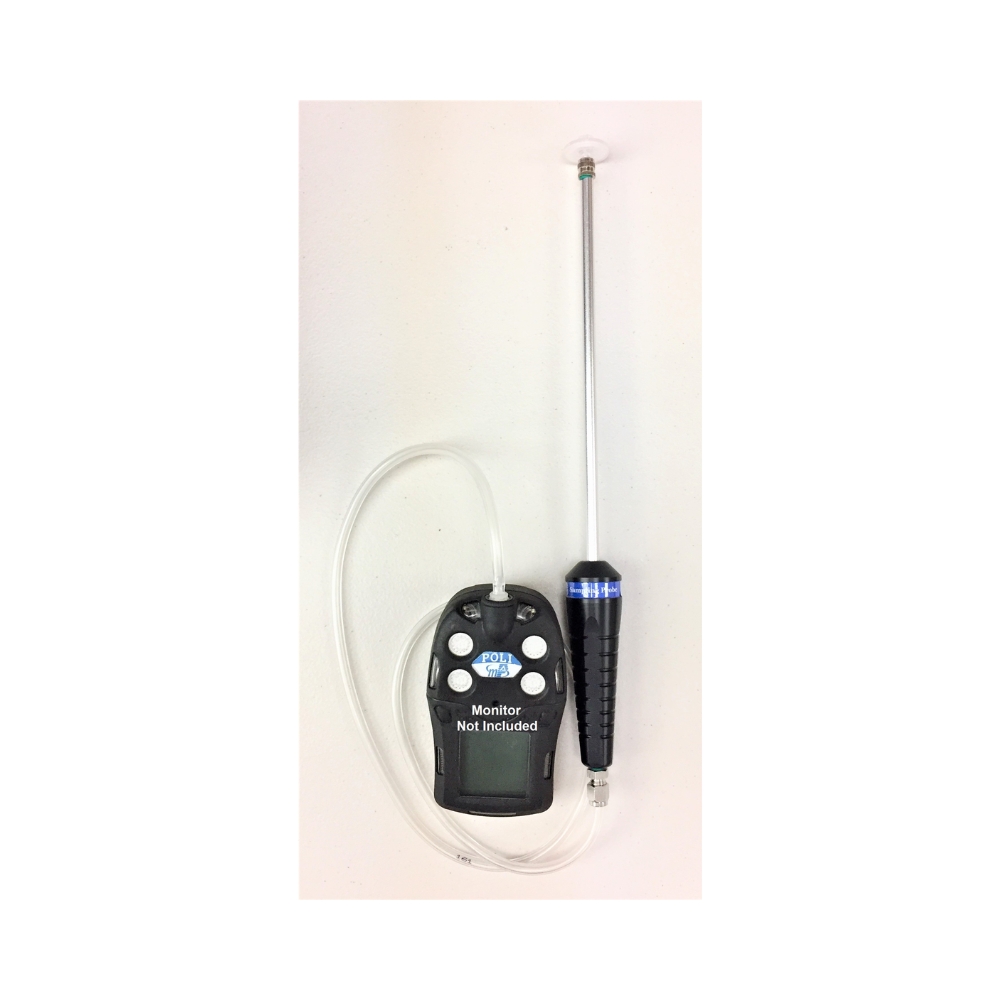

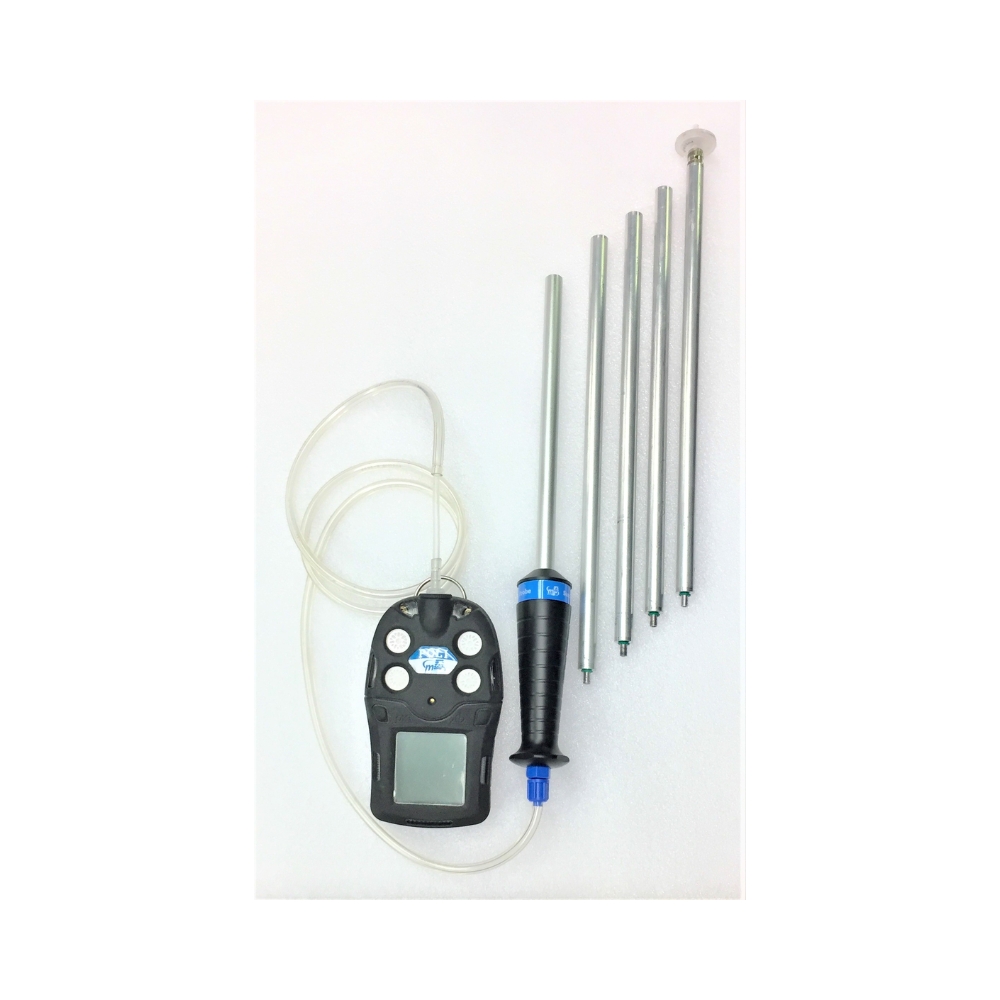

- MP400P built in pump supports confined space pre entry sampling through extension tubing
+ more in the Description tab below
One Platform, Two Configurations
The POLI MP400 and MP400P share the same platform but suit different jobs.
The MP400 is a diffusion detector with no moving parts and a rugged double shot housing. It runs for 16 hours and is built for personal protection at hazardous locations.
The MP400P adds a built in pump and a full choice of sensors. It runs for 12 hours with the pump on, and it’s the one to choose for confined space entry, where the atmosphere needs testing before anyone goes in. The pump can be switched to low or high flow, or turned off to save battery and sample by diffusion.
Over 30 Smart Sensors
The POLI takes more than 30 interchangeable, field replaceable smart sensors. They include electrochemical sensors for toxic gases and oxygen, pellistor and NDIR sensors for combustibles and CO2, and a PID for VOCs.
Combination sensors such as CO/H2S, SO2/H2S and CH4/CO2 fit two measurements into one slot. That gives up to six gas measurements across the four sensor slots.
Smart sensors carry their own calibration and ID data. They can be swapped quickly in the field, which is useful in hazmat and emergency response.
Designed for High Hazard Environments
A 360 degree LED alarm bar makes alarms visible from all directions. The alarm also sounds at 95 dB, vibrates and shows on screen.
The Man Down alarm triggers a pre alarm if the user stops moving, then a full alarm if it isn’t cancelled. A manual panic alarm lets the user raise an alarm at any time.
Wireless Team Monitoring
For live team monitoring, the POLI is also available as wireless models: the MP400H head monitor and the MP400S. One MP400H connects with up to seven MP400S units, up to 0.8 km away, forming an mSquad. Up to eight mSquads can be linked into an mPlatoon of up to 64 monitors.
On these models, Man Down, panic, gas and battery alarms are sent to supervisors in real time. Wireless isn’t available on the standard MP400 or MP400P.
Simple to Operate, Easy to Maintain

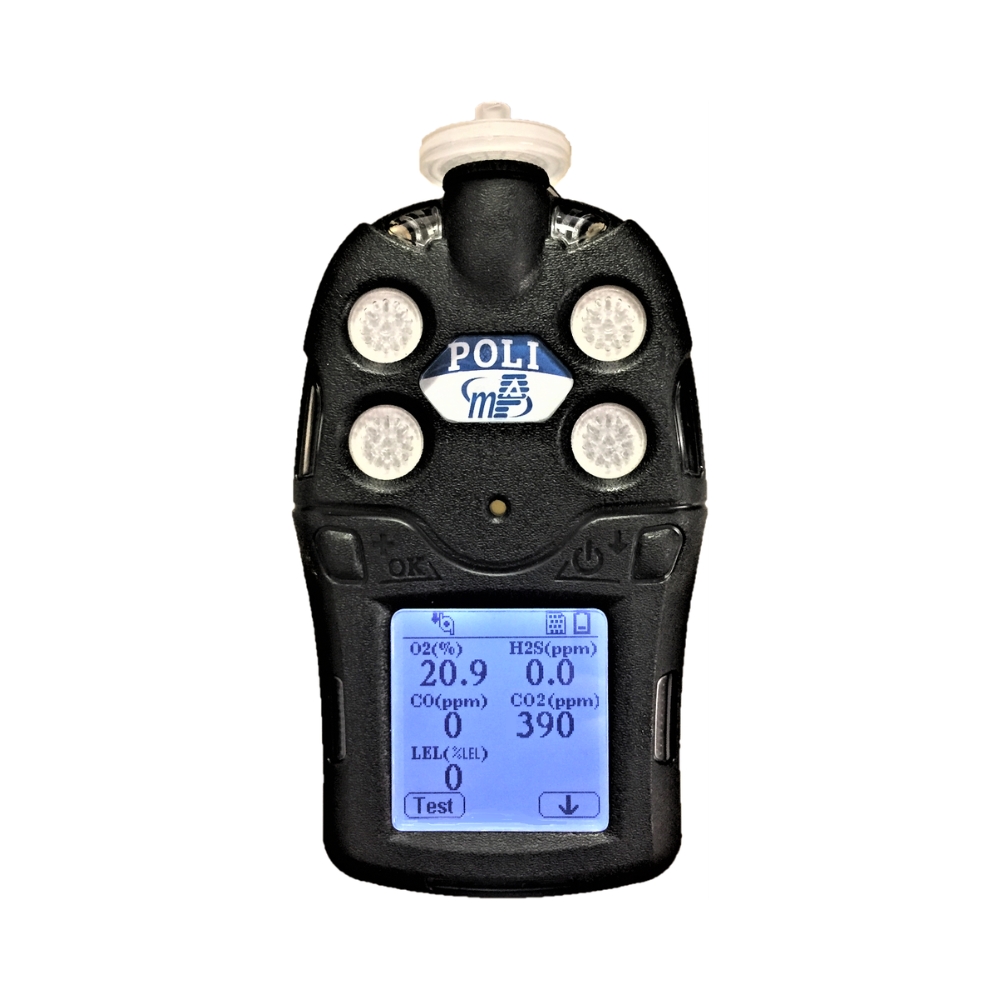

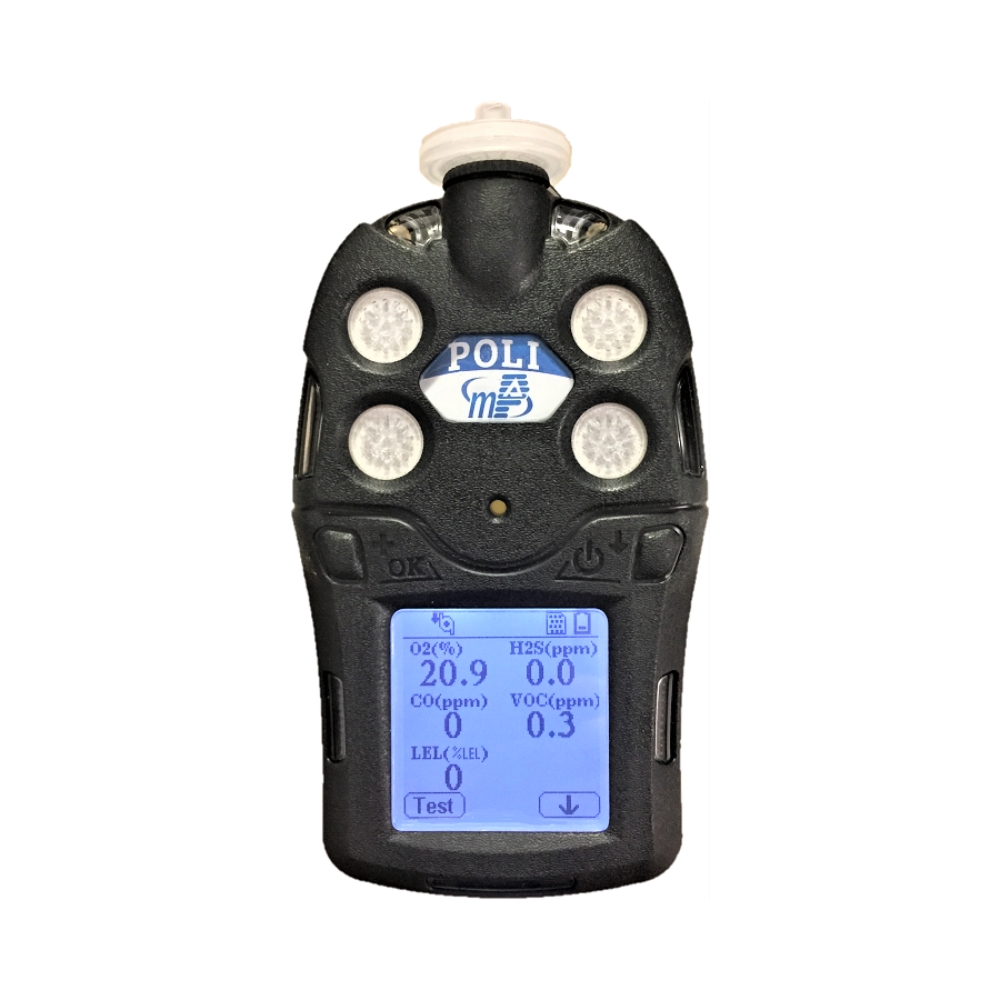

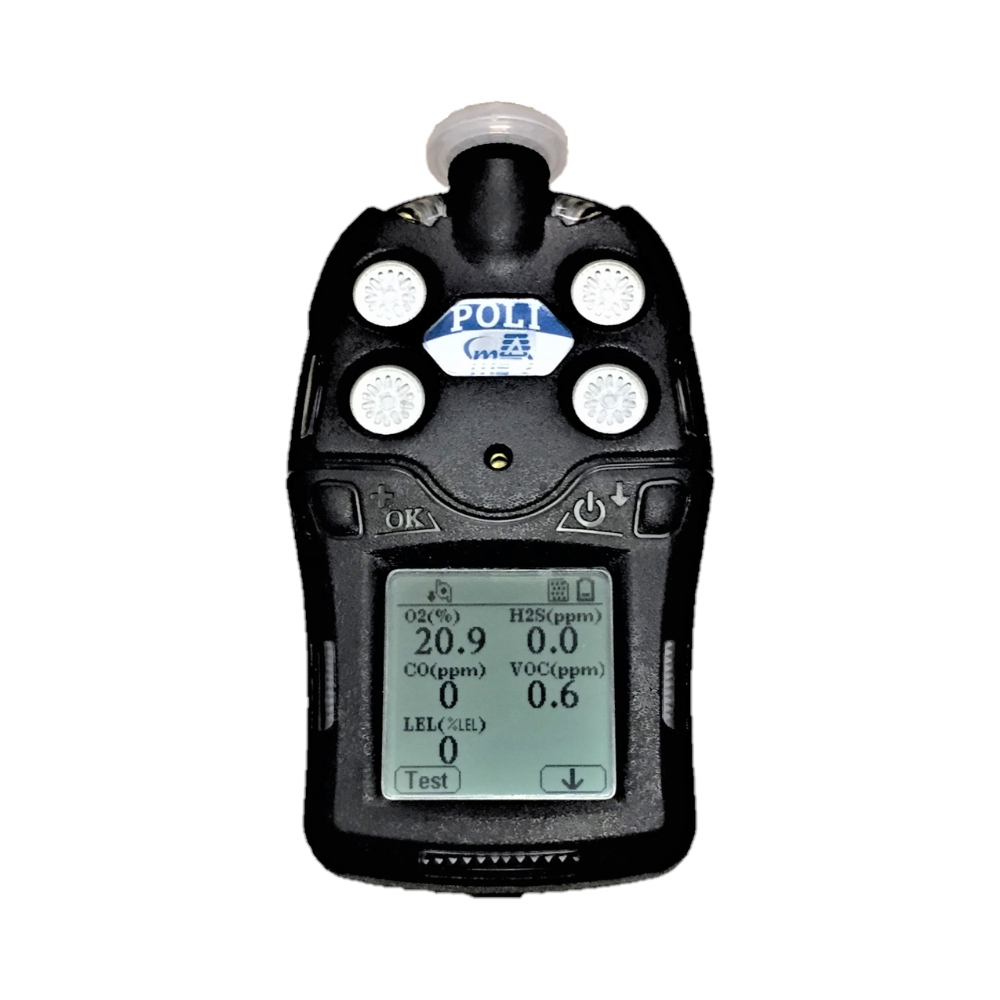

Two button operation keeps the POLI easy to learn. The 128 x 128 graphical LCD flips automatically to suit how the instrument is held, and shows live readings, STEL, TWA, peak and minimum values and a visual compliance indicator.
The POLI logs data continuously, storing six months of readings for four sensors at one minute intervals. Charging, data download, setup and firmware upgrades run through the USB Micro cable and mPower Suite software.

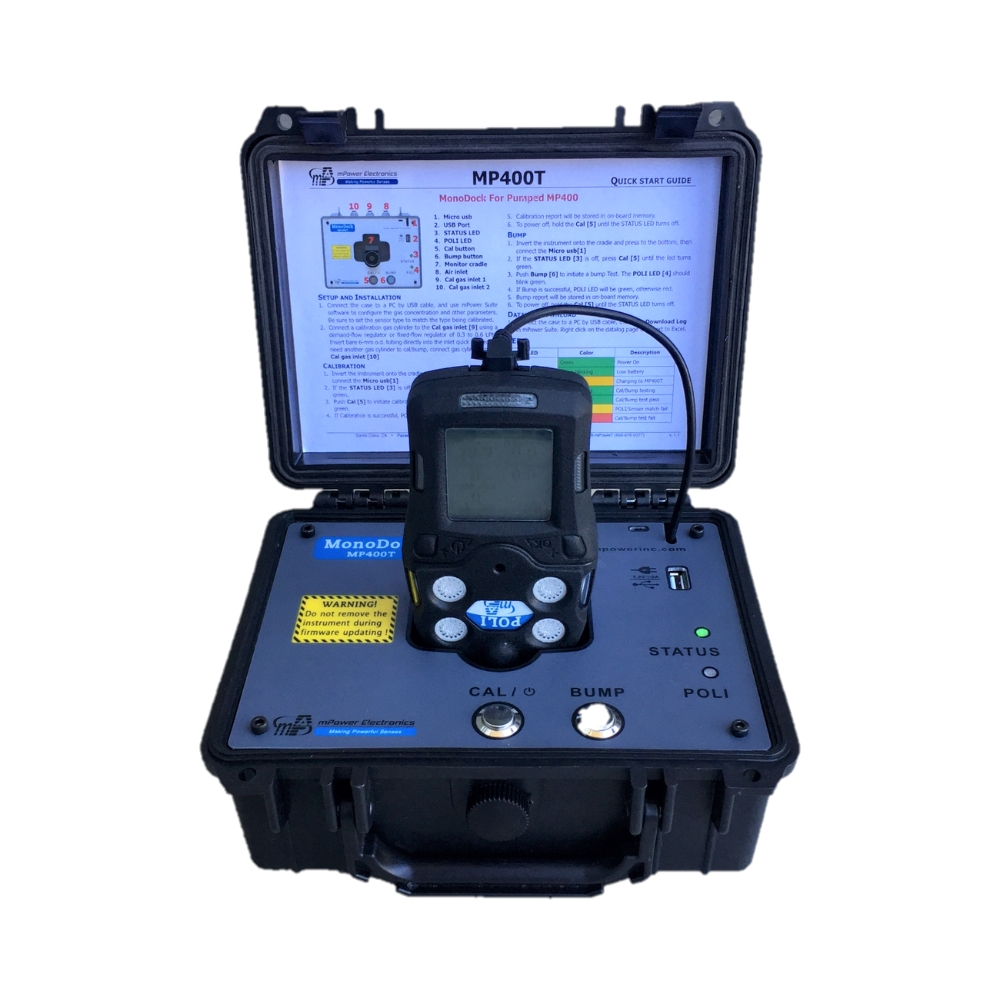

The optional POLI MonoDock automates bump testing and calibration. A mobile app lets workers practise with a POLI simulation on a smartphone or tablet.
Benefits
- Up to 6 gases monitored simultaneously using combination sensors across 4 sensor slots
- Over 30 interchangeable plug-and-play smart sensors carry calibration data for fast field exchange
- 360-degree LED alarm bar ensures alarm visibility from all angles
- Man Down alarm with pre alarm, plus a manual panic alarm
- MP400P built in pump supports confined space pre entry sampling through extension tubing
- Flip screen display adjusts to instrument orientation for easy reading in any position
- 6 months of continuous datalogging at 1-minute intervals
- Pump off switch and low power sensor options extend battery life
- Mobile training app available for POLI simulation on smartphone or tablet
- 2-year warranty on instrument and key sensors
Dimensions
140 x 84 x 42 mm
Weight
435 g
Display
128 x 128 graphical LCD, 45 x 44 mm, LED backlight, automatic flip screen
Keypad
2 operation keys
Sensors
Over 30 interchangeable field-replaceable smart sensors including PID for VOCs, EC for toxic and O2, pellistor for LEL and NDIR for LEL, Vol% and CO2
Sensor slots
4 slots, up to 6 gas measurements using combination sensors
Sampling
Diffusion (MP400) or built in pump (MP400P). Pump has low and high flow settings and can be switched off
Battery
Rechargeable Li-ion. 16 hours diffusion, 12 hours with pump
Response time
15 seconds for LEL, CO, H2S and O2. Others vary
Alarms
Audible 95 dB at 30 cm, visual (360 degree LED alarm bar), vibration, on screen indication. Man Down alarm with pre alarm. Manual panic alarm
Datalogging
6 months continuous for 4 sensors at 1-minute intervals
Communication
Charging, data download, setup and firmware upgrades via PC comms, cradle, travel charger or docking station, using mPower Suite. Wireless available on MP400S and MP400H models only
Calibration
Manual, or automated using the POLI MonoDock
Operating temperature
-20°C to 50°C
Humidity
0 to 95% RH non-condensing
IP rating
IP-65 (MP400P pumped). IP-67 (MP400 diffusion)
Certifications
Class I, Division 1, Groups A, B, C and D T4. IECEx Ex ia IIC T4 Ga. ATEX II 1G Ex ia IIC T4 Ga. EMC Directive 2014/30/EU
Warranty
2 years on instrument. 2 years on LEL, LEL/Vol, O2, CO, CO2, H2S, SO2, HCN, NO, NO2 and PH3 sensors. 1 year on all other sensors
Ethylene Oxide (ETO)
C2H4O
Methanethiol
CH3-SH
Methane
CH4
Chlorine
Cl2
Chlorine Dioxide
ClO2
Carbon Monoxide
CO
Carbon Dioxide
CO2
Hydrogen
H2
Hydrogen Sulphide
H2S
Hydrogen Chloride
HCl
Hydrogen Cyanide
HCN
Hydrogen Fluoride
HF
Combustible Gas
LEL
Ammonia
NH3
Nitric Oxide
NO
Nitrogen Dioxide
NO2
Oxygen
O2
Phosphine
PH3
Sulphur Dioxide
SO2
Tetrahydrothiophene
THT
Volatile Organic Compounds
VOC
- Aviation & Transportation
- Chemical Manufacturing
- Confined Space & Compliance
- Energy (Oil & Gas)
- Food & Beverage
- Landfill & Remediation
- Marine & Maritime
- Medical & Healthcare
- Mining & Minerals
- Power Generation & BESS
- Technology & Semiconductor
- Water & Wastewater
The MP400 is a diffusion detector with no pump, built for personal protection at hazardous locations. It's typically configured as a standard four gas detector. The MP400P adds a built in pump for confined space pre entry sampling, and supports the full choice of over 30 sensors, including PID for VOCs.
Combination sensors such as CO/H2S, SO2/H2S and CH4/CO2 fit two gas detections into a single sensor slot, allowing up to 6 gases to be monitored simultaneously across the instrument's 4 sensor slots.
Smart sensors carry their own calibration and ID data within the sensor module. This allows sensors to be exchanged in the field quickly without needing to recalibrate from scratch, which is particularly valuable in HazMat and emergency response situations where fast sensor swaps may be needed.
The mSquad and mPlatoon systems use the wireless POLI models, the MP400H head monitor and the MP400S. One MP400H connects with up to seven MP400S units, up to 0.8 km away. Up to eight mSquads can link into an mPlatoon. A safety officer sees live gas readings and alarm status, including Man Down alerts, across the team. Wireless isn't available on the standard MP400 or MP400P.
The POLI MonoDock automates bump testing and calibration for a single instrument. Charging, data download, setup and firmware upgrades can also be done through a PC, cradle or travel charger using mPower Suite software.
