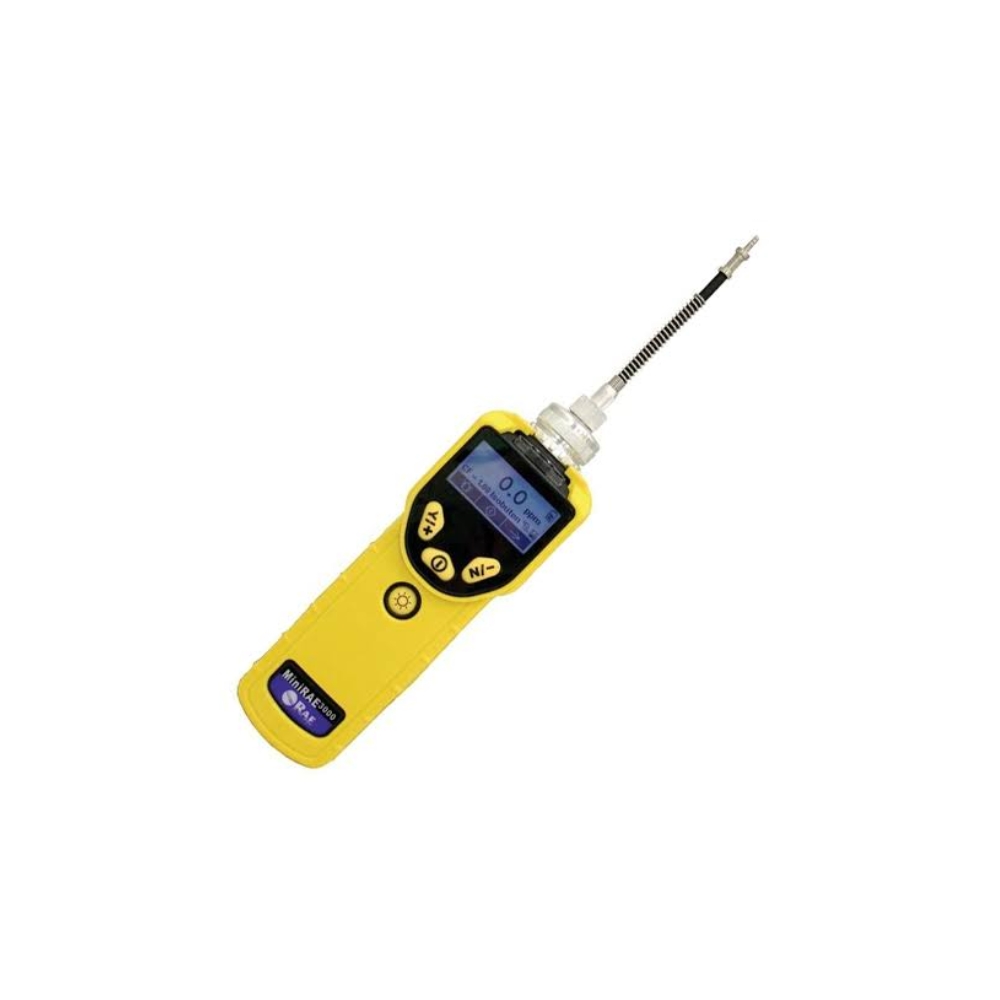

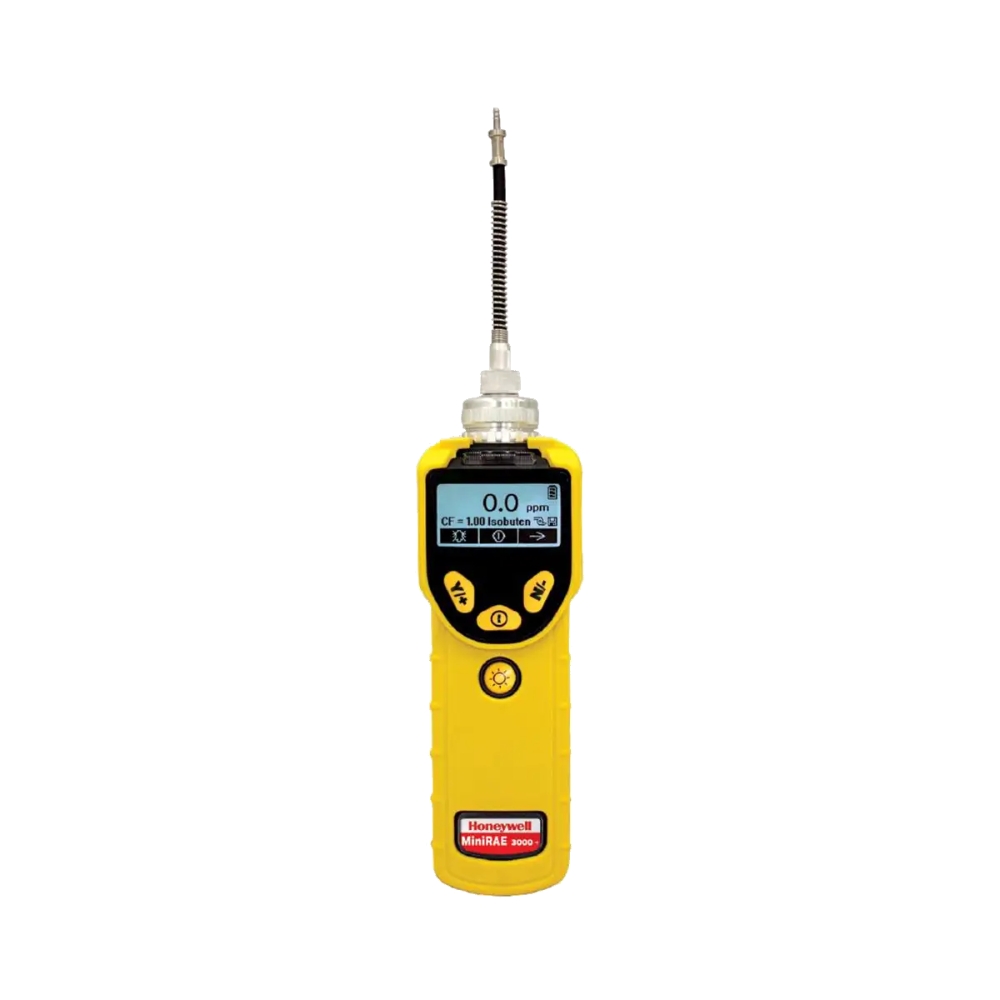

MiniRAE 3000
Wireless Portable VOC Monitor
The Honeywell MiniRAE 3000+ is a comprehensive handheld VOC monitor that uses third generation patented PID technology to measure VOCs from 0 to 15,000 ppm, with a 3 second response. It combines Reflex PID Technology, humidity compensation and a choice of 9.8 eV, 10.6 eV or 11.7 eV lamps. With a built in wireless modem, BLE app support, six months of datalogging and an IP67 design, it suits oil and gas, hazmat, industrial safety, civil defence and environmental work.
KEY BENEFITS
- 0 to 15,000 ppm detection range with a 3 second response time
- Third-generation patented Reflex PID Technology for consistent lamp performance and extended lamp life
- Choice of 10.6 eV standard lamp, or optional 9.8 eV or 11.7 eV lamps for different compounds
- Built-in correction factors for more than 200 compounds for compound-specific VOC readings
- Integral humidity and temperature sensors with automatic humidity compensation for accurate field readings
+ more in the Description tab below
Comprehensive VOC Monitoring in the ppm Range
The MiniRAE 3000+ is a comprehensive handheld VOC monitor. It uses third generation patented PID technology to measure VOCs across a full range of 0 to 15,000 ppm, with a 3 second response.
It sits above the MiniRAE Lite+ in the RAE Systems range. Where the Lite+ covers 0 to 5,000 ppm, the MiniRAE 3000+ triples the range, adds a built in wireless modem and offers a choice of three PID lamps.
Accurate in Real Field Conditions
Reflex PID Technology and built in humidity and temperature sensors keep readings accurate as conditions change. Humidity is one of the most common causes of inaccurate PID readings, especially outdoors, in confined spaces and in coastal environments.
Correction factors let the MiniRAE 3000+ give readings for specific compounds, not just total VOCs.
Three Lamp Options
The 10.6 eV lamp is standard and covers the widest range of common VOCs. A 9.8 eV lamp is available for applications focused on compounds with lower ionisation energies, such as aromatics. An 11.7 eV lamp detects compounds with higher ionisation energies that the 10.6 eV lamp can’t.
Wireless and Data
The MiniRAE 3000+ has a built in wireless modem for real time data connectivity. It can connect to ProRAE Guardian or an EchoView Host over the RAE Systems mesh network, with a typical range of up to 200 metres. A BLE module and dedicated app add enhanced datalogging over short range.
It logs six months of data at one minute intervals. Data and setup can also be transferred to a PC through the charging cradle. Calibration memory stores settings for up to 8 calibration gases.
Built for Demanding Field Conditions
The rugged housing is IP67 rated when switched off and IP65 when running, with a durable bright yellow rubber boot. A built in flashlight helps in dark spaces, and the lamp and sensor can be reached quickly for maintenance.
The field replaceable Li-ion battery runs for 16 hours, or 12 hours on the alkaline adapter. The internal pump draws 500 cc/min and samples from up to 30 metres, with automatic shut off at low flow.
Benefits
- 0 to 15,000 ppm detection range with a 3 second response time
- Third-generation patented Reflex PID Technology for consistent lamp performance and extended lamp life
- Choice of 10.6 eV standard lamp, or optional 9.8 eV or 11.7 eV lamps for different compounds
- Built-in correction factors for more than 200 compounds for compound-specific VOC readings
- Integral humidity and temperature sensors with automatic humidity compensation for accurate field readings
- Optional Mesh Radio for real-time wireless monitoring via ProRAE Guardian up to 200 m
- Optional BLE module and dedicated mobile app for survey and remediation applications
- Multi language support with 10 languages encoded
- Built-in flashlight for dark or confined environments
- CSA and ATEX certified for hazardous locations
Dimensions
25.5 x 7.6 x 6.4 cm
Weight
738 g
Sensor
Third-generation PID with Reflex PID Technology. Standard 10.6 eV. Optional 9.8 eV and 11.7 eV lamps
Detection range
0 to 15,000 ppm (0 to 999.9 ppm at 0.1 resolution, 1,000 to 15,000 ppm at 1 ppm resolution)
Response time
3 seconds
Correction factors
Over 200 compounds built in
Humidity compensation
Integral humidity and temperature sensors with automatic compensation
Sampling pump
Internal, 500 cc/min. Samples up to 30 m horizontally and vertically. Auto shutoff at low flow
Battery
Field-replaceable Li-ion, 16 hours. Alkaline adapter: 12 hours
Display
4-line graphic display, 28 x 43 mm with LED backlight
Display readout
VOCs in ppm or mg/m3, STEL and TWA, High values, battery and shutdown voltage, date, time, temperature
Keypad
1 operation key, 2 programming keys, 1 flashlight on/off
Alarms
95 dB buzzer at 30 cm and flashing red LED. High: 3 beeps and flashes per second. Low: 2 beeps and flashes per second. STEL and TWA: 1 beep and flash per second. Latching with manual override or automatic reset. Low battery and pump stall alarms
Datalogging
6 months at 1-minute intervals. Calibration memory for 8 calibration gases, alarm limits, span values and calibration dates
Wireless
Optional Mesh Radio for ProRAE Guardian. Optional BLE module
Wireless range
BLE: 5 m. EchoView Host: 200 m. ProRAE Guardian and RAELink3 Mesh: 100 m. RAEMesh Reader: 200 m
Operating temperature
-20°C to 50°C
Humidity
0 to 95% RH non-condensing
IP rating
IP67 unit off and without flexible probe. IP65 unit running
Certifications
US and Canada: CSA, Class I, Division 1, Groups A, B, C and D. Europe: ATEX II 2G EEx ia IIC T4
Warranty
3 years for 10.6 eV lamp. 1 year for pump, battery, sensor and instrument. Optional 4 year repair and replacement program
Benzene
C6H6
Volatile Organic Compounds
VOC
- Aviation & Transportation
- Chemical Manufacturing
- Confined Space & Compliance
- Energy (Oil & Gas)
- Food & Beverage
- Landfill & Remediation
- Marine & Maritime
- Medical & Healthcare
- Mining & Minerals
- Power Generation & BESS
- Technology & Semiconductor
- Water & Wastewater
The MiniRAE 3000+ measures 0 to 15,000 ppm, offers three lamp options and has a built in wireless modem for ProRAE Guardian and EchoView Host. The MiniRAE Lite+ measures 0 to 5,000 ppm with a 10.6 eV lamp and offers an optional BLE module. Both use Reflex PID Technology with humidity compensation.
Reflex PID Technology is part of Honeywell's third generation patented PID design. Combined with built in humidity and temperature compensation, it helps keep VOC readings accurate in changing field conditions.
The 10.6 eV lamp is the standard choice for general VOC detection. The 9.8 eV lamp suits applications focused on compounds with lower ionisation energies, such as aromatics. The 11.7 eV lamp detects compounds with higher ionisation energies that the 10.6 eV lamp can't. Talk to our Technical Consultants about the right lamp for your target compounds.
Yes. The MiniRAE 3000+ is CSA certified for Class I, Division 1, Groups A to D, and ATEX certified to II 2G EEx ia IIC T4. Talk to our Technical Consultants to confirm it meets the requirements for your site.
Optional Mesh Radio connects to ProRAE Guardian with a range of up to 200 m. Optional BLE module enables wireless connection to the dedicated mobile app for survey and remediation applications.
16 hours on the field-replaceable Li-ion battery. 12 hours with the alkaline battery adapter.
