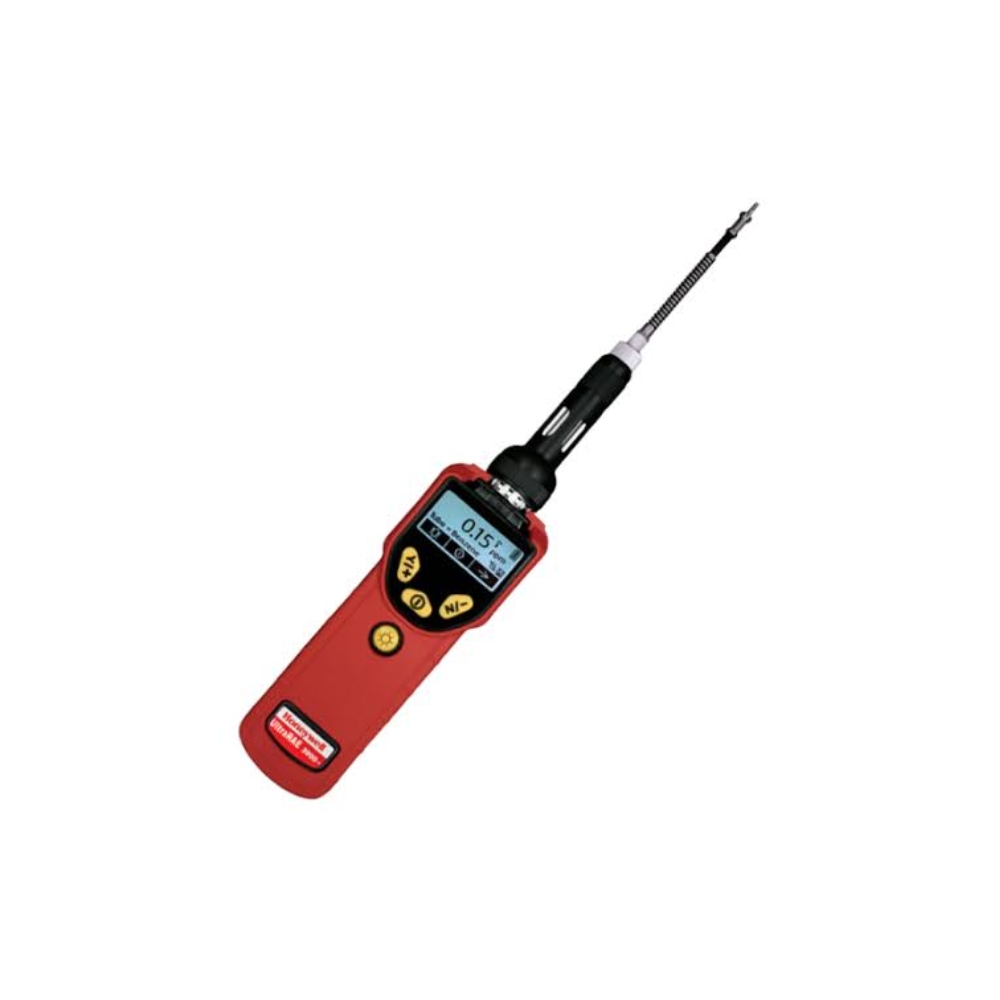

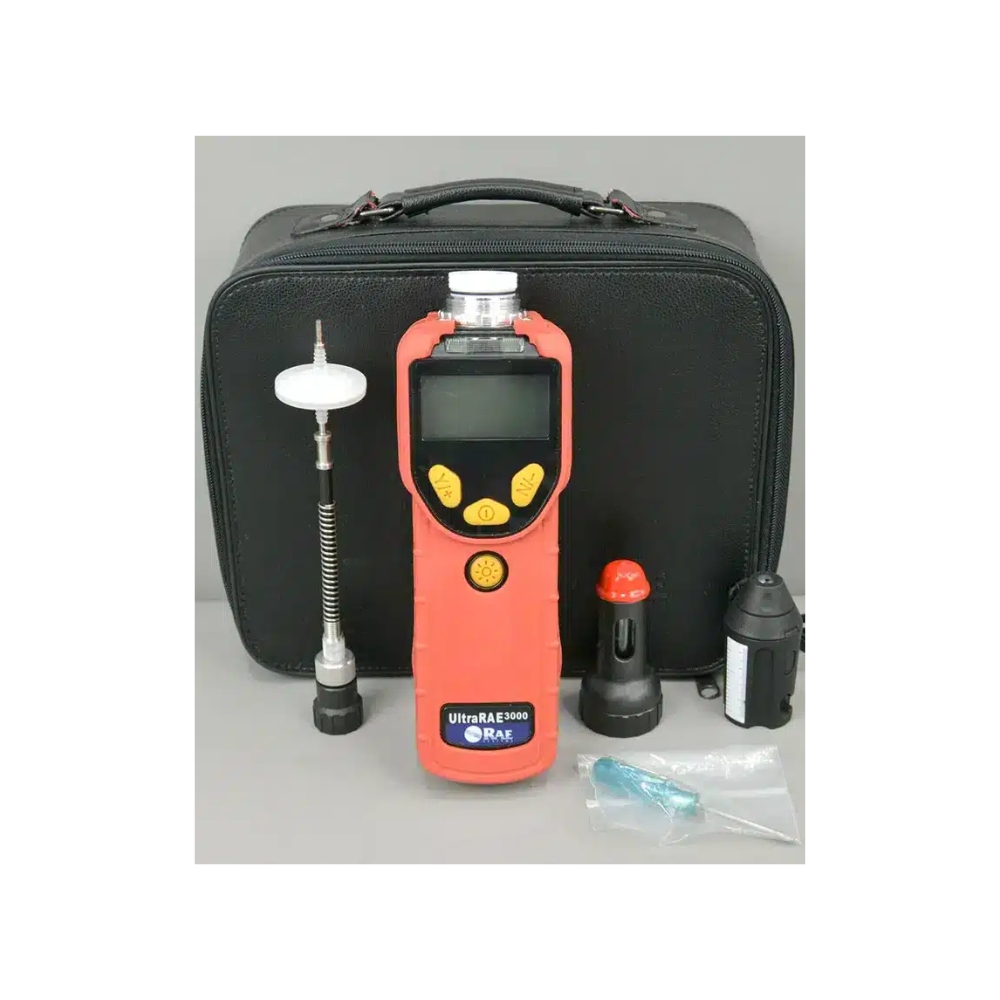

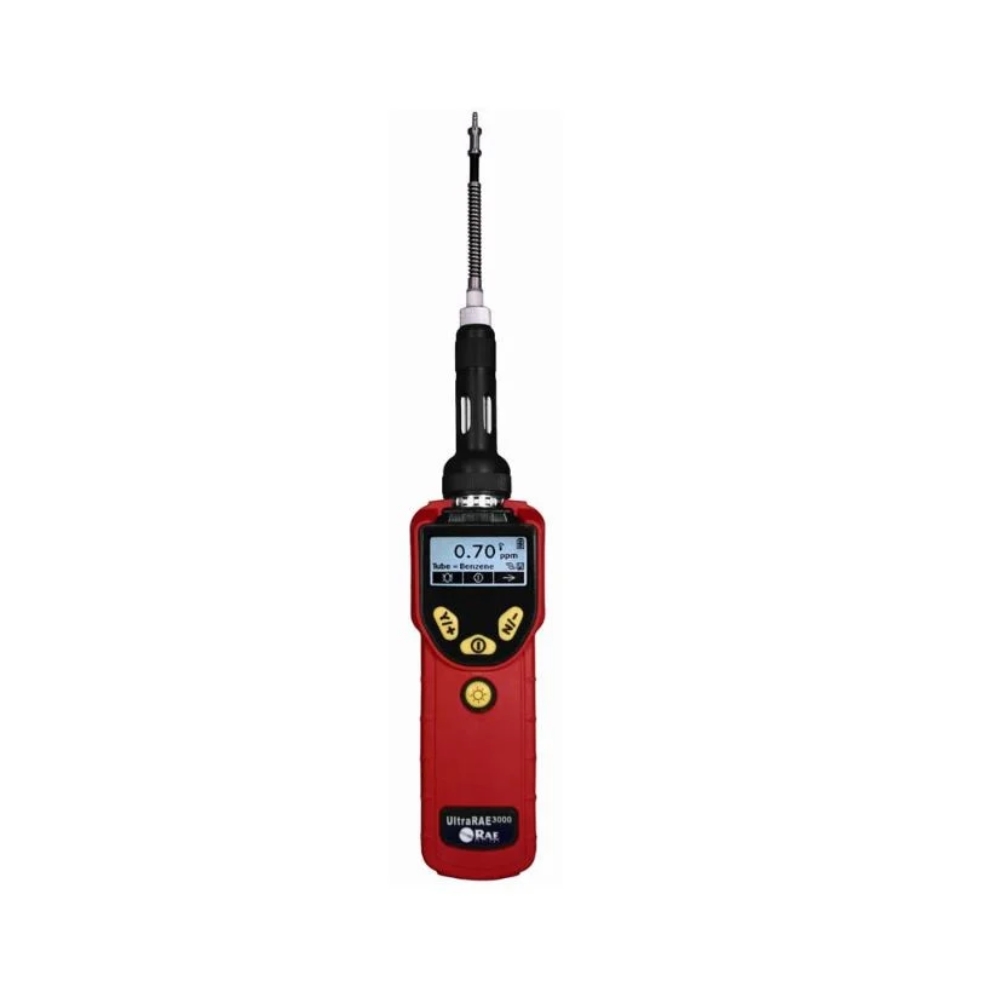

UltraRAE 3000
Portable Benzene and VOC Monitor
The UltraRAE 3000+ by Honeywell is one of the most advanced compound specific monitors on the market. It combines a 9.8 eV UV lamp with low cost RAE-Sep tubes for selective benzene and butadiene measurement from 10 ppb to 200 ppm, and measures total VOCs from 0.01 to 10,000 ppm. A 60 second snapshot suits fast pre entry screening, and a 15 minute STEL mode supports exposure assessment, making it ideal for refinery and plant maintenance, hazmat and marine spill response.
KEY BENEFITS
- Benzene sensitivity down to 10 ppb, for a lower detection range as exposure limits tighten
- Dual benzene detection modes: 60-second snapshot for fast screening or 15-minute STEL for compliance assessment
- Patented Reflex PID Technology improves lamp performance and extends lamp life
- Built-in humidity sensor with automatic temperature-controlled sampling time calculation for accurate readings across varying conditions
- See-through sampling probe design provides instant visual tube breakthrough confirmation
+ more in the Description tab below
One of the Most Advanced Compound Specific Monitors on the Market
The UltraRAE 3000+ is built for accurate benzene measurement in petroleum hydrocarbon environments. In a standard VOC reading, benzene is hidden among much higher levels of other hydrocarbons, as found in refineries, tank farms and downstream processing.
The UltraRAE 3000+ solves this by combining a 9.8 eV UV lamp with a RAE-Sep benzene tube. The result is a highly specific reading of benzene, rather than a total VOC figure, with a lower risk of false alarms.
It measures benzene and butadiene from 10 ppb to 200 ppm. Honeywell says this high sensitivity gives a lower detection range, ready for potentially lower benzene exposure limits in future.
Two Benzene Detection Modes
The 60 second snapshot mode gives a quick, discrete reading at a specific sample point. It suits confined space pre entry screening and permit to work sampling, where speed matters.
The 15 minute STEL mode measures benzene continuously over 15 minutes, for short term exposure assessment. Both modes use the same 9.8 eV lamp and RAE-Sep tube.
Total VOC Mode
In VOC mode, the UltraRAE 3000+ measures total VOCs from 0.01 to 10,000 ppm with a 3 second response, and has correction factors for more than 200 compounds built in. The standard 9.8 eV lamp works in both benzene and TVOC modes. Optional 10.6 eV and 11.7 eV lamps extend it to a wider range of VOCs.
Reflex PID Technology and Field Design
Honeywell’s Reflex PID Technology supports reliable lamp performance. A built in humidity sensor and automatic temperature controlled sampling time calculation keep readings accurate as conditions change.
A see through sampling probe shows tube breakthrough at a glance. A built in flashlight helps in dark spaces, and the lamp, sensor and battery are easy to reach for maintenance.
Wireless and Connected
The UltraRAE 3000+ can connect to ProRAE Guardian or an EchoView Host through an optional wireless module, with a typical range of up to 200 m. Gas readings and alarm status can be watched from a central point during shutdowns, maintenance programs and emergency response. Bluetooth is built in for short range data and setup.
Benefits
- Benzene sensitivity down to 10 ppb, for a lower detection range as exposure limits tighten
- Dual benzene detection modes: 60-second snapshot for fast screening or 15-minute STEL for compliance assessment
- Patented Reflex PID Technology improves lamp performance and extends lamp life
- Built-in humidity sensor with automatic temperature-controlled sampling time calculation for accurate readings across varying conditions
- See-through sampling probe design provides instant visual tube breakthrough confirmation
- 9.8 eV lamp for benzene and TVOC, with optional 10.6 eV and 11.7 eV lamps for broader VOC work
- Wireless connectivity to ProRAE Guardian with range up to 200 m for real-time remote monitoring
- Correction factors for more than 200 compounds built in
- Built-in flashlight for dark or confined environments
- 6 months of continuous datalogging at 1-minute intervals
Dimensions
25.5 x 7.6 x 6.4 cm
Weight
738 g
Sensor
Photoionisation (PID). Standard 9.8 eV lamp for benzene and TVOC. Optional 10.6 eV and 11.7 eV lamps
Detection range (benzene mode)
Benzene and butadiene: 10 ppb to 200 ppm (0.010 ppm resolution)
Detection range (VOC mode)
0.01 to 10,000 ppm
Response time
3 seconds (VOC mode). 60 seconds (compound-specific mode)
Benzene detection modes
60-second snapshot or 15-minute STEL measurement
PID technology
Patented Reflex PID Technology
Humidity compensation
Built-in humidity sensor with automatic temperature-controlled sampling time calculation
Correction factors
Over 200 compounds built in
Sampling pump
Internal, 400 cc/min. Samples from up to 30 m (100 ft) horizontally and vertically
Low flow alarm
Auto pump shutoff at low-flow condition
Battery
Field-replaceable Li-ion, 16 hours runtime. Alkaline battery adapter also available
Display
4-line display, 28 x 43 mm
Keypad
1 operation key, 2 programming keys, 1 flashlight on/off button
Alarms
95 dB audible at 30 cm, flashing red LED. High, Low alarm limits
Datalogging
6 months at 1-minute intervals. Calibration memory for 8 calibration gases
Wireless
Optional RAELink3 modem. ProRAE Guardian and EchoView Host compatible
Wireless range
EchoView Host: 200 m. ProRAE Guardian and RAELink3 Mesh: 100 m. ProRAE Guardian and RAEMesh Reader: 200 m
Bluetooth
Built in. Range up to 5 m
Operating temperature
-20°C to 50°C
Humidity
0 to 95% RH non-condensing
IP rating
IP65
Certifications
CSA Class I, Division 1, Groups ABCD T4. ATEX II 2G EEx ia IIC T4. IECEx CSA 10.0005 Ex ia IIC/IIB GbT4
Warranty
3 years for 10.6 eV lamp. 6 months for 9.8 eV lamp. 1 year for pump, battery, sensor and instrument
Benzene
C6H6
Volatile Organic Compounds
VOC
- Aviation & Transportation
- Chemical Manufacturing
- Confined Space & Compliance
- Energy (Oil & Gas)
- Landfill & Remediation
- Marine & Maritime
- Medical & Healthcare
- Mining & Minerals
- Power Generation & BESS
- Technology & Semiconductor
- Water & Wastewater
A standard broad range PID responds to all ionisable compounds in the sample, including the high levels of other hydrocarbons found in petroleum environments. The UltraRAE 3000+ combines a 9.8 eV lamp with a RAE-Sep benzene tube to give a highly specific benzene reading, with a lower risk of false alarms. That makes it well suited to benzene monitoring in refinery and petrochemical environments.
The 60-second snapshot mode provides a rapid discrete reading at a specific sample point, suited to pre-entry screening and LDAR-style sampling programs. The 15-minute STEL measurement mode monitors benzene continuously over 15 minutes for short-term exposure limit compliance assessment. Both modes use the same 9.8 eV lamp and RAE-Sep tube configuration.
Yes. In VOC mode, the UltraRAE 3000+ measures total VOCs from 0.01 to 10,000 ppm, and the standard 9.8 eV lamp works in both benzene and TVOC modes. For a wider range of VOCs, the optional 10.6 eV or 11.7 eV lamp can be fitted.
Reflex PID Technology is Honeywell's patented system for improving PID lamp performance and consistency. Combined with the built-in humidity sensor and automatic temperature-controlled sampling time calculation, it maintains accurate readings across varying field conditions.
The UltraRAE 3000 supports optional RAELink3 wireless modem for connection to ProRAE Guardian and EchoView Host with a range of up to 200 m. Built-in Bluetooth is also available for shorter-range connectivity and instrument configuration.
The 10.6 eV lamp carries a 3-year warranty. The 9.8 eV lamp carries a 6-month warranty. The pump, battery, sensor and instrument carry a 1-year warranty.
