BW Clip
Single Gas Detector

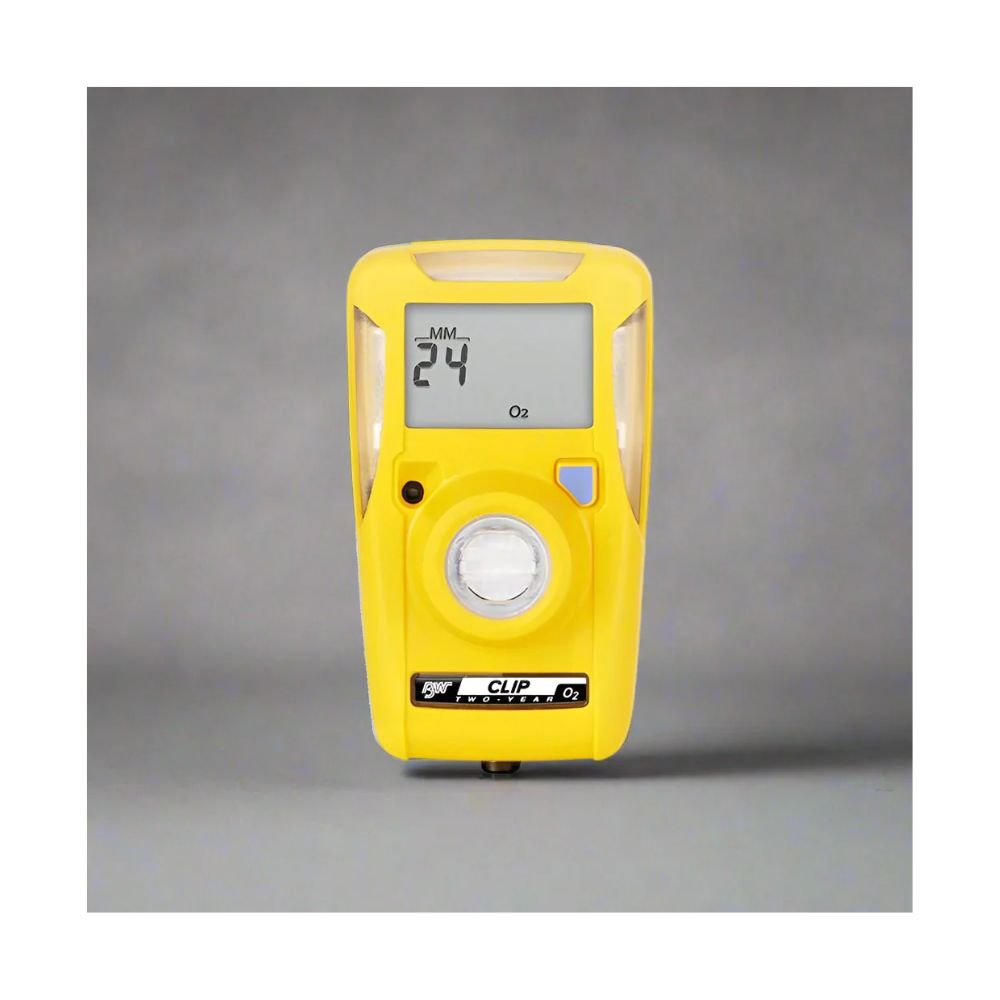

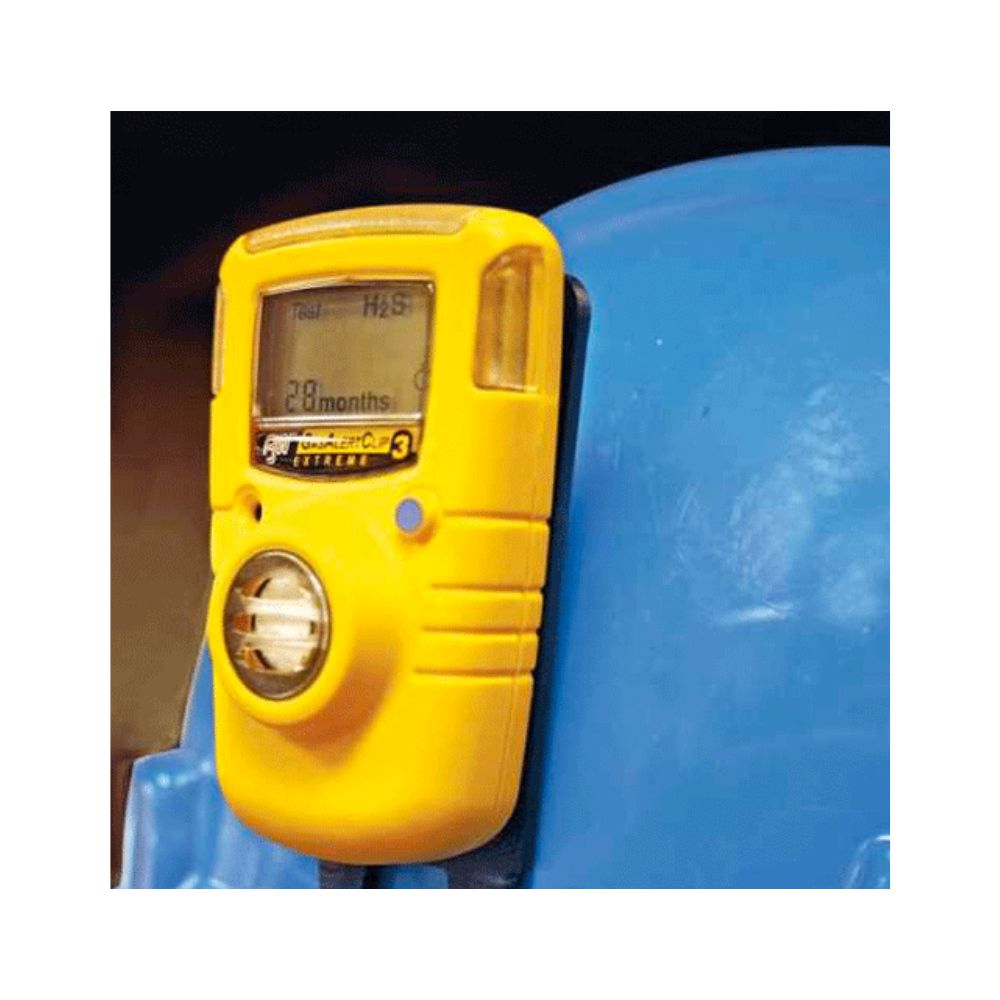

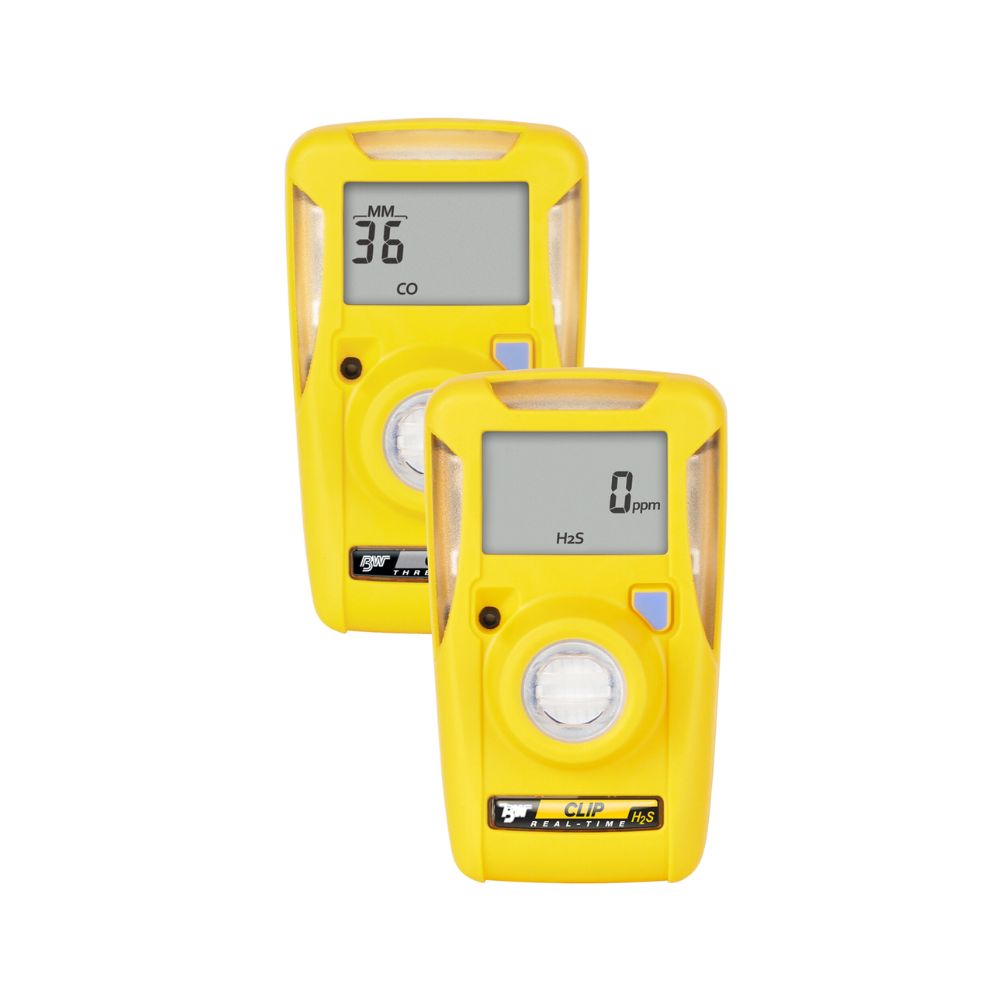

The BW Clip by Honeywell is a maintenance-free single gas detector that operates up to three years without calibration, sensor replacement, battery replacement or charging. Available for H2S, CO, O2 or SO2, the BW Clip uses Honeywell’s SureCell sensor technology to deliver reliable performance under harsh conditions with zero downtime. Built for simplicity, compliance and cost-effectiveness, it is one of the most trusted disposable single gas detectors used across Australian industry.
KEY BENEFITS
- Maintenance free for the life of the instrument
- Compact and lightweight design
- Hibernation mode extends service life once activated (H2S and CO models)
- Wide angle visual alarm flash
- SureCell dual reservoir sensor improves response time and longevity over traditional electrochemical sensors
+ more in the Description tab below
Maintenance-Free Protection That Just Works
The BW Clip is built around a simple idea: turn it on and let it run. No calibration, no sensor replacement, no battery charging and no scheduled servicing for the life of the instrument. Once activated, the BW Clip operates continuously for up to three years depending on the gas and model selected, giving workers reliable single gas protection without the ongoing maintenance burden associated with serviceable instruments.
Extend Service Life with Hibernation Mode

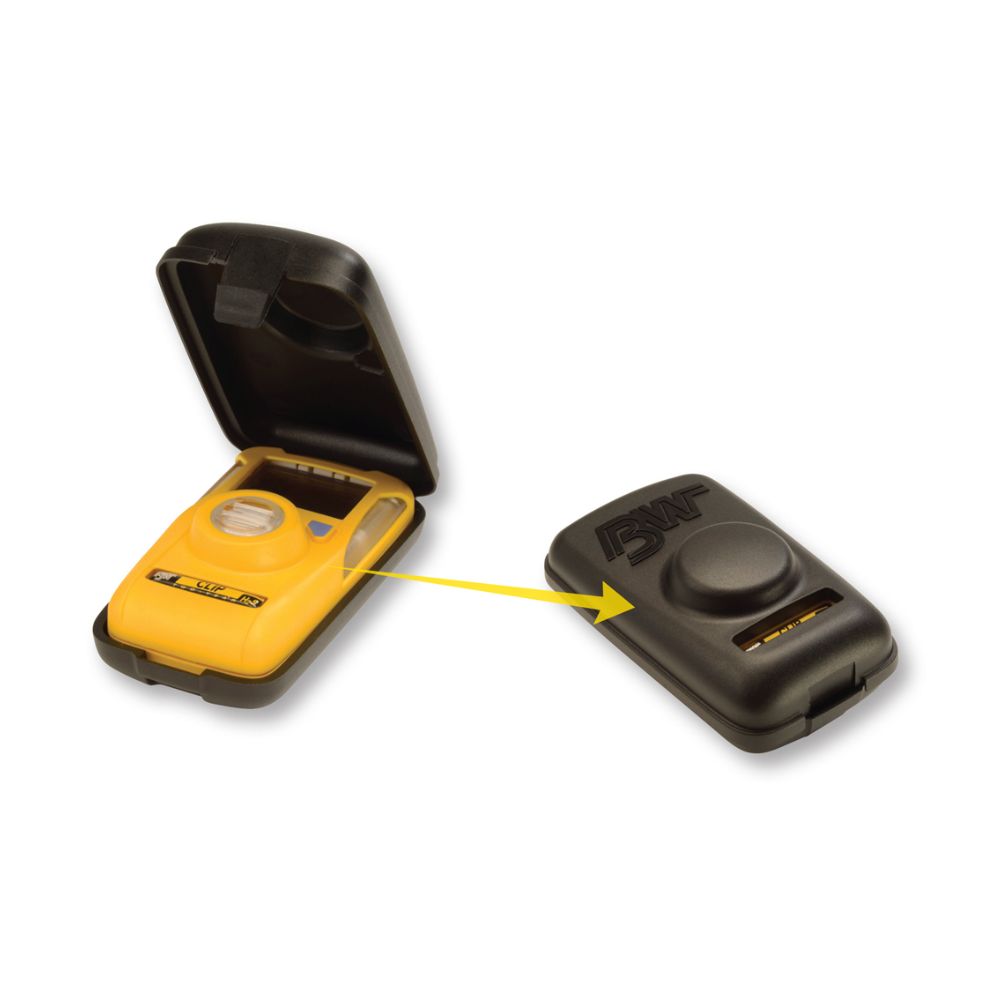

For the two-year H2S or CO models, the BW Clip includes a hibernation feature. If the device won’t be used for a week or more, it can be placed in a dedicated hibernation case, pausing the operating life countdown for up to 12 months. This is particularly useful for turnarounds, short-term projects or covering staff leave, effectively extending the instrument’s usable life beyond its standard activation period.
SureCell Sensor Technology
At the core of the BW Clip is SureCell, Honeywell’s unique dual reservoir sensor design. Compared to traditional electrochemical sensors, SureCell delivers dramatically improved performance, faster response time and greater longevity, while maintaining reliable readings under harsh environmental conditions. Reflex Technology adds an automated self-test function that routinely checks sensor condition, increasing safety, uptime and worker confidence in the instrument.
Built for Fleet Management and Compliance
The BW Clip is compatible with both the MicroDock II and IntelliDoX instrument management systems, supporting fast, accurate bump testing and record keeping. IntelliDoX in particular allows up to 50 detectors to be bump tested in under three minutes, along with the ability to adjust alarm set points, track compliance and manage an entire fleet of instruments efficiently. Configuration options include adjustable high and low alarm set points, a user-settable bump test reminder, optional display of gas readings during alarm events and an optional real-time clock display.
Benefits
- Maintenance free for the life of the instrument
- Compact and lightweight design
- Hibernation mode extends service life once activated (H2S and CO models)
- Wide angle visual alarm flash
- SureCell dual reservoir sensor improves response time and longevity over traditional electrochemical sensors
- Reflex Technology performs automated self-test to check sensor condition
- Compatible with MicroDock II and IntelliDoX instrument management systems
- Automatically logs the 35 most recent gas events
- Available in 2-year or 3-year versions depending on gas type
- IP66/67 rated for dust and water resistance
Size
4.1 x 5 x 8.7 cm
Weight
92 g
Operating temperature (H2S)
-40°C to +50°C
Operating temperature (CO)
-30°C to +50°C
Operating temperature (O2)
-20°C to +50°C
Operating temperature (SO2)
-30°C to +50°C
Humidity
5 to 95% RH, non-condensing
Alarms
Visual, vibrating, audible (95 dB), Low and High alarms. Automated internal diagnostic test every 24 hours once activated
Typical battery life
2 years (H2S, CO, O2 or SO2), 3 years (H2S or CO)
Event logging
IP66/67
Warranty
2 or 3 years from activation under normal operation, plus 1 year shelf life (6 months for O2). Up to 3 years total for 2-year H2S and CO detectors when used with the hibernation feature, limited to 24 months of detector operation
Certifications
cULus: Class I, Div. 1, Gr. A, B, C, D; Class I, Zone 0, Gr. IIC. ATEX: II 1G Ex ia IIC T4 Ga. IECEx: Ex ia IIC T4 Ga. CE; American Bureau of Shipping; CU TR Ex.
Carbon Monoxide
CO
Hydrogen Sulphide
H2S
Oxygen
O2
Sulphur Dioxide
SO2
- Chemical Manufacturing
- Aviation & Transportation
- Carpark & HVAC
- Confined Space & Compliance
- Energy (Oil & Gas)
- Food & Beverage
- Landfill & Remediation
- Marine & Maritime
- Mining & Minerals
- Power Generation & BESS
- Technology & Semiconductor
- Water & Wastewater
The BW Clip operates maintenance-free for 2 or 3 years depending on the gas type and model, after which the instrument is disposed of and replaced.
Hibernation mode is available on the 2-year H2S and CO models. When the device won't be used for 7 days or longer, it can be placed in a dedicated hibernation case, pausing the operating life countdown for up to 12 months, effectively extending the device's usable life within a 24-month total detector operation limit.
No. The BW Clip operates maintenance-free with no calibration, sensor replacement or battery charging required for the life of the instrument.
SureCell is Honeywell's unique dual reservoir sensor design, offering improved performance, faster response time and greater longevity compared to traditional electrochemical sensors, even under harsh environmental conditions.
Yes. The BW Clip works with both the MicroDock II and IntelliDoX instrument management systems for fast, accurate bump testing and fleet record keeping.
Yes. High and low alarm set points can be configured before activation and adjusted as needed using the IntelliDoX system.
